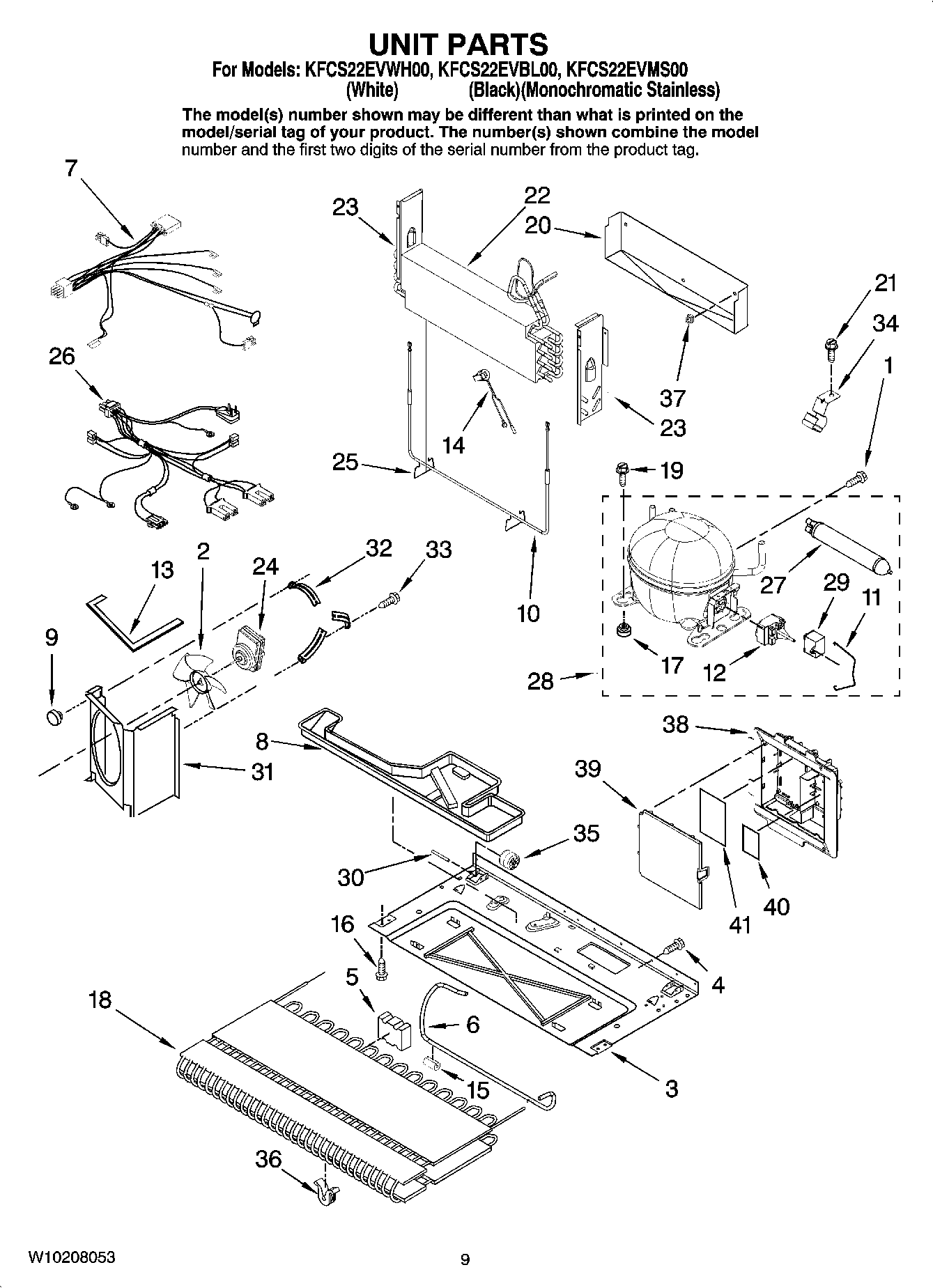

KFCS22EVWH00 05 – UNIT PARTS

KFCS22EVWH00 05 – UNIT PARTS

Written by

in

KFCS22EVWH00 05 – UNIT PARTS

Products

PositionProduct
WP978025 Whirlpool Refrigerator Valve
Following Parts Not Illustrated and Optional Parts Not Included
VALVE, ACCESS (1/2“)
REFRIGERANT CHARGE 5.0 Ozs. (R-134A)
978030 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
978026 Whirlpool Refrigerator Primary Valve
876764 Whirlpool Refrigerator Primary Valve
VALVE, ACCESS (5/8“)
112992301 Whirlpool Refrigerator Screw
2W10156818 Whirlpool Refrigerator Fan Blade
3Basepan
467006425 Whirlpool Refrigerator Screw
5Block, Condenser
6TUBE, DISCHARGE
7Harness, Evap. Heater
8WP12579803 Whirlpool Refrigerator Drain Pan
9Grommet (3)
10W10825088 Whirlpool Refrigerator Defrost Heater W10836434
11W10136415 Whirlpool Clip
12WPW10197428 Whirlpool Start Device
13W11451451 Whirlpool Refrigerator Gasket
14WPW10165425 Whirlpool Bimetal Defrost Thermostat
1567005680 Whirlpool Refrigerator Condenser Grommet
16Screw (4)
17WPW10169124 Whirlpool Refrigerator Grommet
18WP67006131 Whirlpool Refrigerator Condenser
1912846902 Whirlpool Refrigerator Screw
20W11547653 Whirlpool Refrigerator Drip Tray
21WP33001882 Whirlpool Screw
2212002041 Whirlpool Refrigerator Evaporator Replacement Kit
23Dam (Left Side)
23Dam (Right Side)
24Motor, Fan
25W11673433 Whirlpool Clip
26Harness, Unit with Power Cord
27WPW10143759 Whirlpool Dryer Filter
28W10160407 Whirlpool Refrigerator Compressor
29WPW10662129 Whirlpool Refrigerator Run Capacitor
3067006434 Whirlpool Axle Pin
31Shroud, Condenser
32WP67004953 Whirlpool Refrigerator Bracket
33WP67004954 Whirlpool Refrigerator Screw
3410547003 Whirlpool Refrigerator Dryer Clip
35WP67005149 Whirlpool Roller
36WPW10137529 Whirlpool Refrigerator Grommet
37CLIP, EVAPORATOR MOTOR
38BOX, HV CONTROL
39W11226688 Whirlpool Refrigerator Cover
40WPW10356039-includeCORE Whirlpool WPW10356039 Refrigerator Electronic Control Board + Core
41WPW10120827 Whirlpool Dryer Electronic Control Board + Core
