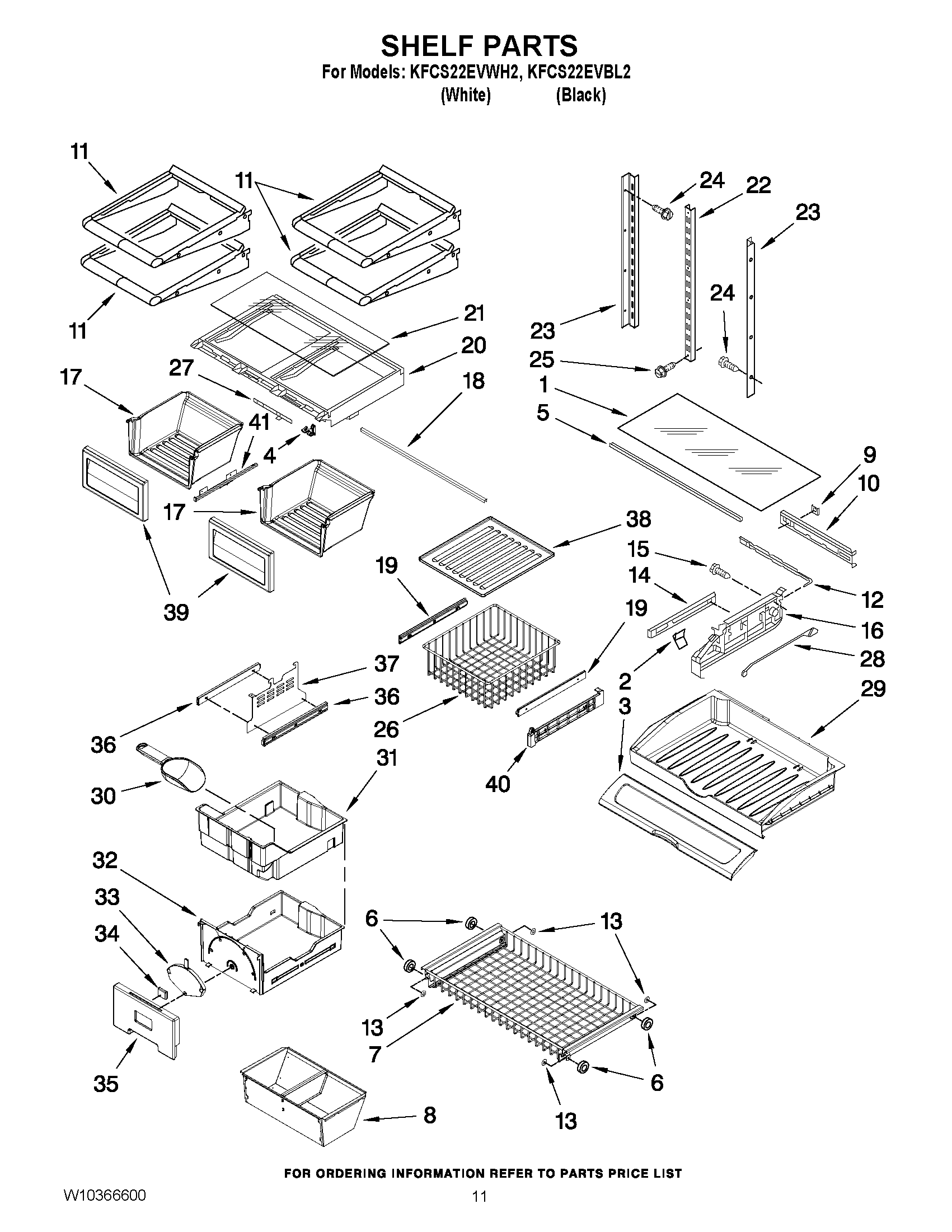

KFCS22EVWH2 06 – SHELF PARTS

KFCS22EVWH2 06 – SHELF PARTS

Written by

in

KFCS22EVWH2 06 – SHELF PARTS

Products

Position	Product
1	WP67002332 Whirlpool Refrigerator Glass Pan
2	W11498983 Whirlpool Refrigerator Knob
3	WP12656822 Whirlpool Refrigerator Pantry Drawer Cover
4	W10119222 Whirlpool Refrigerator Control Knob
5	WP12227305WD Whirlpool Drawer Support
6	W11214482 Whirlpool Refrigerator Roller
7	WPW10119854 Whirlpool Refrigerator Freezer Basket
8	W10144706 Whirlpool Refrigerator Freezer Bin
9	67002329 Whirlpool Refrigerator Pantry Gasket
10	12656202 Whirlpool Refrigerator Housing
11	Shelf, Stationary
12	WP67003793 Whirlpool Refrigerator Temperature Slide
13	2207415 Whirlpool Refrigerator Nut
14	W10132652 Whirlpool Refrigerator Glide
14	WPW10132653 Whirlpool Refrigerator Glide
15	WP98165 Whirlpool Screw
16	WPW10122078 Whirlpool Endcap Assembly
16	WPW10121977 Whirlpool End Cap
17	W10119219 Whirlpool Refrigerator Crisper Pan
18	W10490807 Whirlpool Refrigerator Support
19	WPW10170836 Whirlpool Refrigerator Glide
20	WPW10119215 Whirlpool Refrigerator Frame
21	WP12204827 Whirlpool Refrigerator Glass Shelf
22	W10273463 Whirlpool Refrigerator Ladder
23	W10251971 Whirlpool Ladder Assembly
24	67006425 Whirlpool Refrigerator Screw
25	W10709795 Whirlpool Refrigerator Screw
26	W10120003 Whirlpool Refrigerator Freezer Basket
27	W10119217 Whirlpool Refrigerator Slide
28	67003794 Whirlpool Refrigerator Temperature Control Bar
29	WP12655703 Whirlpool Refrigerator Utility Pan
30	W10182881 Whirlpool Refrigerator Scoop
31	W10120005 Whirlpool Refrigerator Ice Pan
32	WPW10120008 Whirlpool Refrigerator Ice Pan
33	W10184030 Whirlpool Refrigerator Dispenser Arm
34	W11175810 Whirlpool Refrigerator Door Magnet
35	WPW10174720 Whirlpool Refrigerator Front Pan
36	WPW10170835 Whirlpool Refrigerator Glide
37	WPW10170987 Whirlpool Refrigerator Glide
38	WPW10451455 Whirlpool Refrigerator Mat
39	W10119220 Whirlpool Refrigerator Front Panel
40	W10163084 Whirlpool Refrigerator Bracket
40	W10163087 Whirlpool Refrigerator Bracket
41	2302953 Whirlpool Refrigerator Slide
41	2302952 Whirlpool Refrigerator Slide
