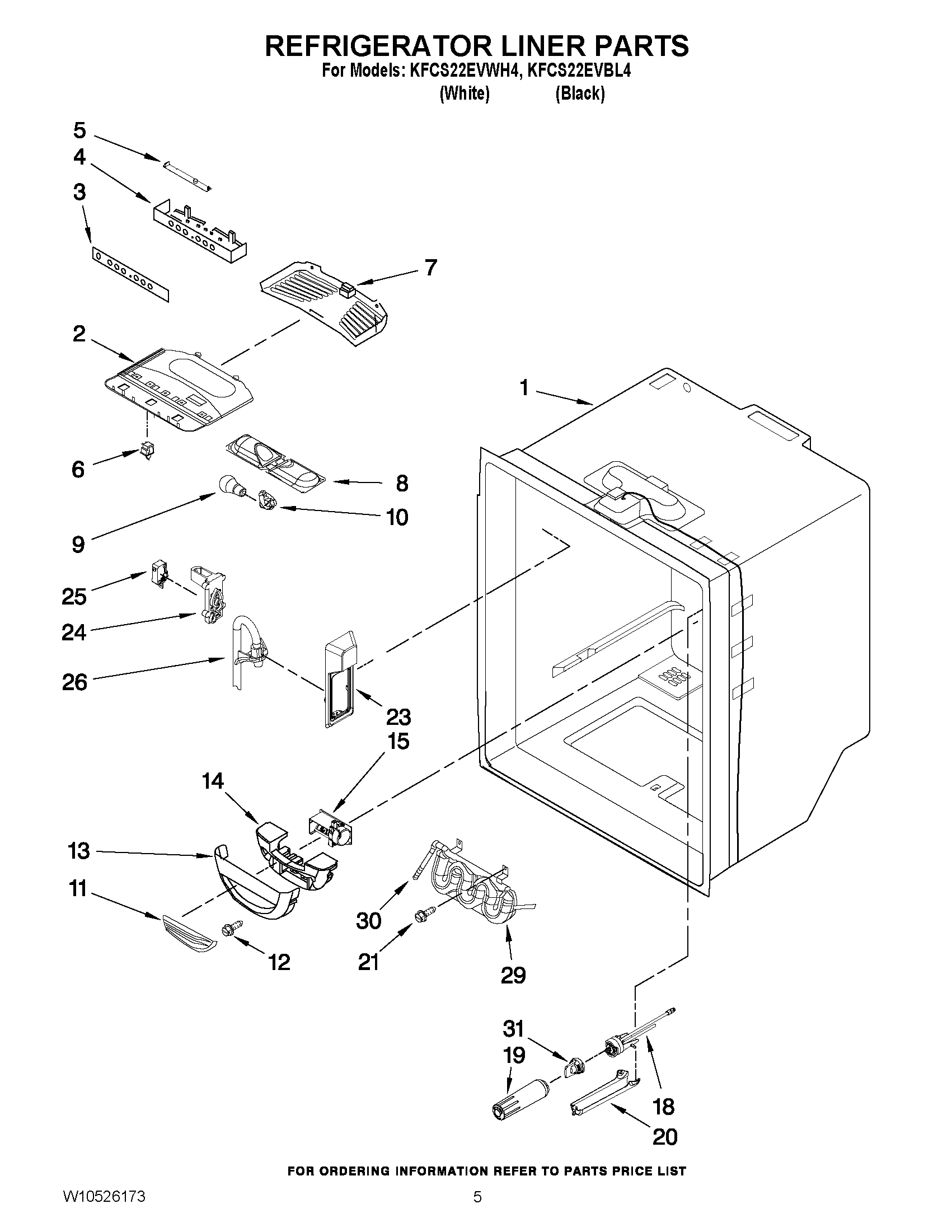

KFCS22EVWH4 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	W11084235 Whirlpool Refrigerator Wire Harness
1	CABINET (NOT A SERVICEABLE PART)
2	W10464766 Whirlpool Refrigerator Housing Assembly
3	OVERLAY
4	W11416469 Whirlpool Refrigerator Housing
5	WPW10116216-includeCORE Whirlpool WPW10116216 Refrigerator Electronic Control Board + Core
6	W11291138 Whirlpool Refrigerator Door Switch
7	W11284721 Whirlpool Refrigerator Cover
8	W10443023 Whirlpool Refrigerator Housing
9	W11679940 Whirlpool Refrigerator Light Bulb Assembly
10	W11447232 Whirlpool Refrigerator Socket
11	67003900 Whirlpool Refrigerator Insert Damper Cover
12	WP400021-1 Whirlpool Screw
13	WP12806701 Whirlpool Refrigerator Box Cover
14	INSULATION
15	CONTROL DAMPER
18	W11346623 Whirlpool Refrigerator Water Filter Head
19	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
20	WP12568001 Whirlpool Filter Cover
21	WP98165 Whirlpool Screw
24	W11243624 Whirlpool Refrigerator Cover
25	WP12575502 Whirlpool Refrigerator Switch
26	W10117324 Whirlpool Refrigerator Ice Guide
29	W11361728 Whirlpool Reservoir Assembly
30	WP2300868 Whirlpool Refrigerator Fitting
31	W11395888 Whirlpool Refrigerator Bypass Filter Cap
