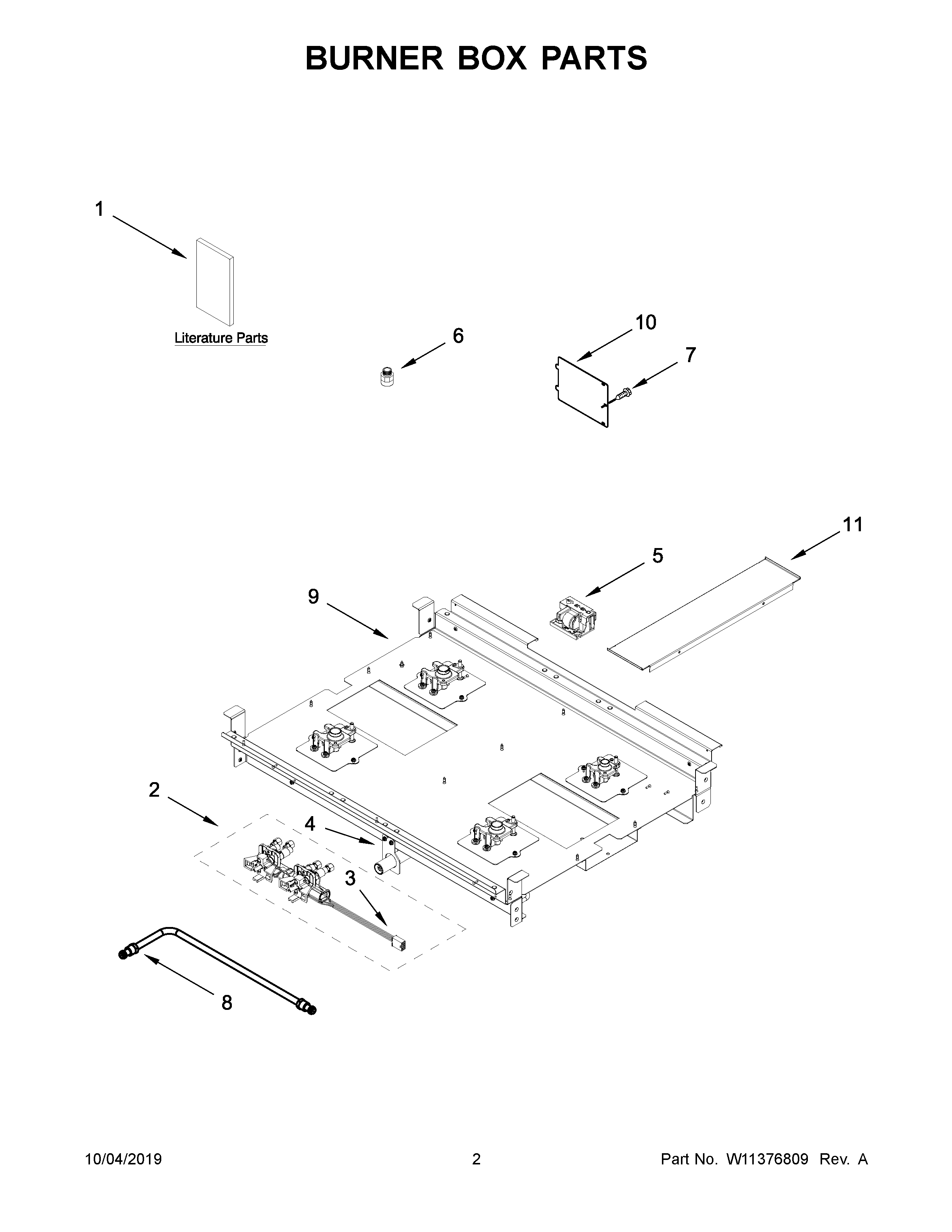

KFDC500JAV00 02 – BURNER BOX PARTS

Products

Position	Product
NI	W11200301 Whirlpool Wire Harness
NI	HARNESS, COOKTOP
NI	W11502161 Whirlpool Conversion Kit
NI	CORD, POWER
NI	WP9759877 Whirlpool Retainer
NI	W11317791 Whirlpool Wire Harness
NI	W11200325 Whirlpool Wire Harness
NI	W10780278 Whirlpool Wire Harness
NI	9757778 Whirlpool Oven Bushing
NI	CABINET (NOT A SERVICEABLE PART)
NI	4450800 Whirlpool Oven Screw
NI	SCREW, ANTI-TIP KIT
NI	W11544575 Whirlpool Anti-Tip Bracket
1	GUIDE, USE AND CARE
1A	INSTRUCTIONS, INSTALLATION
1D	DIAGRAM, WIRING (OVEN)
1C	DIAGRAM, WIRING (COOKTOP)
1F	GUIDE, QUICK START
1E	SHEET, TECH
1B	GUIDE, INTERNET CONNECTIVITY
2A	W11378579 Whirlpool Manifold
2	W11378578 Whirlpool Manifold
3	W11344433 Whirlpool Wire Harness
4	W11320153 Whirlpool Mounting Bracket
5	W11319687 Whirlpool Spark Module
6	4453116 Whirlpool Oven Adapter
7	SCREW
8A	TUBE, MANIFOLD SUPPLY (RIGHT)
8	TUBE, MANIFOLD SUPPLY (LEFT)
10	W10115843 Whirlpool Access Cover
11	FILLER, COOKTOP
