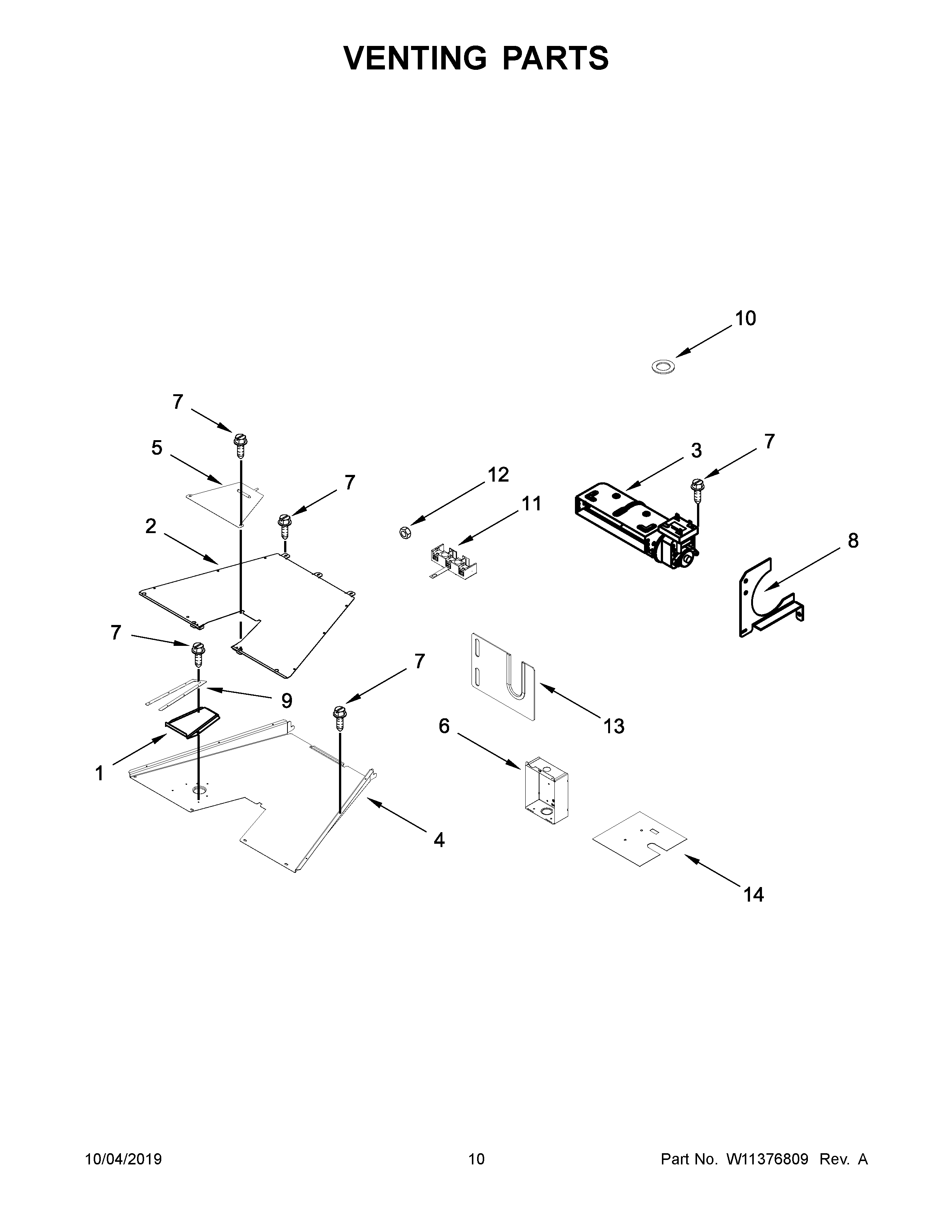

KFDC500JAV00 06 – VENTING PARTS

Products

PositionProduct
1SLOPE, EXHAUST VENT (30")
2VENT, COOLING TOP (30 IN)
3W11248652 Whirlpool Blower
4VENT, COOLING BOTTOM (30 IN)
5PLATE, COOLING LATCH
6W10467022 Whirlpool Box Terminal
7SCREW
8BRACKET, BLOWER MOUNT
9W10270397 Whirlpool Vent Seal
10SEAL, CHIMNEY
11WP9761958 Whirlpool Range Terminal Block
12WP112432 Whirlpool Nut Assembly
13COVER, CHANNEL
149759721 Whirlpool Oven Insulator
