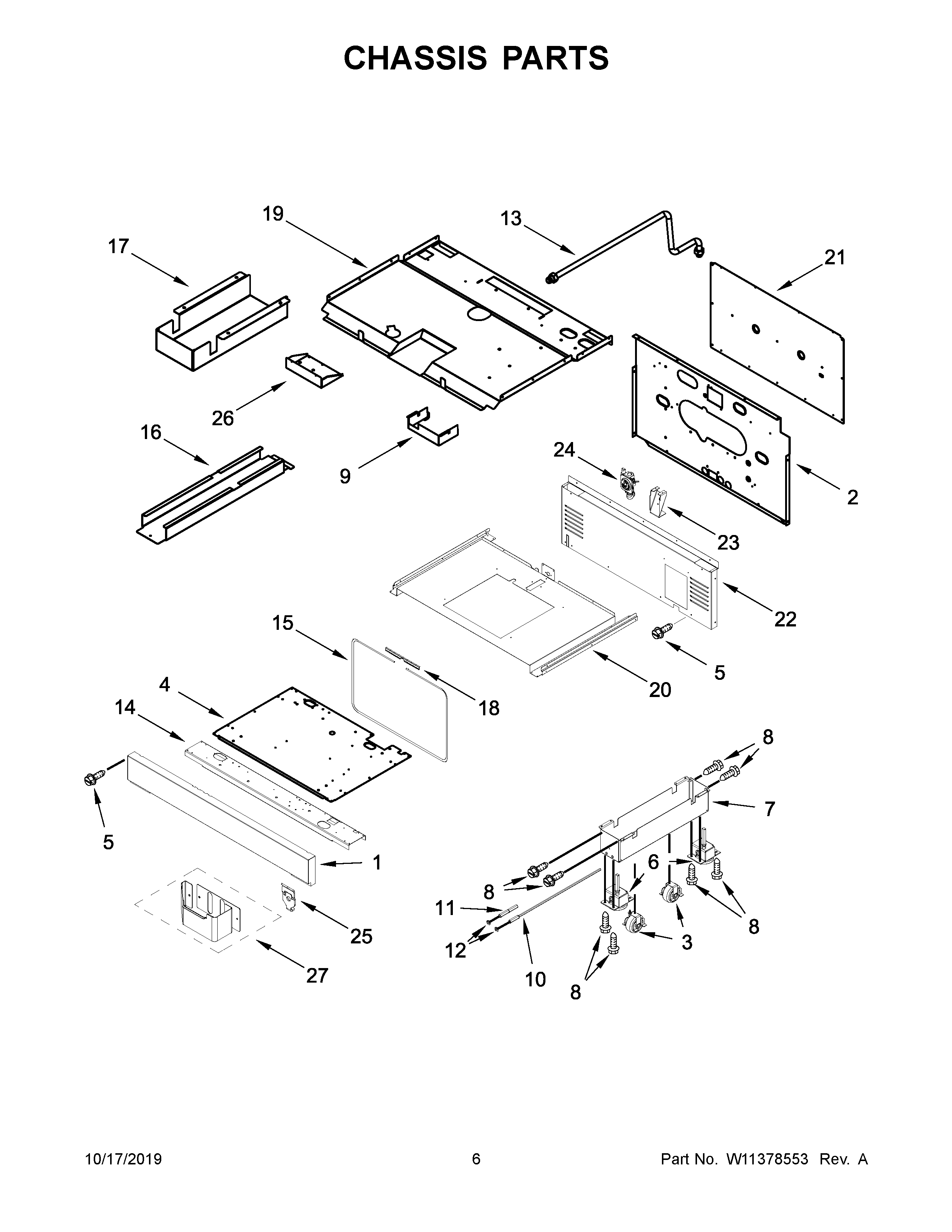

KFDC500JIB00 04 – CHASSIS PARTS

Products

Position	Product
1	W11380865 Whirlpool Cover Plate
2	BACK, CHASSIS
3	WPW10138054 Whirlpool Refrigerator Cabinet Roller
4	DUCT, BOTTOM (30 IN)
5	SCREW
6	W10859931 Whirlpool Foot Level
7	W10908710 Whirlpool Mounting Bracket
8	WP4449743 Whirlpool Screw
9	CABINET, APPLIANCE MANAGER
10	W10115869 Whirlpool Shaft
11	W10115793 Whirlpool Shaft
12	489504 Whirlpool Oven Ring
13	W11320154 Whirlpool Range Gas Tubing
14	SUPPORT, CHANNEL
15	W11675844 Whirlpool Oven Gasket
16	W11050145 Whirlpool HVAC Air Duct
17	CHANNEL, WIRE
18	W11362015 Whirlpool Retainer
19	TOP, CHASSIS
20	CHASSIS, BOTTOM
21	PANEL, BACK TOP
22	PANEL, BACK BOTTOM
23	W11320155 Whirlpool Mounting Bracket
24	W11106948 Whirlpool Pressure Regulator
25	W11318207 Whirlpool Clip Assembly
26	DRAWER, APPLIANCE MANAGER
27	W11199181 Whirlpool Foot Cover
27A	W11199178 Whirlpool Foot Cover Assembly
