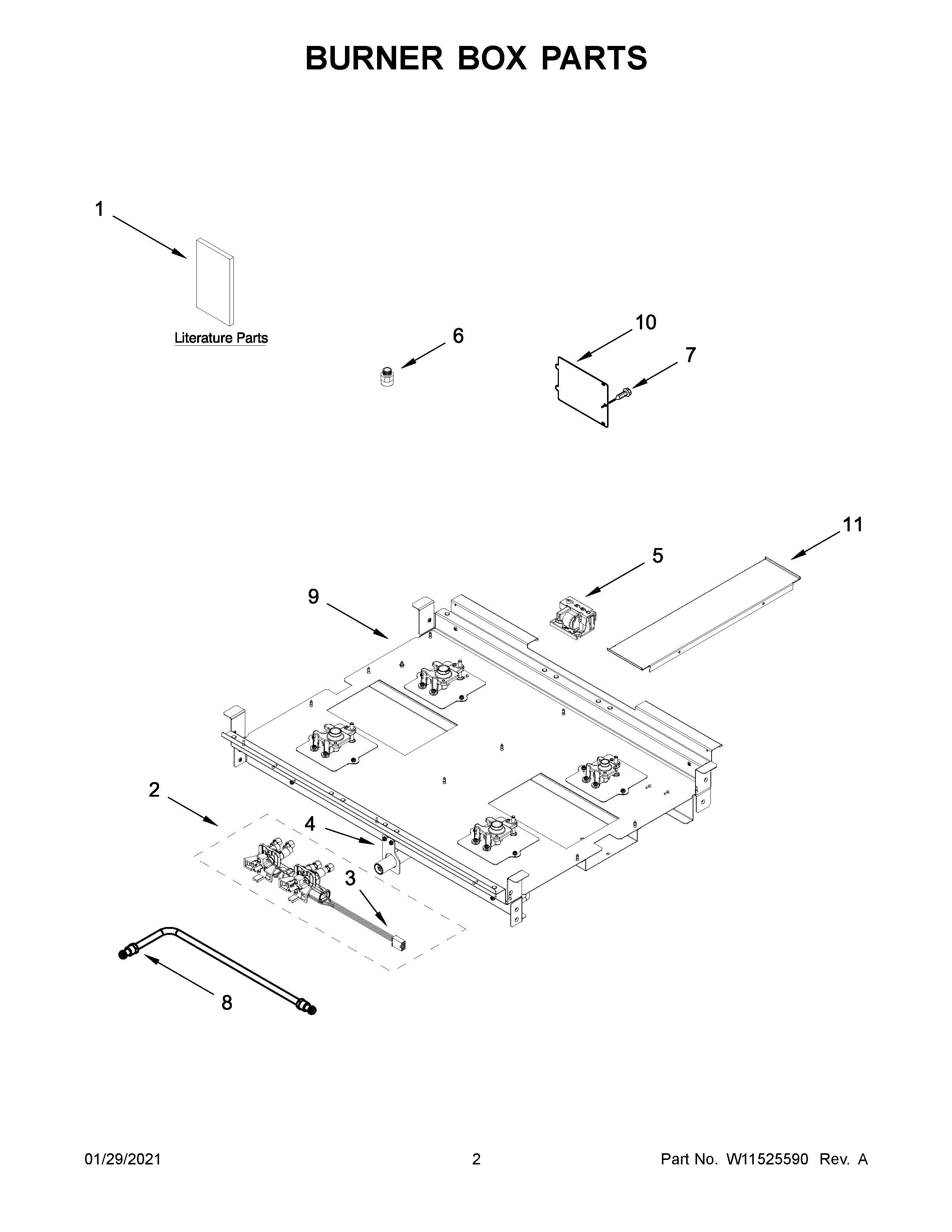

KFDC500JIB01 02 – BURNER BOX PARTS

KFDC500JIB01 02 – BURNER BOX PARTS

Written by

in

KFDC500JIB01 02 – BURNER BOX PARTS

Products

PositionProduct
NIW11200301 Whirlpool Wire Harness
NIHARNESS, COOKTOP
NIW11502161 Whirlpool Conversion Kit
NICORD, POWER
NIWP9759877 Whirlpool Retainer
NIW11317791 Whirlpool Wire Harness
NIW11200325 Whirlpool Wire Harness
NIW10780278 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
NIW11544575 Whirlpool Anti-Tip Bracket
NISCREW, ANTI-TIP KIT
1DDIAGRAM, WIRING (OVEN)
1BGUIDE, INTERNET CONNECTIVITY
1AINSTRUCTIONS, INSTALLATION
1CDIAGRAM, WIRING (COOKTOP)
1FGUIDE, QUICK START
1ESHEET, TECH
1GUIDE, USE AND CARE
2W11378578 Whirlpool Manifold
2AW11378579 Whirlpool Manifold
3W11344433 Whirlpool Wire Harness
4W11320153 Whirlpool Mounting Bracket
5W11319687 Whirlpool Spark Module
64453116 Whirlpool Oven Adapter
7SCREW
8TUBE, MANIFOLD SUPPLY (LEFT)
8ATUBE, MANIFOLD SUPPLY (RIGHT)
10W10115843 Whirlpool Access Cover
11FILLER, COOKTOP
