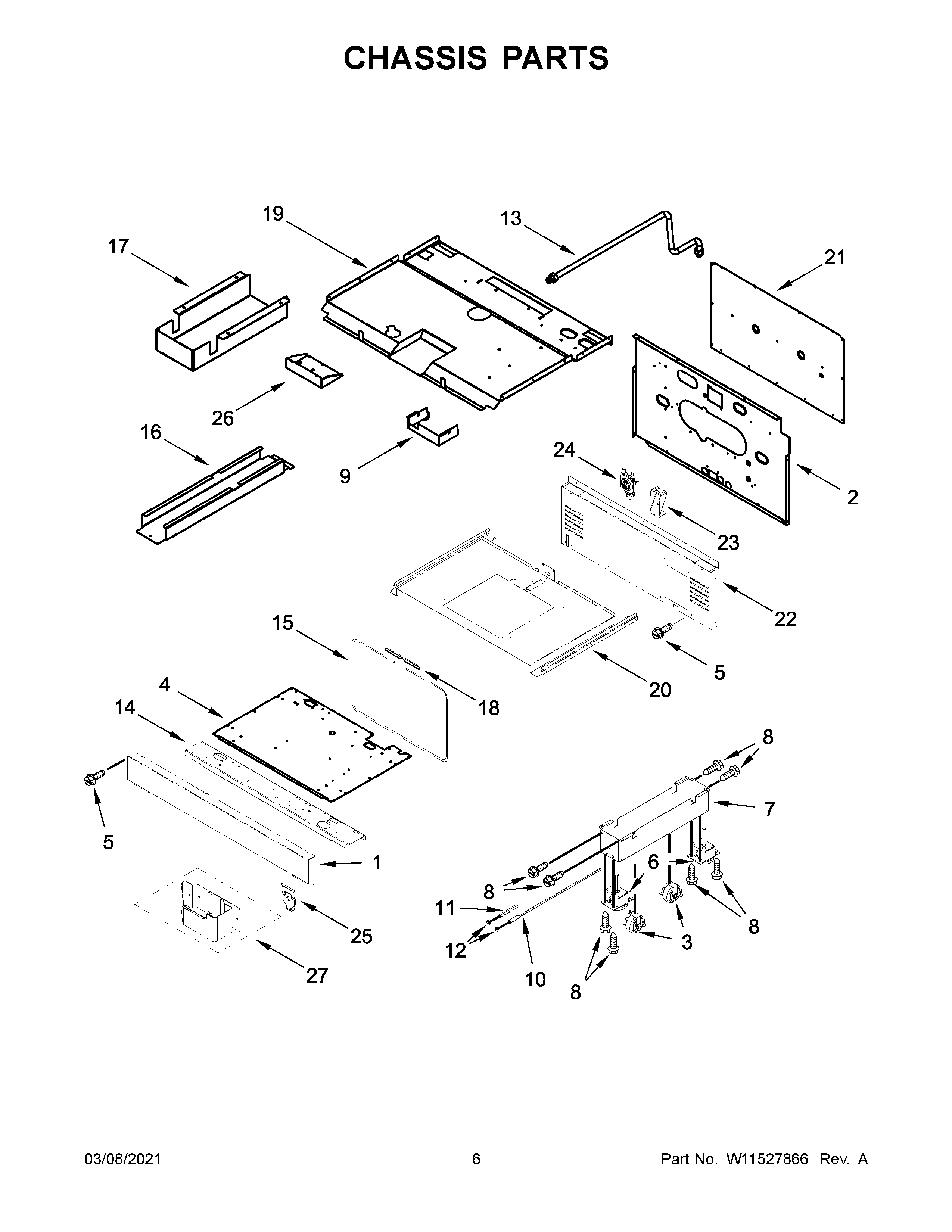

KFDC500JPA01 04 – CHASSIS PARTS

Products

PositionProduct
1W11380868 Whirlpool Cover Plate
2BACK, CHASSIS
3WPW10138054 Whirlpool Refrigerator Cabinet Roller
4DUCT, BOTTOM (30 IN)
5SCREW
6W10859931 Whirlpool Foot Level
7W10908710 Whirlpool Mounting Bracket
8WP4449743 Whirlpool Screw
9CABINET, APPLIANCE MANAGER
10W10115869 Whirlpool Shaft
11W10115793 Whirlpool Shaft
12489504 Whirlpool Oven Ring
13W11320154 Whirlpool Range Gas Tubing
14SUPPORT, CHANNEL
15W11675844 Whirlpool Oven Gasket
16W11050145 Whirlpool HVAC Air Duct
17CHANNEL, WIRE
18W11362015 Whirlpool Retainer
19TOP, CHASSIS
20CHASSIS, BOTTOM
21PANEL, BACK TOP
22PANEL, BACK BOTTOM
23W11320155 Whirlpool Mounting Bracket
24W11106948 Whirlpool Pressure Regulator
25W11318207 Whirlpool Clip Assembly
26DRAWER, APPLIANCE MANAGER
27AW11199178 Whirlpool Foot Cover Assembly
27W11199181 Whirlpool Foot Cover
