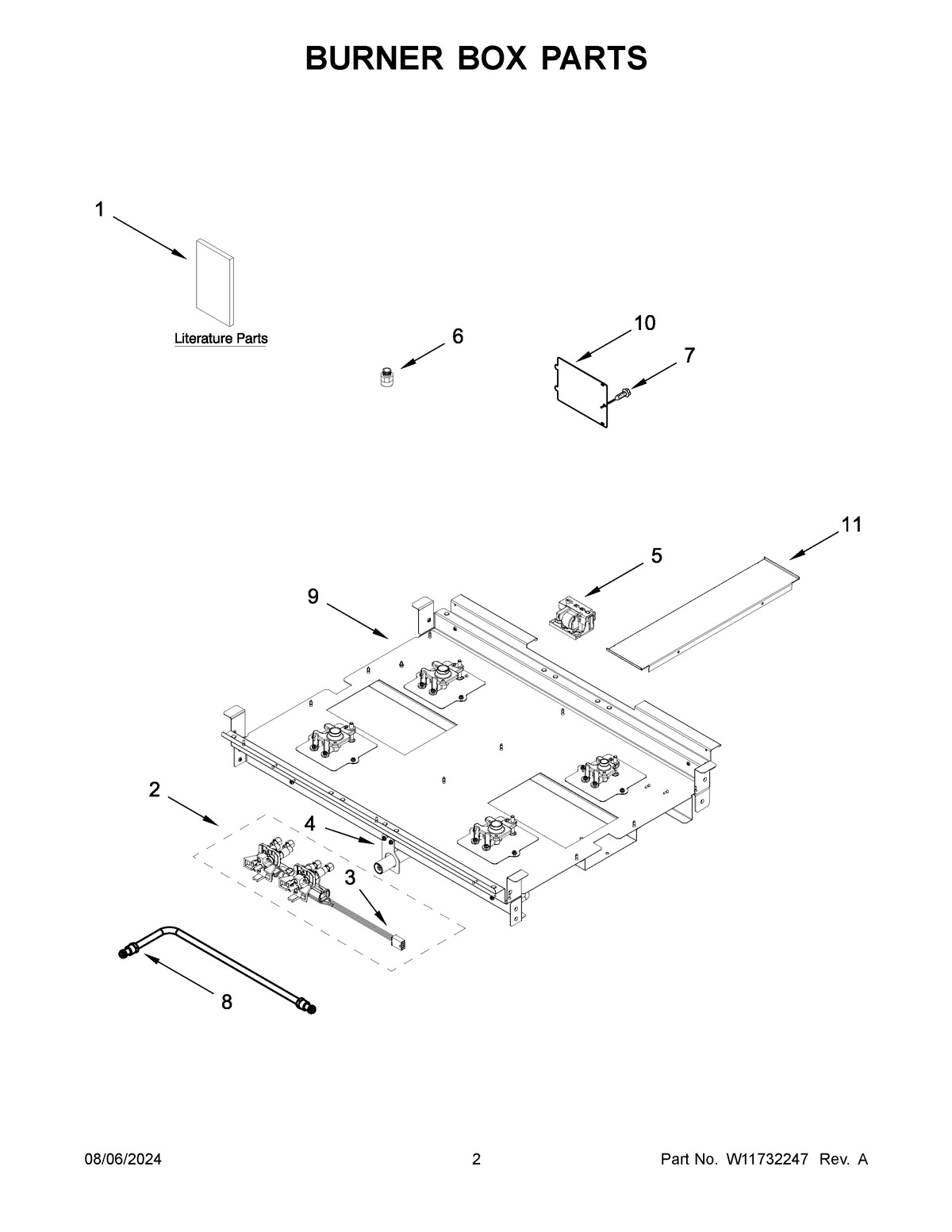

KFDC500JPA03 02 – BURNER BOX PARTS

Products

Position	Product
NI	HARNESS, COOKTOP
NI	W11502161 Whirlpool Conversion Kit
NI	CORD, POWER
NI	W11200301 Whirlpool Wire Harness
NI	WP9759877 Whirlpool Retainer
NI	W11317791 Whirlpool Wire Harness
NI	W11200325 Whirlpool Wire Harness
NI	W10780278 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	SCREW, ANTI-TIP KIT
NI	W11544575 Whirlpool Anti-Tip Bracket
1B	GUIDE, INTERNET CONNECTIVITY
1E	GUIDE, QUICK START
1	OWNER'S MANUAL
1C	WIRING DIAGRAM (COOKTOP)
1A	INSTALLATION INSTRUCTIONS
1D	WIRING DIAGRAM (OVEN)
2A	W11378579 Whirlpool Manifold
2	W11378578 Whirlpool Manifold
3	W11344433 Whirlpool Wire Harness
4	W11320153 Whirlpool Mounting Bracket
5	W11319687 Whirlpool Spark Module
6	4453116 Whirlpool Oven Adapter
7	SCREW
8A	TUBE, MANIFOLD SUPPLY (RIGHT)
8	TUBE, MANIFOLD SUPPLY (LEFT)
9	BOX, BURNER (NOT SERVICED)
10	W10115843 Whirlpool Access Cover
11	FILLER, COOKTOP
