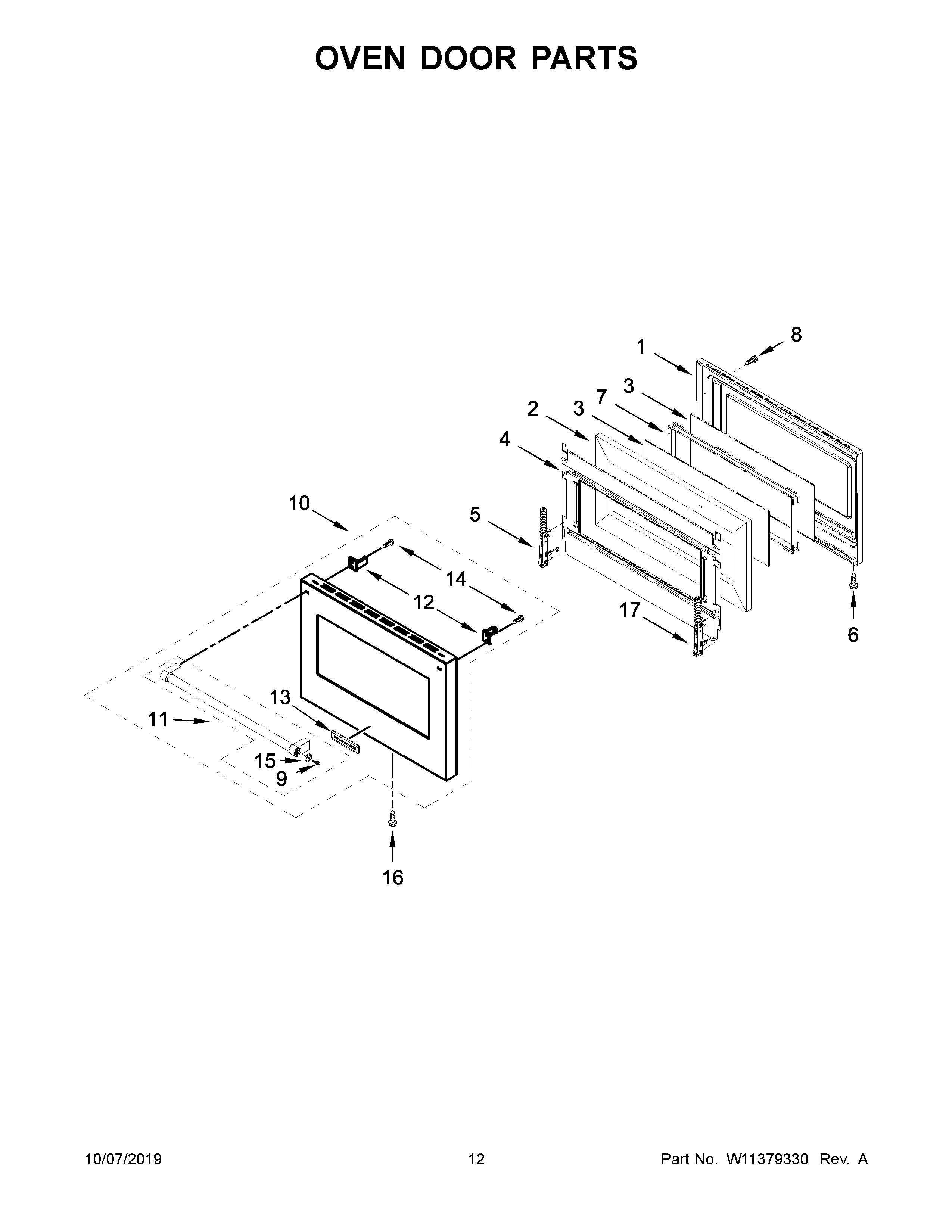

KFDC500JYP00 07 – OVEN DOOR PARTS

Products

Position	Product
1	W11318831 Whirlpool Glass Frame
2	INSULATION, DOOR
3	W11318823 Whirlpool Door Glass
4	RETAINER, GLASS
5	W11643630 Whirlpool Door Hinge
6	W11193480 Whirlpool Screw
7	WPW10272594 Whirlpool Window Frame
8	W11712404 Whirlpool Screw
9	W10920281 Whirlpool Screw
10	W11381324 Whirlpool Door Glass Assembly
11	W11380863 Whirlpool Door Handle
12	BRACKET, HANDLE
13	W10839793 Whirlpool Refrigerator Nameplate
14	WPW10276043 Whirlpool Screw
15	W11368841SI Whirlpool Range Medallion
16	W10162096 Whirlpool Screw
17	W11643898 Whirlpool Door Hinge
