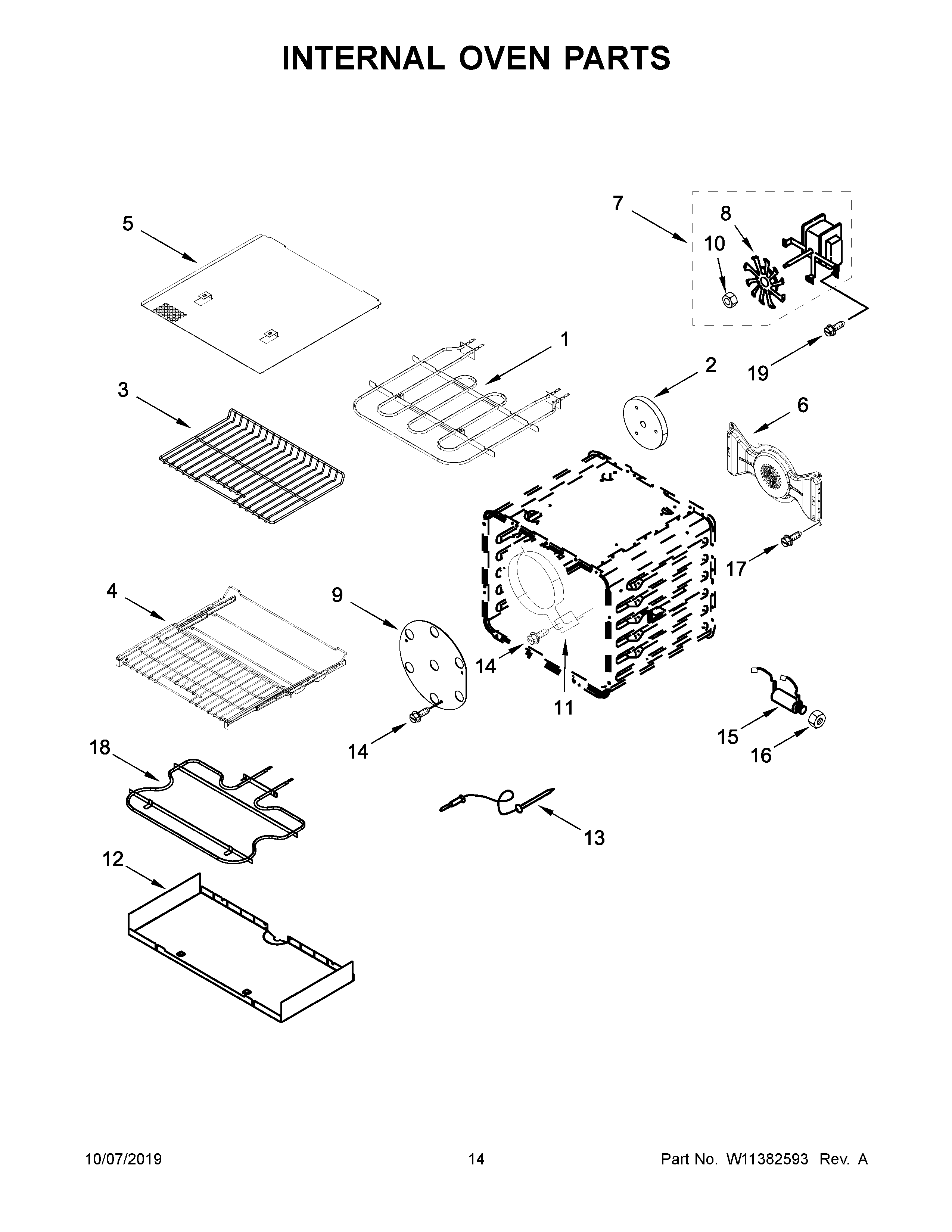

KFDC506JAV00 08 – INTERNAL OVEN PARTS

Products

Position	Product
1	W10115994 Whirlpool Broil Element
2	W11688507 Whirlpool Insulation
3	W10822069 Whirlpool Oven Rack
4	W11496903 Whirlpool Oven Rack
5	SHIELD, ELEMENT BROIL
6	W11662207 Whirlpool Convection Baffle
7	W10860984 Whirlpool Fan Motor
8	W10819914 Whirlpool Convection Fan
9	W10261523 Whirlpool Plate
10	W10794042 Whirlpool Nut
11	W11643125 Whirlpool Element
12	W11106922 Whirlpool Dishwasher Bake Tray
13	WP9755542 Whirlpool Oven Meat Probe
14	WP4449154 Whirlpool Screw
15	8186589 Whirlpool Jack Probe
16	W11231343 Whirlpool Lock Nut
17	SCREW
18	W10860270 Whirlpool Bake Element Assembly
19	W10850807 Whirlpool Screw
