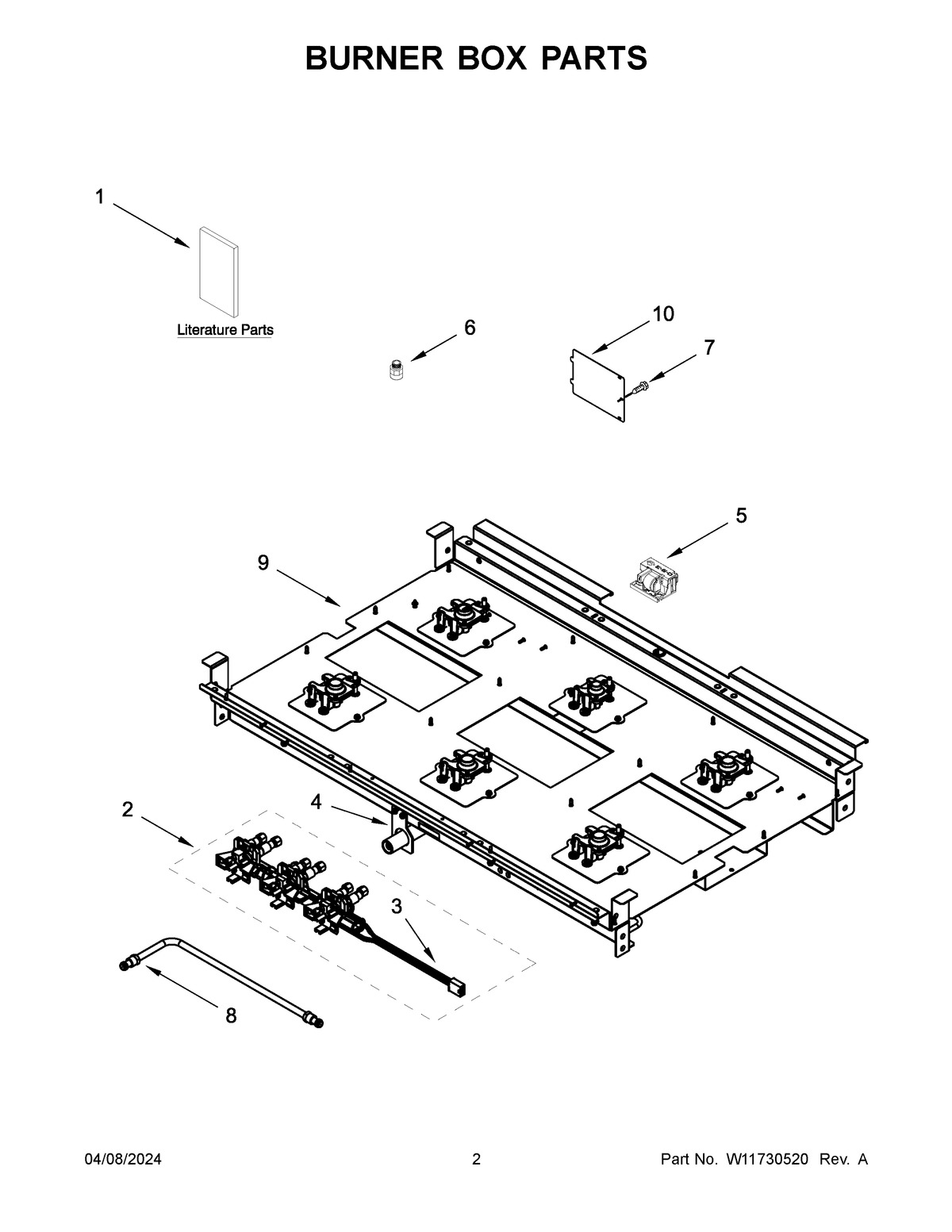

KFDC506JBK03 02 – BURNER BOX PARTS

Products

Position	Product
NI	CORD, POWER
NI	HARNS-WIRE
NI	W11502161 Whirlpool Conversion Kit
NI	WP9759877 Whirlpool Retainer
NI	HARNESS, COOKTOP
NI	W11317791 Whirlpool Wire Harness
NI	W11200325 Whirlpool Wire Harness
NI	W10780278 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	SCREW, ANTI-TIP KIT
NI	W11544575 Whirlpool Anti-Tip Bracket
NI	4450800 Whirlpool Oven Screw
1C	WIRING DIAGRAM (COOKTOP)
1E	GUIDE, QUICK START
1D	WIRING DIAGRAM (OVEN)
1	OWNER'S MANUAL
1A	INSTALLATION INSTRUCTIONS
1B	GUIDE, INTERNET CONNECTIVITY
2	W11384736 Whirlpool Manifold
2A	W11384739 Whirlpool Manifold
3	W10903729 Whirlpool Wire Harness
4	W11320153 Whirlpool Mounting Bracket
5	W11319687 Whirlpool Spark Module
6	4453116 Whirlpool Oven Adapter
7	SCREW
8	TUBE, MANIFOLD SUPPLY (LEFT)
8A	TUBE, MANIFOLD SUPPLY (RIGHT)
9	BOX, BURNER (NOT SERVICED)
10	W10115843 Whirlpool Access Cover
