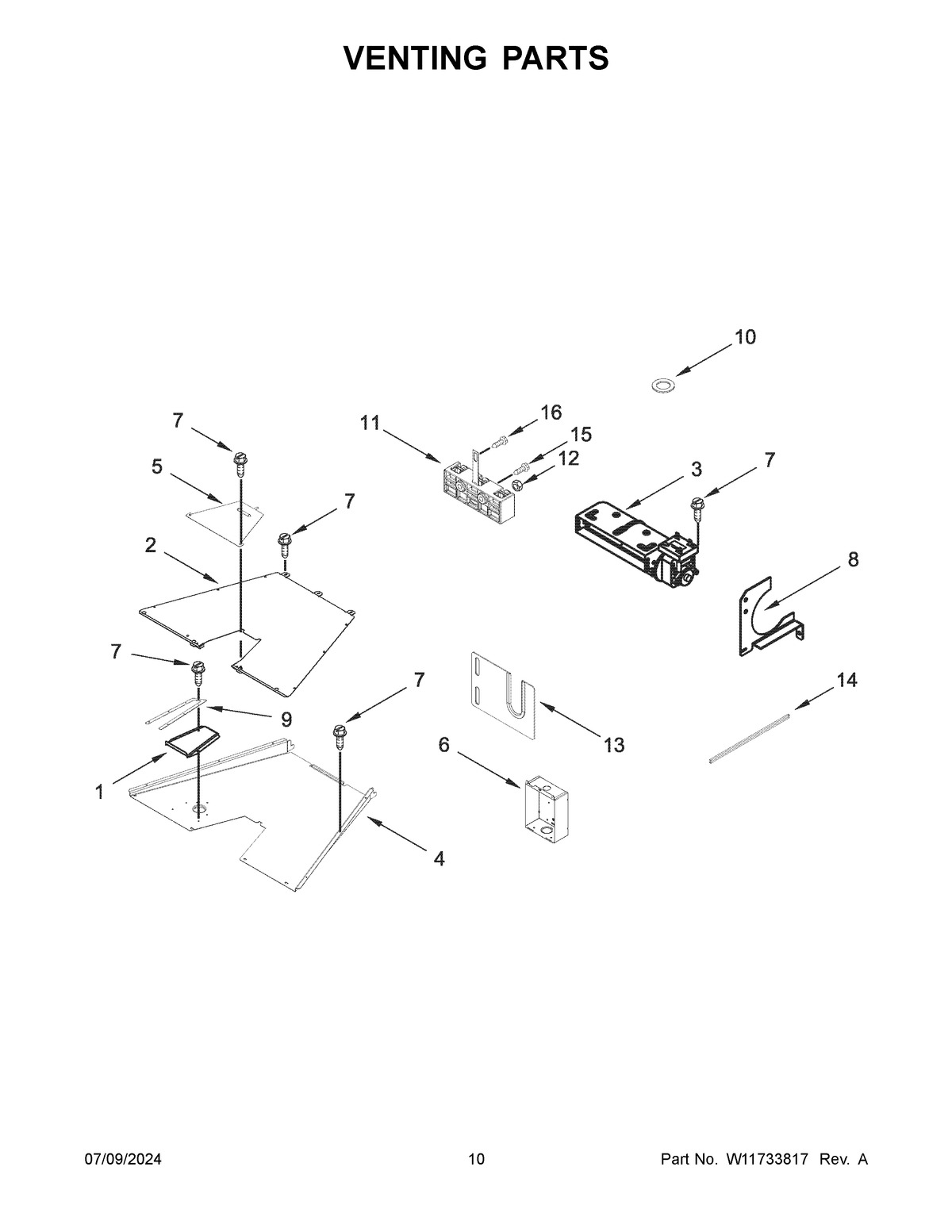

KFDC506JIB03 06 – VENTING PARTS

Products

PositionProduct
1SLOPE, EXHAUST VENT (30")
2VENT, COOLING TOP (30 IN)
3W11248652 Whirlpool Blower
4VENT, COOLING BOTTOM (30 IN)
5PLATE, COOLING LATCH
6BOX, TERMINAL
7SCREW
8BRACKET, BLOWER MOUNT
9W10270397 Whirlpool Vent Seal
10SEAL, CHIMNEY
11WP9761958 Whirlpool Range Terminal Block
12WP112432 Whirlpool Nut Assembly
13COVER, CHANNEL
14W11175143 Whirlpool Gasket
15WP3196163 Whirlpool Screw
16WP3400015 Whirlpool Screw
