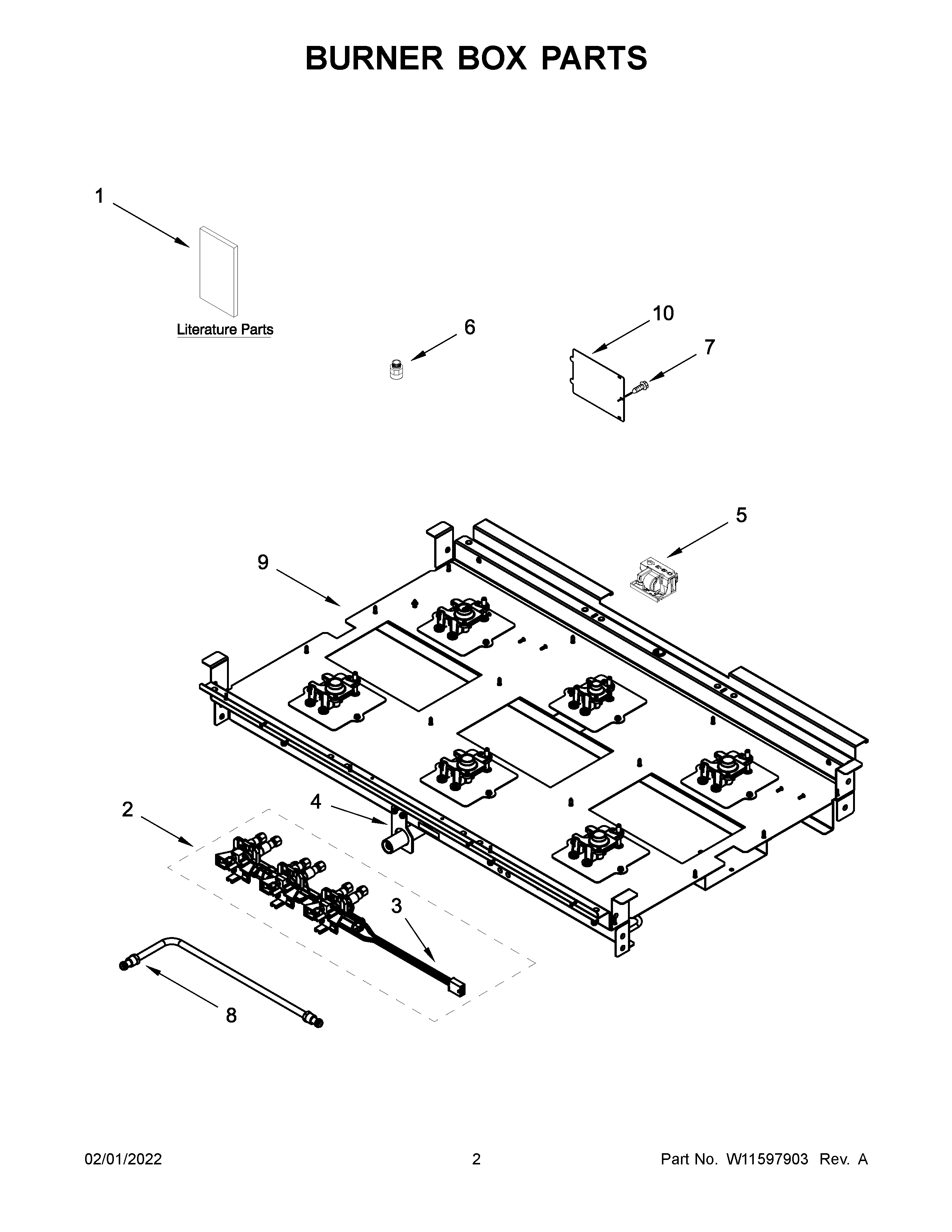

KFDC506JMH01 02 – BURNER BOX PARTSadmin2025-04-26T12:14:17+00:00KFDC506JMH01 02 – BURNER BOX PARTS
Products
| Position | Product |
|---|
| NI | CORD, POWER |
| NI | W11502161 Whirlpool Conversion Kit |
| NI | WP9759877 Whirlpool Retainer |
| NI | HARNESS, COOKTOP |
| NI | W11317791 Whirlpool Wire Harness |
| NI | W11200325 Whirlpool Wire Harness |
| NI | W10780278 Whirlpool Wire Harness |
| NI | HARNS-WIRE |
| NI | CABINET (NOT A SERVICEABLE PART) |
| NI | 4450800 Whirlpool Oven Screw |
| NI | 16515 Whirlpool Clip |
| NI | W11544575 Whirlpool Anti-Tip Bracket |
| NI | SCREW, ANTI-TIP KIT |
| 1A | INSTRUCTIONS, INSTALLATION |
| 1F | GUIDE, QUICK START |
| 1E | SHEET, TECH |
| 1D | DIAGRAM, WIRING (OVEN) |
| 1C | DIAGRAM, WIRING (COOKTOP) |
| 1 | GUIDE, USE AND CARE |
| 1B | GUIDE, INTERNET CONNECTIVITY |
| 2 | W11384736 Whirlpool Manifold |
| 2A | W11384739 Whirlpool Manifold |
| 3 | W10903729 Whirlpool Wire Harness |
| 4 | W11320153 Whirlpool Mounting Bracket |
| 5 | W11319687 Whirlpool Spark Module |
| 6 | 4453116 Whirlpool Oven Adapter |
| 7 | SCREW |
| 8 | TUBE, MANIFOLD SUPPLY (LEFT) |
| 8A | TUBE, MANIFOLD SUPPLY (RIGHT) |
| 10 | W10115843 Whirlpool Access Cover |
