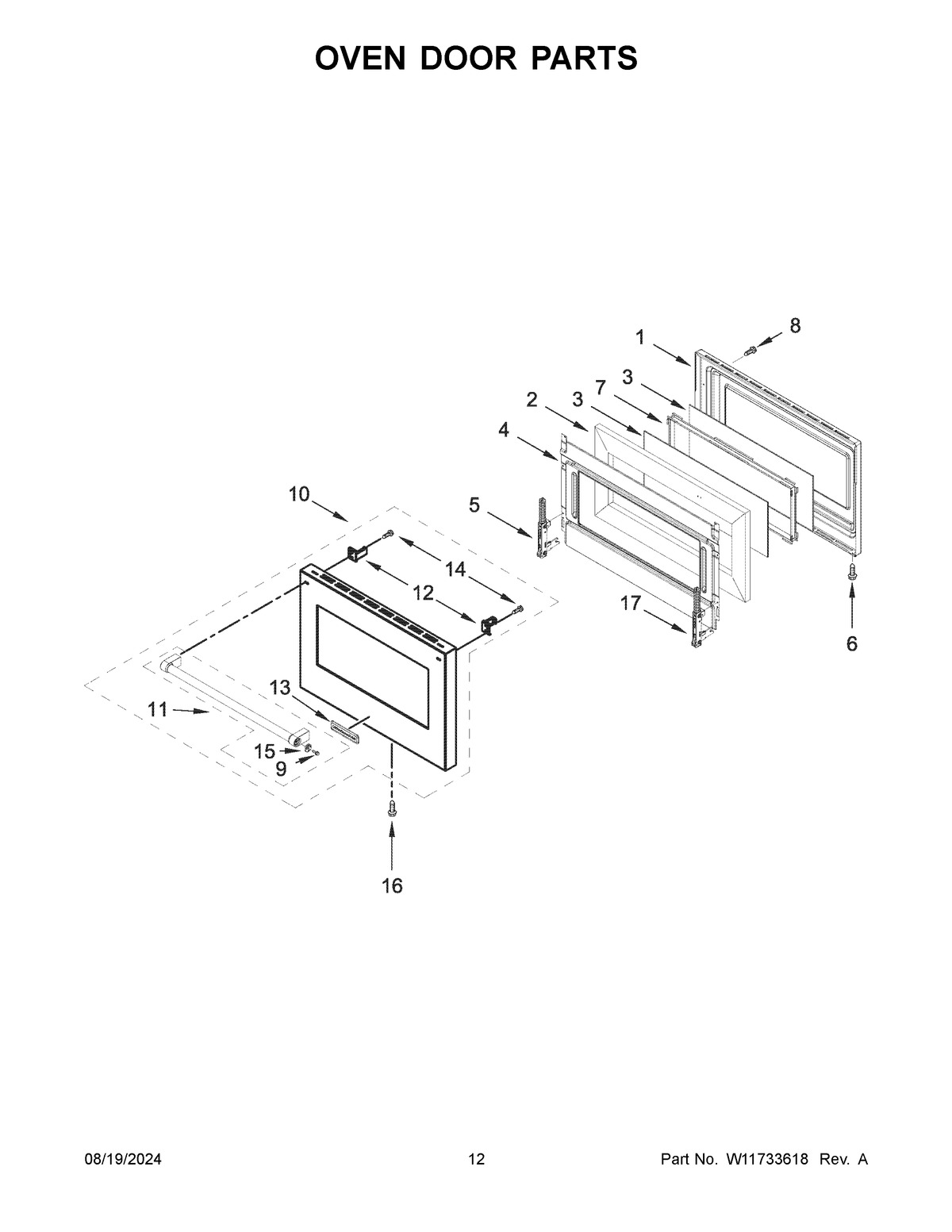

KFDC506JMH03 07 – OVEN DOOR PARTS

KFDC506JMH03 07 – OVEN DOOR PARTS

Written by

in

KFDC506JMH03 07 – OVEN DOOR PARTS

Products

PositionProduct
1W11334152 Whirlpool Glass Frame
2W11688331 Whirlpool Insulation
3W11334153 Whirlpool Door Glass
4W11194820 Whirlpool Retainer
5W11568941 Whirlpool Door Hinge Assembly
6W11193480 Whirlpool Screw
7W11194814 Whirlpool Window Frame
8W11712404 Whirlpool Screw
9W10920281 Whirlpool Screw
10OUTER DOOR ASSEMBLY (INCLUDES HANDLE)
11HANDLE ASSEMBLY
12BRACKET, HANDLE
13W10839793 Whirlpool Refrigerator Nameplate
14WPW10276043 Whirlpool Screw
15MEDALLION, HANDLE
16W10162096 Whirlpool Screw
17W11568813 Whirlpool Door Hinge
