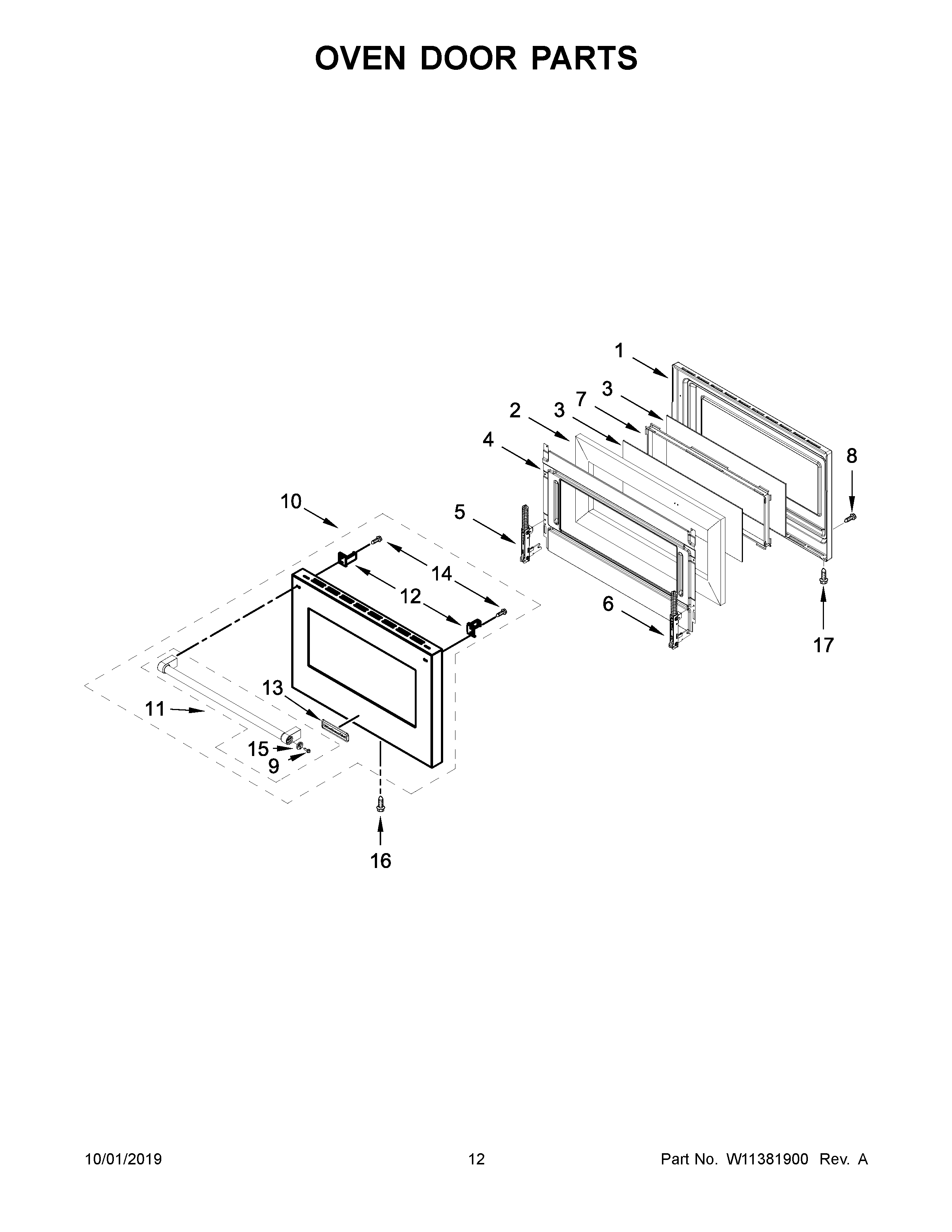

KFDC506JSS00 07 – OVEN DOOR PARTS

Products

Position	Product
1	W11334152 Whirlpool Glass Frame
2	W11688331 Whirlpool Insulation
3	W11334153 Whirlpool Door Glass
4	W11194820 Whirlpool Retainer
5	W11568941 Whirlpool Door Hinge Assembly
6	W11568813 Whirlpool Door Hinge
7	W11194814 Whirlpool Window Frame
8	W11712404 Whirlpool Screw
9	W10920281 Whirlpool Screw
10	W11385801 Whirlpool Door Glass
11	ASSEMBLY, DOOR HANDLE
12	BRACKET, HANDLE
13	W10839793 Whirlpool Refrigerator Nameplate
14	WPW10276043 Whirlpool Screw
15	W11368841RE Whirlpool Range Commercial-Style Handle Medallion Kit
16	W10162096 Whirlpool Screw
17	W11193480 Whirlpool Screw
