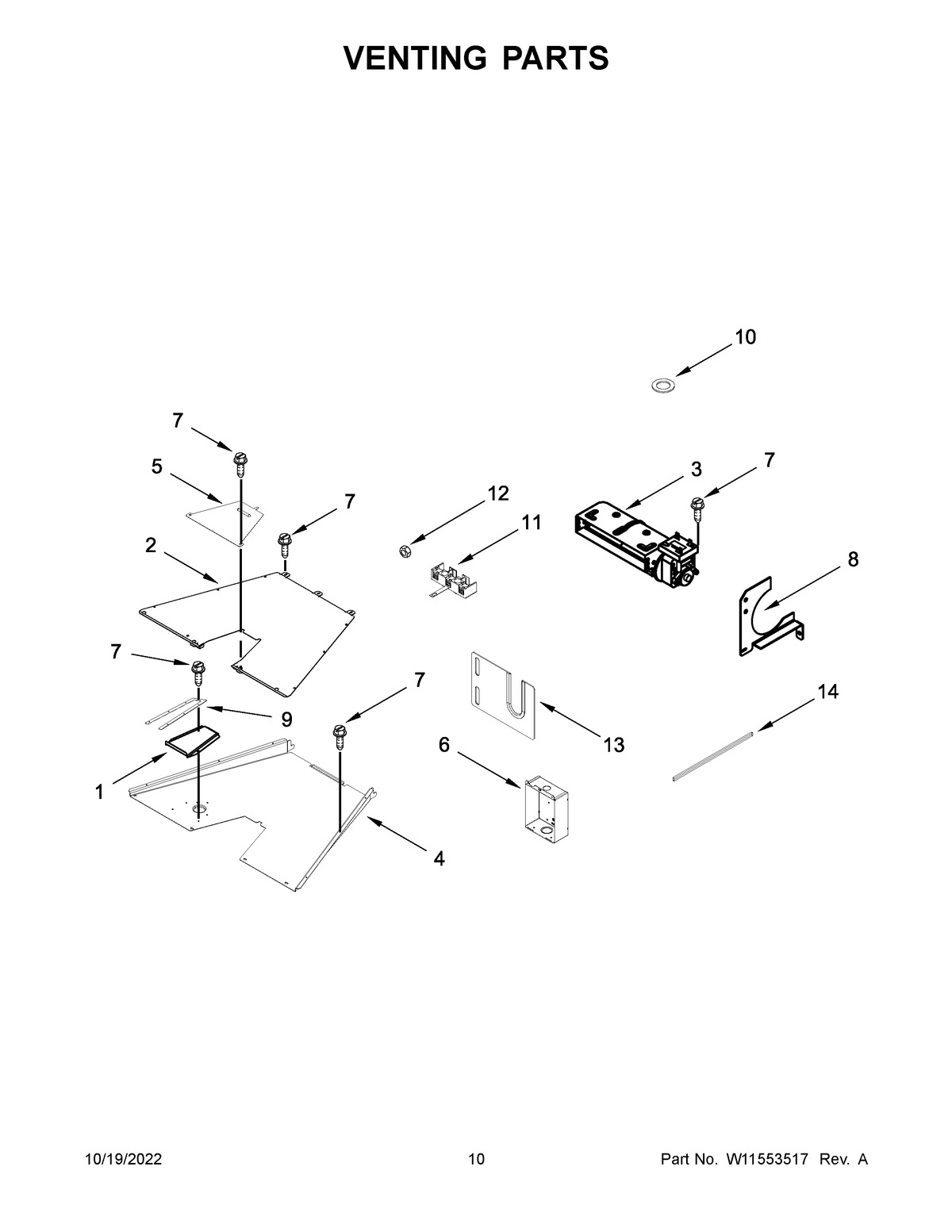

KFDC506JYP01 06 – VENTING PARTS

Products

Position	Product
1	SLOPE, EXHAUST VENT (30")
2	VENT, COOLING TOP (30 IN)
3	W11248652 Whirlpool Blower
4	VENT, COOLING BOTTOM (30 IN)
5	PLATE, COOLING LATCH
6	BOX, TERMINAL
7	SCREW
8	BRACKET, BLOWER MOUNT
9	W10270397 Whirlpool Vent Seal
10	SEAL, CHIMNEY
11	WP9761958 Whirlpool Range Terminal Block
12	WP112432 Whirlpool Nut Assembly
13	COVER, CHANNEL
14	W11175143 Whirlpool Gasket
