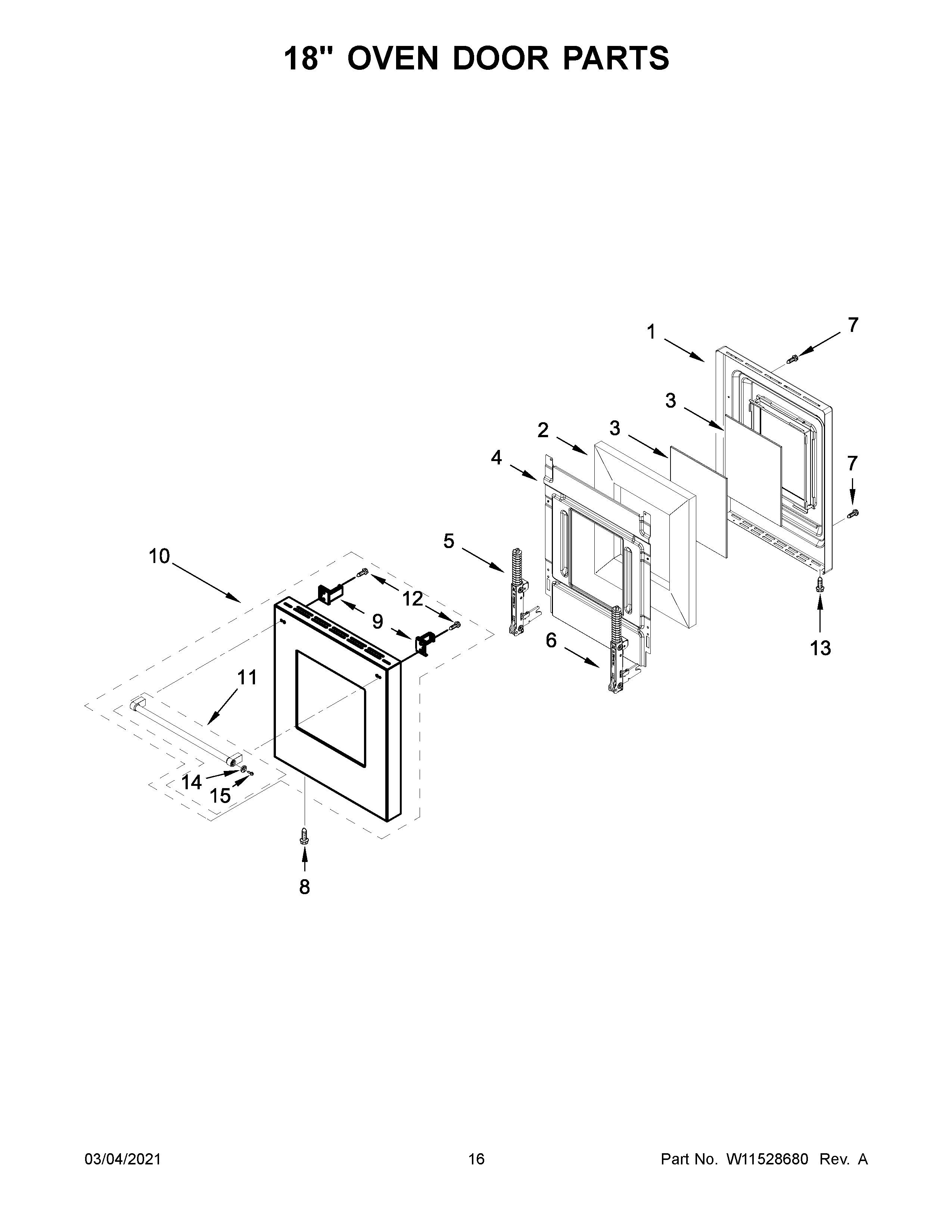

KFDC558JIB01 09 – 18″ OVEN DOOR PARTS

Products

Position	Product
1	W11318335 Whirlpool Glass Frame
2	INSULATION, DOOR
3	W11317951 Whirlpool Glass Door
4	RETAINER, GLASS
5	W11643896 Whirlpool Appliance Door Hinge
6	W11643900 Whirlpool Door Hinge
7	W11712404 Whirlpool Screw
8	W10162096 Whirlpool Screw
9	BRACKET, HANDLE
10	ASSEMBLY, OUTER DOOR (INCLUDES HANDLE)
11	W11512758 Whirlpool Door Handle Assembly
12	WPW10276043 Whirlpool Screw
13	W11193480 Whirlpool Screw
14	MEDALLION, HANDLE
15	W10920281 Whirlpool Screw
