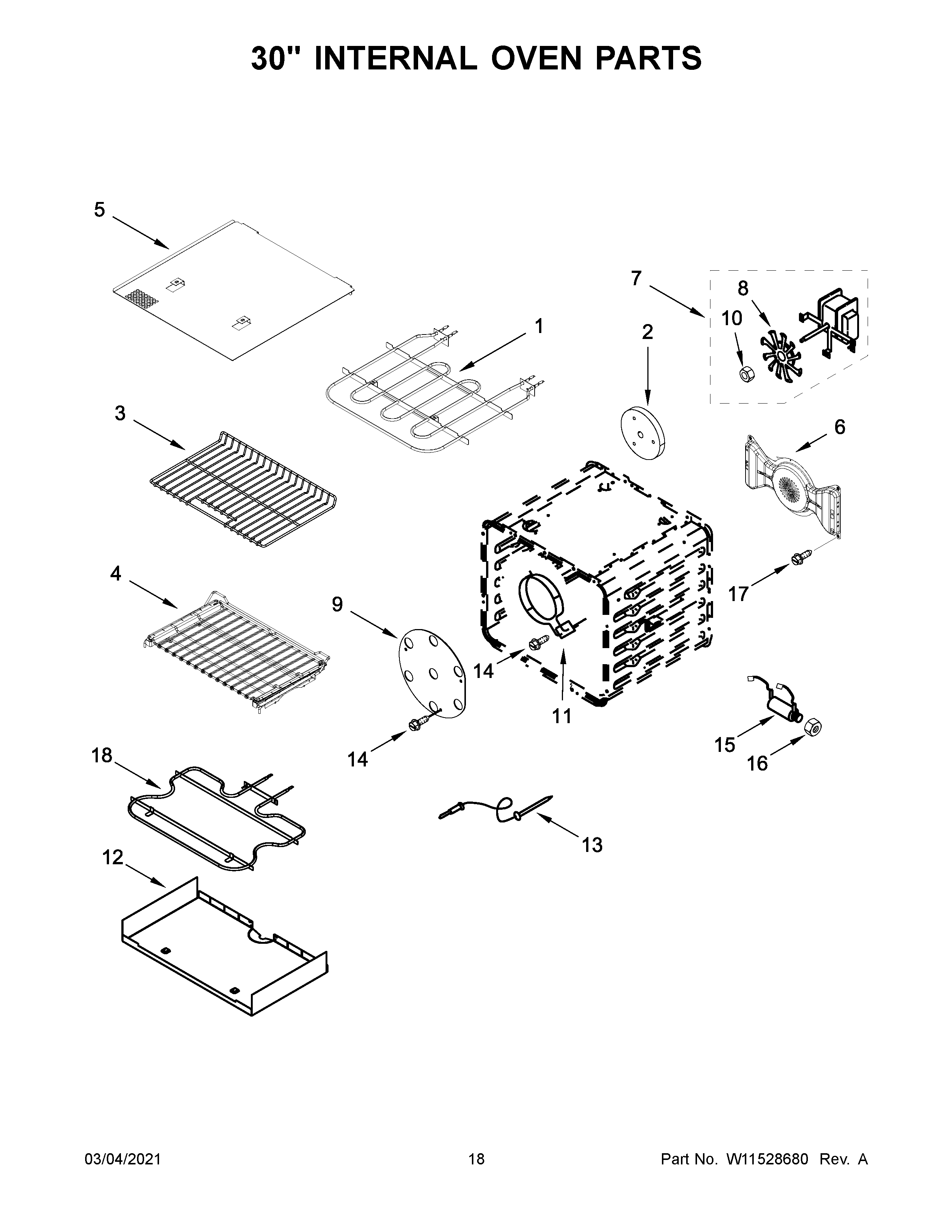

KFDC558JIB01 10 – 30″ INTERNAL OVEN PARTS

KFDC558JIB01 10 – 30″ INTERNAL OVEN PARTS

Written by

in

KFDC558JIB01 10 – 30″ INTERNAL OVEN PARTS

Products

PositionProduct
1W10115994 Whirlpool Broil Element
2W11688507 Whirlpool Insulation
3W11550107 Whirlpool Oven Rack
4W11496977 Whirlpool Oven Rack
5SHIELD, ELEMENT BROIL
6W11662207 Whirlpool Convection Baffle
7W10860984 Whirlpool Fan Motor
8W10819914 Whirlpool Convection Fan
9W10261523 Whirlpool Plate
10W10794042 Whirlpool Nut
11W11643125 Whirlpool Element
12TRAY, HIDDEN BAKE
13WP9755542 Whirlpool Oven Meat Probe
14WP4449154 Whirlpool Screw
158186589 Whirlpool Jack Probe
16W11231343 Whirlpool Lock Nut
17SCREW
18ELEMENT, HIDDEN BAKE
