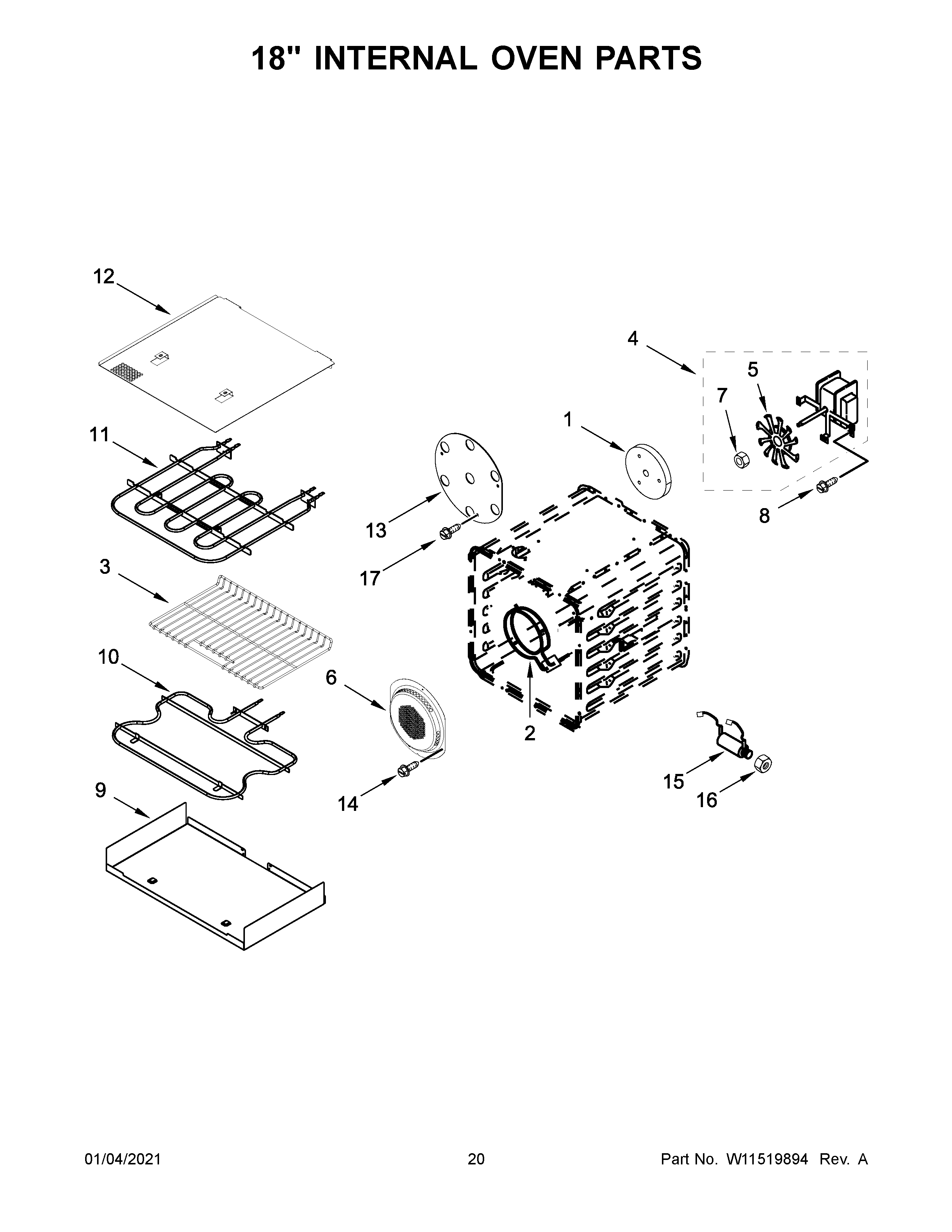

KFDC558JMB01 11 – 18″ INTERNAL OVEN PARTS

Products

Position	Product
1	W11688507 Whirlpool Insulation
2	W11643125 Whirlpool Element
3	W10570879 Whirlpool Oven Rack Assembly
4	W10860984 Whirlpool Fan Motor
5	W10819914 Whirlpool Convection Fan
6	COVER, FAN
7	W10794042 Whirlpool Nut
8	WP4449154 Whirlpool Screw
9	TRAY, HIDDEN BAKE
10	ELEMENT, HIDDEN BAKE
11	W10116010 Whirlpool Broil Element
12	W10160855 Whirlpool Heat Shield
13	W10261523 Whirlpool Plate
14	SCREW
15	8186589 Whirlpool Jack Probe
16	W11231343 Whirlpool Lock Nut
17	W10850807 Whirlpool Screw
