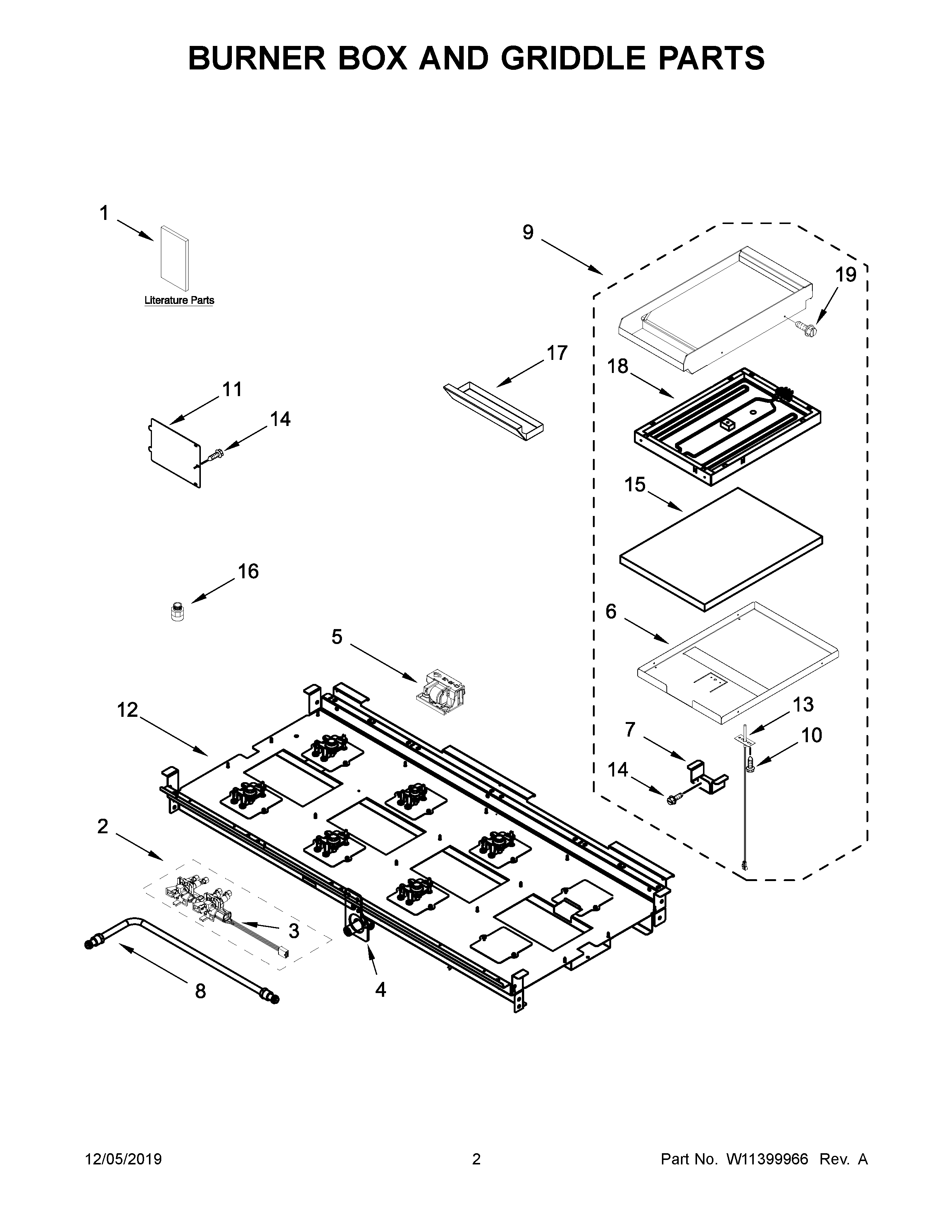

KFDC558JSC00 02 – BURNER BOX AND GRIDDLE PARTS

KFDC558JSC00 02 – BURNER BOX AND GRIDDLE PARTS

Written by

in

KFDC558JSC00 02 – BURNER BOX AND GRIDDLE PARTS

Products

PositionProduct
NIW11544575 Whirlpool Anti-Tip Bracket
NIW11502161 Whirlpool Conversion Kit
NICORD, POWER
NIW11317789 Whirlpool Wire Harness
NIWP9759877 Whirlpool Retainer
NIW11317788 Whirlpool Wire Harness
NIW10780278 Whirlpool Wire Harness
NIW11317787 Whirlpool Wire Harness
NIW11317791 Whirlpool Wire Harness
NIW11317786 Whirlpool Wire Harness
NISCREW, ANTI-TIP KIT
NIW11200302 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
NI4450800 Whirlpool Oven Screw
1GUIDE, USE AND CARE
1CGUIDE, QUICK START
1EDIAGRAM, WIRING (OVEN)
1DDIAGRAM, WIRING
1FSHEET, TECH
1AINSTRUCTIONS, INSTALLATION
1BGUIDE, INTERNET CONNECTIVITY
2BW11378578 Whirlpool Manifold
2W11381267 Whirlpool Manifold Assembly
2AW11381269 Whirlpool Manifold Assembly
3W11344433 Whirlpool Wire Harness
4W11320153 Whirlpool Mounting Bracket
5W11319687 Whirlpool Spark Module
6TRAY, GRIDDLE INSULATION
7BRACKET, GRIDDLE-RTD
8TUBE, MANIFOLD SUPPLY (LEFT)
8ATUBE, MANIFOLD SUPPLY (LEFT CENTER)
8BTUBE, MANIFOLD SUPPLY (RIGHT CENTER)
9W11602621 Whirlpool Module
10W10491985 Whirlpool Screw
11W10115843 Whirlpool Access Cover
13W11319618 Whirlpool Sensor
14SCREW
15INSULATION, GRIDDLE
164453116 Whirlpool Oven Adapter
17W10276497 Whirlpool Drip Tray
18W11319602 Whirlpool Grille Element
19SCREW
