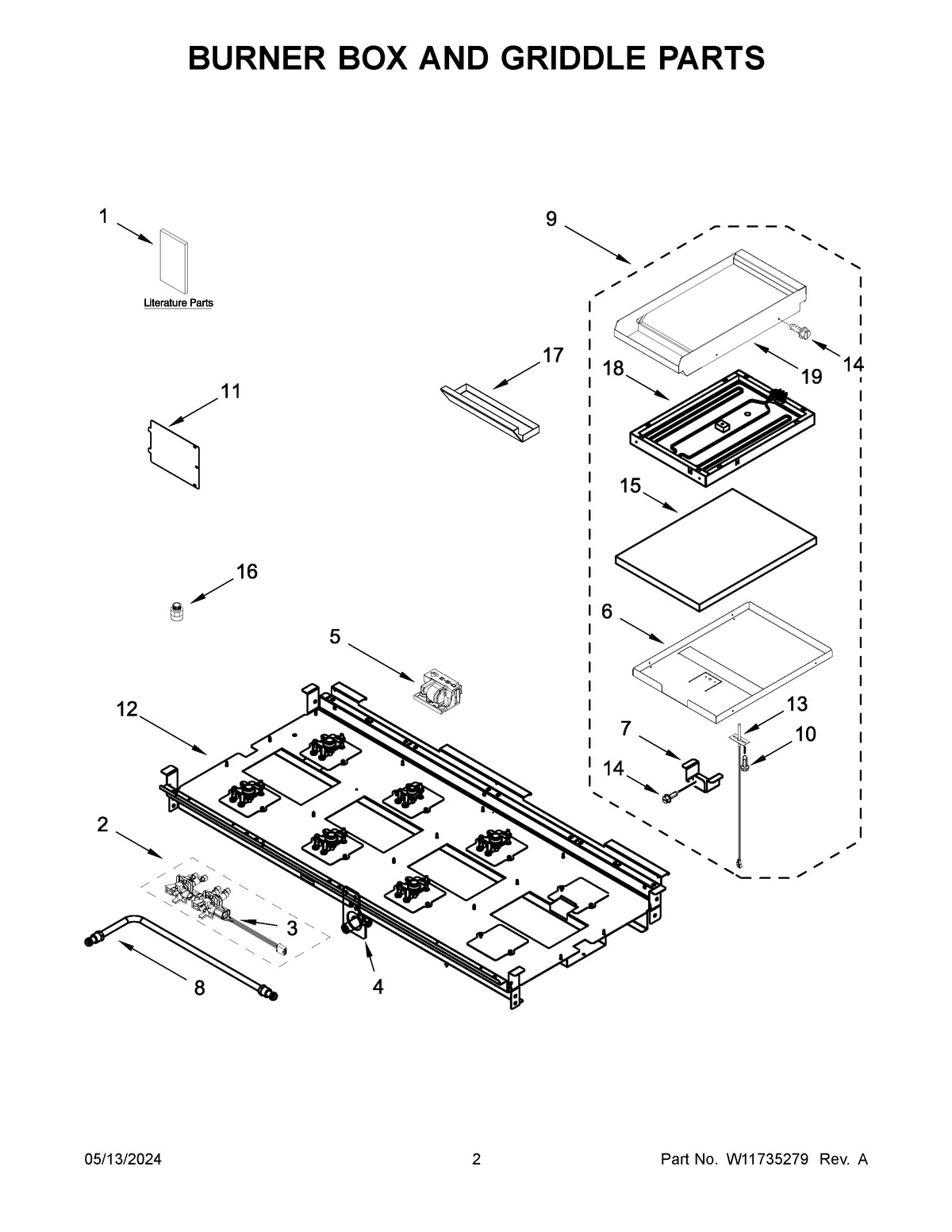

KFDC558JSC03 02 – BURNER BOX AND GRIDDLE PARTS

Products

Position	Product
NI	SCREW, ANTI-TIP KIT
NI	W11317788 Whirlpool Wire Harness
NI	W10780278 Whirlpool Wire Harness
NI	W11317787 Whirlpool Wire Harness
NI	W11317791 Whirlpool Wire Harness
NI	W11317786 Whirlpool Wire Harness
NI	WP9759877 Whirlpool Retainer
NI	W11317789 Whirlpool Wire Harness
NI	CORD, POWER
NI	W11502161 Whirlpool Conversion Kit
NI	W11200302 Whirlpool Wire Harness
NI	4450800 Whirlpool Oven Screw
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	16515 Whirlpool Clip
NI	W11544575 Whirlpool Anti-Tip Bracket
1E	WIRING DIAGRAM (OVEN)
1F	SHEET, TECH
1C	GUIDE, QUICK START
1	OWNER'S MANUAL
1D	WIRING DIAGRAM (COOKTOP)
1B	GUIDE, INTERNET CONNECTIVITY
1A	INSTALLATION INSTRUCTIONS
2B	W11378578 Whirlpool Manifold
2A	W11381269 Whirlpool Manifold Assembly
2	W11381267 Whirlpool Manifold Assembly
3	W11344433 Whirlpool Wire Harness
4	W11320153 Whirlpool Mounting Bracket
5	W11319687 Whirlpool Spark Module
6	TRAY, GRIDDLE INSULATION
7	BRACKET, GRIDDLE-RTD
8	TUBE, MANIFOLD SUPPLY (LEFT)
8B	TUBE, MANIFOLD SUPPLY (RIGHT CENTER)
8A	TUBE, MANIFOLD SUPPLY (LEFT CENTER)
9	W11602621 Whirlpool Module
10	W10491985 Whirlpool Screw
11	W10115843 Whirlpool Access Cover
12	BOX, BURNER (NOT SERVICED)
13	W11319618 Whirlpool Sensor
14	W10162096 Whirlpool Screw
15	INSULATION, GRIDDLE
16	4453116 Whirlpool Oven Adapter
17	W10276497 Whirlpool Drip Tray
18	W11319602 Whirlpool Grille Element
19	W11602622 Whirlpool Griddle Assembly
