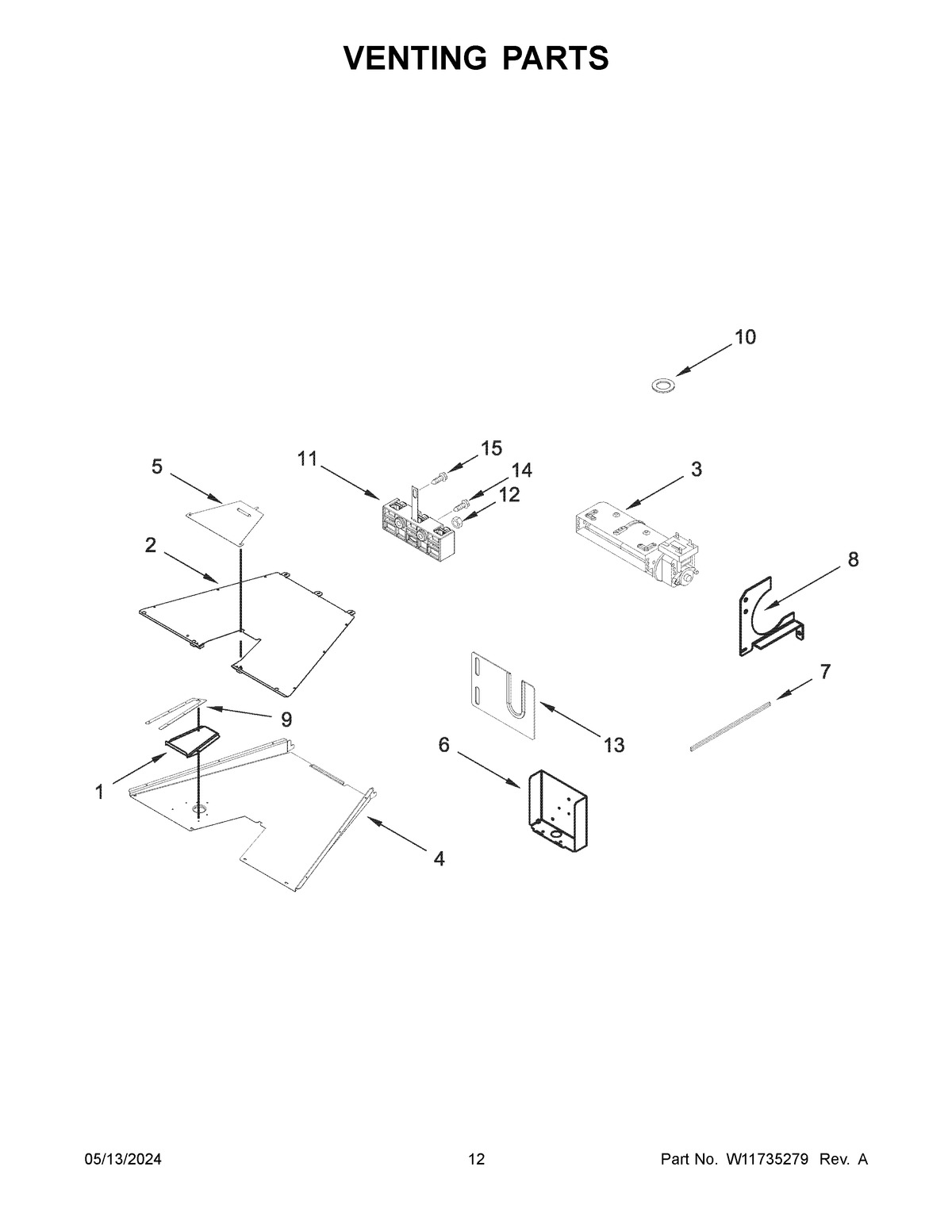

KFDC558JSC03 07 – VENTING PARTS

Products

Position	Product
1	SLOPE, EXHAUST VENT (30")
1A	SLOPE, EXHAUST VENT (18")
2A	VENT, COOLING TOP (18 IN)
2	VENT, COOLING TOP (30 IN)
3	W11248652 Whirlpool Blower
4A	VENT, COOLING BOTTOM (18 IN)
4	VENT, COOLING BOTTOM (30 IN)
5	PLATE, COOLING LATCH
6	BOX, TERMINAL
7	W11175143 Whirlpool Gasket
8	BRACKET, BLOWER MOUNT
9	W10270397 Whirlpool Vent Seal
9A	W10270402 Whirlpool Seal Assembly
10	SEAL, CHIMNEY
11	WP9761958 Whirlpool Range Terminal Block
12	WP112432 Whirlpool Nut Assembly
13	COVER, CHANNEL
14	WP3196163 Whirlpool Screw
15	WP3400015 Whirlpool Screw
