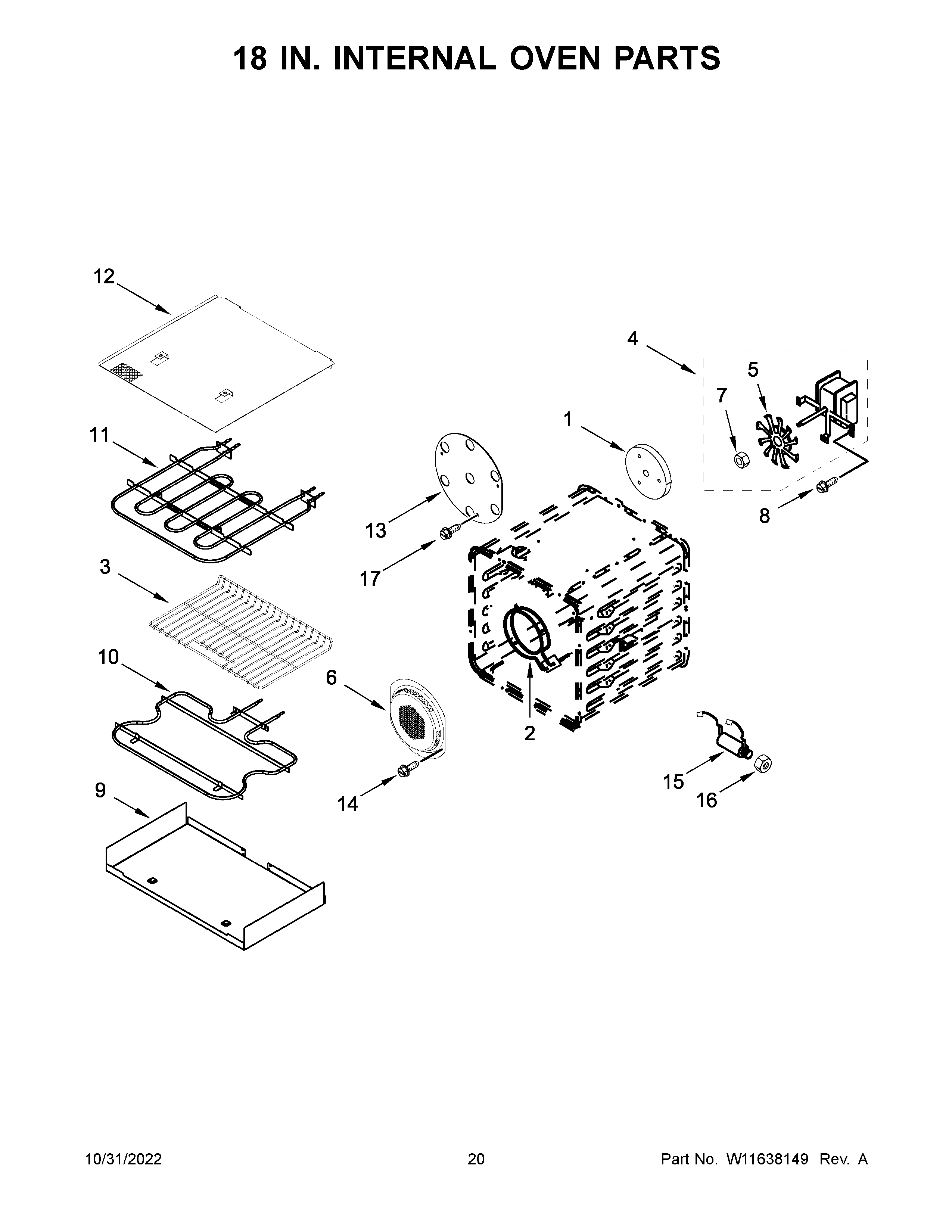

KFDC558JYP01 11 – 18 IN. INTERNAL OVEN PARTS

KFDC558JYP01 11 – 18 IN. INTERNAL OVEN PARTS

Written by

in

KFDC558JYP01 11 – 18 IN. INTERNAL OVEN PARTS

Products

PositionProduct
1W11688507 Whirlpool Insulation
2W11643125 Whirlpool Element
3W10570879 Whirlpool Oven Rack Assembly
4W10860984 Whirlpool Fan Motor
5W10819914 Whirlpool Convection Fan
6COVER, FAN
7W10794042 Whirlpool Nut
8WP4449154 Whirlpool Screw
9TRAY, HIDDEN BAKE
10ELEMENT, HIDDEN BAKE
11W10116010 Whirlpool Broil Element
12W10160855 Whirlpool Heat Shield
13W10261523 Whirlpool Plate
14SCREW
158186589 Whirlpool Jack Probe
16W11231343 Whirlpool Lock Nut
17W10850807 Whirlpool Screw
