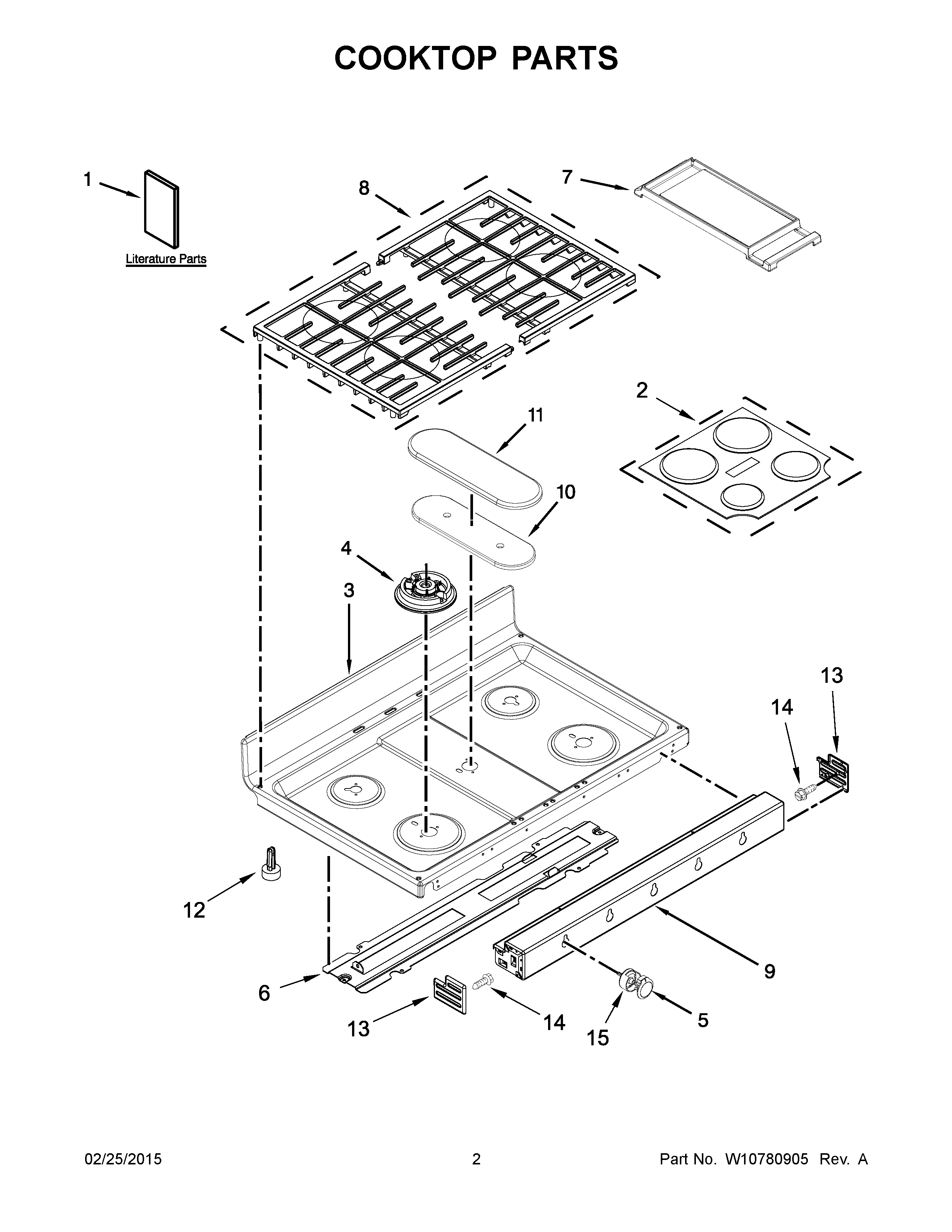

KFDD500ESS00 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11157775 Whirlpool Wire Harness
NI	WIRING HARNESS PARTS, CLIP, WIRE
NI	W10408058 Whirlpool Wire Harness
NI	W10225701 Whirlpool Sensor Wire Harness
NI	HARNESS, MAIN
NI	W11226497 Whirlpool Power Cord
NI	CLAMP, WIRE
1B	SHEET, TECH
1D	Safer Cooking Tips (French)
1A	INSTRUCTIONS, INSTALLATION
1	GUIDE, USE & CARE
1C	SAFER COOKING TIPS (ENGLISH
2	WPW10299236 Whirlpool Burner Cap
3	W10401393 Whirlpool Cooktop
4C	WPW10336094 Whirlpool Burner Assembly Top
4A	WPW10406243 Whirlpool Burner Head Auxiliary 6K
4B	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
4	WPW10406878 Whirlpool Burner Base (16K)
5	W11030413 Whirlpool Knob
6	W10518258 Whirlpool Mounting Bracket
7	W10432544 Whirlpool Range Griddle
8	W11673268 Whirlpool Grate Kit
9	W11228125 Whirlpool Manifold Panel
10	WPW10333445 Whirlpool Burner Base
11	WPW10171140 Whirlpool Burner Cap
12	GLIDE, MAIN TOP
13	W10772020 Whirlpool Panel Endcap
13A	W10772019 Whirlpool Panel End Cap
14	Screw
15	W10814133 Whirlpool Knob Bezel
