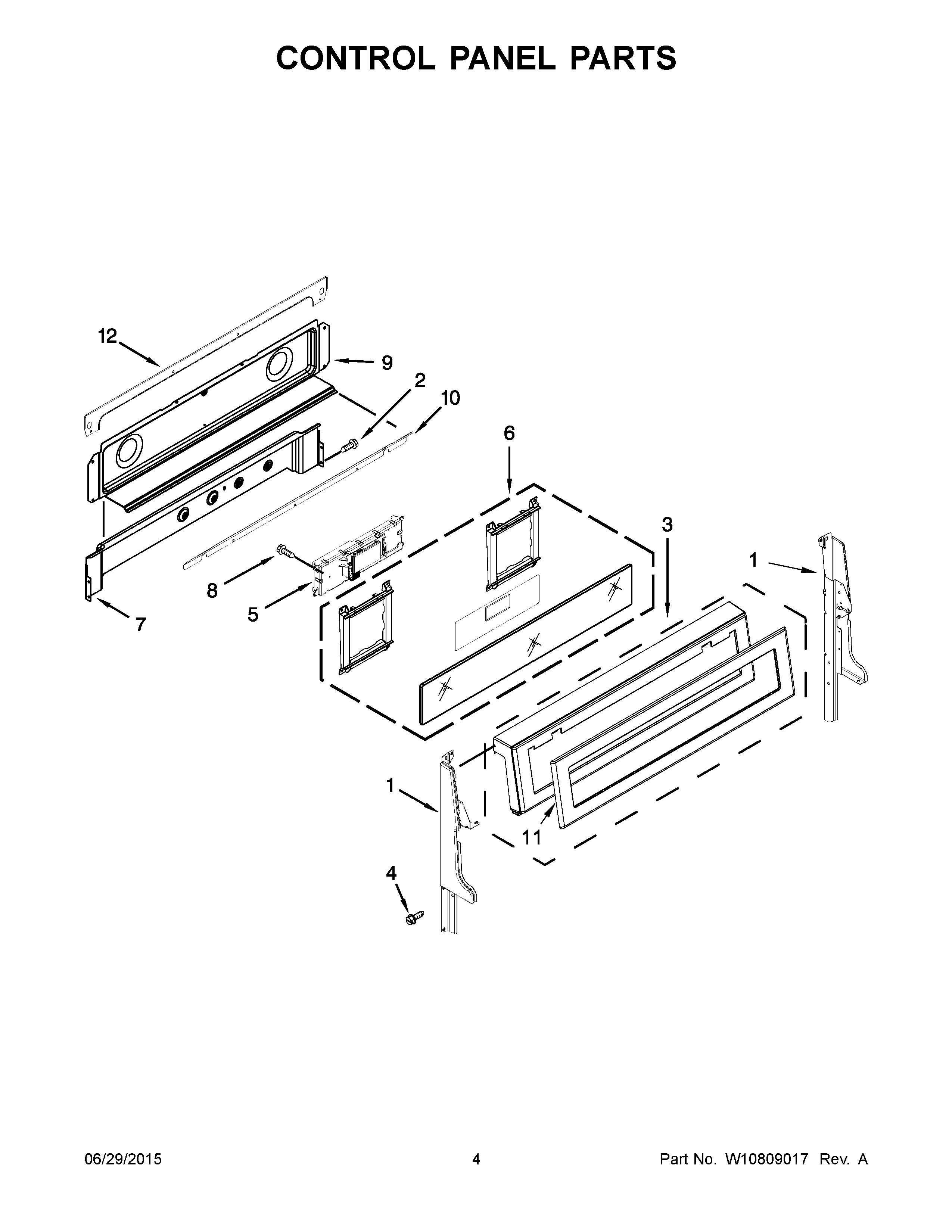

KFDD500ESS01 03 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	W10319109 Whirlpool Endcap Panel
2	SCREW
4	Screw
5	W11598459 Whirlpool Electronic Control Board + Core
6	W10692425 Whirlpool Membrane Switch
7	W10278697 Whirlpool Vent Shield Assembly
8	SCREW
9	W10776098 Whirlpool Rear Cover
11	W11164063 Whirlpool Control Panel
12	WPW10292689 Whirlpool Wire Cover
