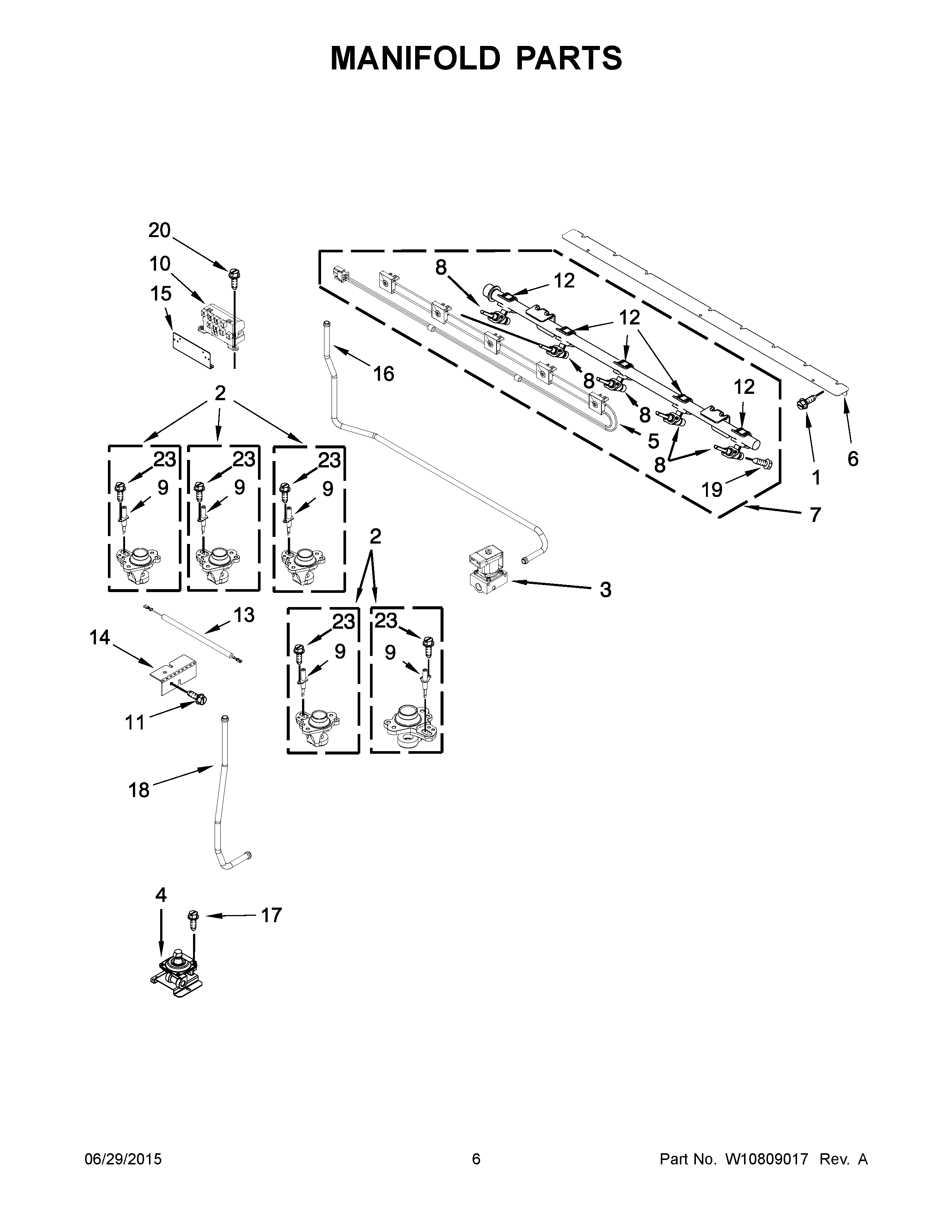

KFDD500ESS01 04 – MANIFOLD PARTS

Products

Position	Product
1	SCREW
2	W11230935 Whirlpool Orifice Holder
2A	W10643269 Whirlpool Orifice Holder
2B	W11685612 Whirlpool Range Orifice Holder
2C	W10643271 Whirlpool Orifice Holder
2D	W10643272 Whirlpool Orifice Holder
3	W10911971 Whirlpool Solenoid Valve
4	W10582429 Whirlpool Gas Valve
5	W11241684 Whirlpool Wire Harness
6	WPW10276466 Whirlpool Support Bracket
7	W10814136 Whirlpool Manifold
8	W11740802 Whirlpool Burner Valve
8A	W10718182 Whirlpool Burner Valve
8B	W10718181 Whirlpool Burner Valve
9	WPW10407676 Whirlpool Surface Igniter
9A	W10407677 Whirlpool Surface Igniter
10	MODULE, SPARK
11	W10217535 Whirlpool Screw
12	W10949105 Whirlpool Mounting Bracket
13	W10636384 Whirlpool Extension
14	W10324366 Whirlpool Shield
15	W10319059 Whirlpool Support Bracket
16	W10642388 Whirlpool Gas Tubing
17	SCREW (BLACK)
18	W10524331 Whirlpool Gas Tubing
19	W10295997 Whirlpool Screw
20	SCREW
