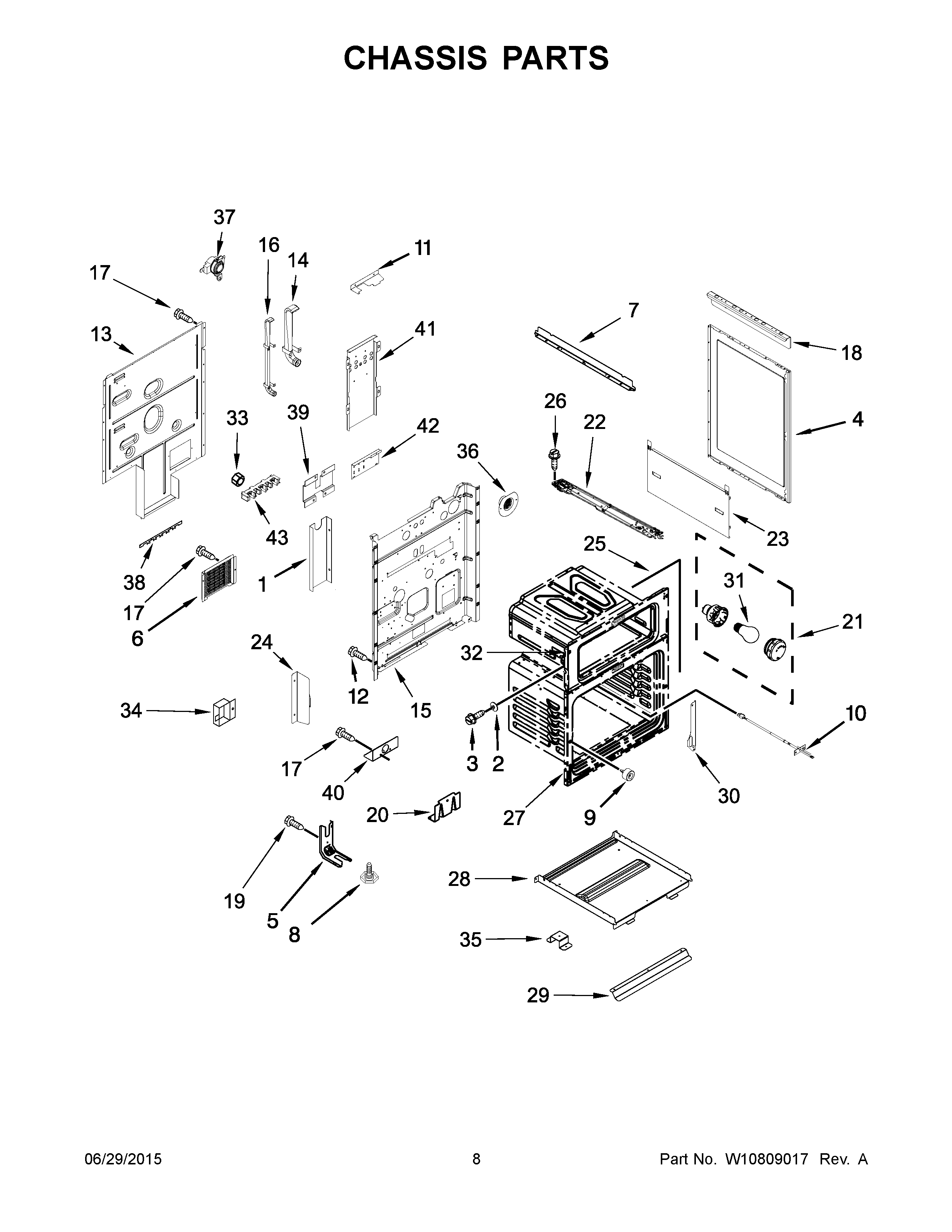

KFDD500ESS01 05 – CHASSIS PARTS

KFDD500ESS01 05 – CHASSIS PARTS

Written by

in

KFDD500ESS01 05 – CHASSIS PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	INSULATION, WRAPPER
NI	WPW10322111 Whirlpool Insulation
NI	WPW10271637 Whirlpool Insulation
NI	W11685361 Whirlpool Insulation
NI	WPW10204079 Whirlpool Insulation
NI	W11684900 Whirlpool Insulation Panel
1	W10332459 Whirlpool Heat Shield
2	WPW10237689 Whirlpool Spacer Panel
3	WPW10267456 Whirlpool Screw
4	W10832695 Whirlpool Side Panel
5	BRACKET, ANTI TIP
6	W10312612 Whirlpool Black Cover
7	W10357697 Whirlpool Spacer Panel
8	FOOT, LEVELER
9	W10105790 Whirlpool Bumper
10	SENSOR, OVEN
11	COVER, LOWER WIRE
12	SCREW (BLACK)
13	WPW10261386 Whirlpool Wire Cover
14	W10337391 Whirlpool Vent Tube
15	W10668730 Whirlpool Rear Cover
16	WPW10323793 Whirlpool Vent Tube
17	SCREW
18	W10319087 Whirlpool Support Bracket
19	SCREW, ANTI-TIP KIT
20	W10260703 Whirlpool Support
21	W11594027 Whirlpool Range Oven Light Socket
22	W11166856 Whirlpool Door Latch
23	SHIELD-SIDE INSULATION
24	W10268559 Whirlpool Cover Wire
25	W10337392 Whirlpool Door Gasket
25A	WPW10269069 Whirlpool Door Gasket
26	SCREW
27	WPW10308654 Whirlpool Front Frame
28	W10548601 Whirlpool Heat Shield
29	W10253470 Whirlpool Retainer Assembly
30A	W10410461 Whirlpool Cover
30	W10410463 Whirlpool Cover Assembly
31	RANGE ONLY 40W 120V APPL BULB
32	W10606341 Whirlpool Front Frame
33	WP3400029 Whirlpool Dishwasher Nut
34	8285593 Whirlpool Oven Wire Cover
35	W10260545 Whirlpool Support Bracket
36	W10322408 Whirlpool Extension Tube
37	SWITCH, HIGH LIMIT
38	SHIELD, POWER CORD
39	INSULATOR,HEAT SHIELD
40	W10190166 Whirlpool Service Bracket
41	W10261388 Whirlpool Mounting Bracket
42	W10332449 Whirlpool Heat Shield
43	WP8203546 Whirlpool Terminal Block
