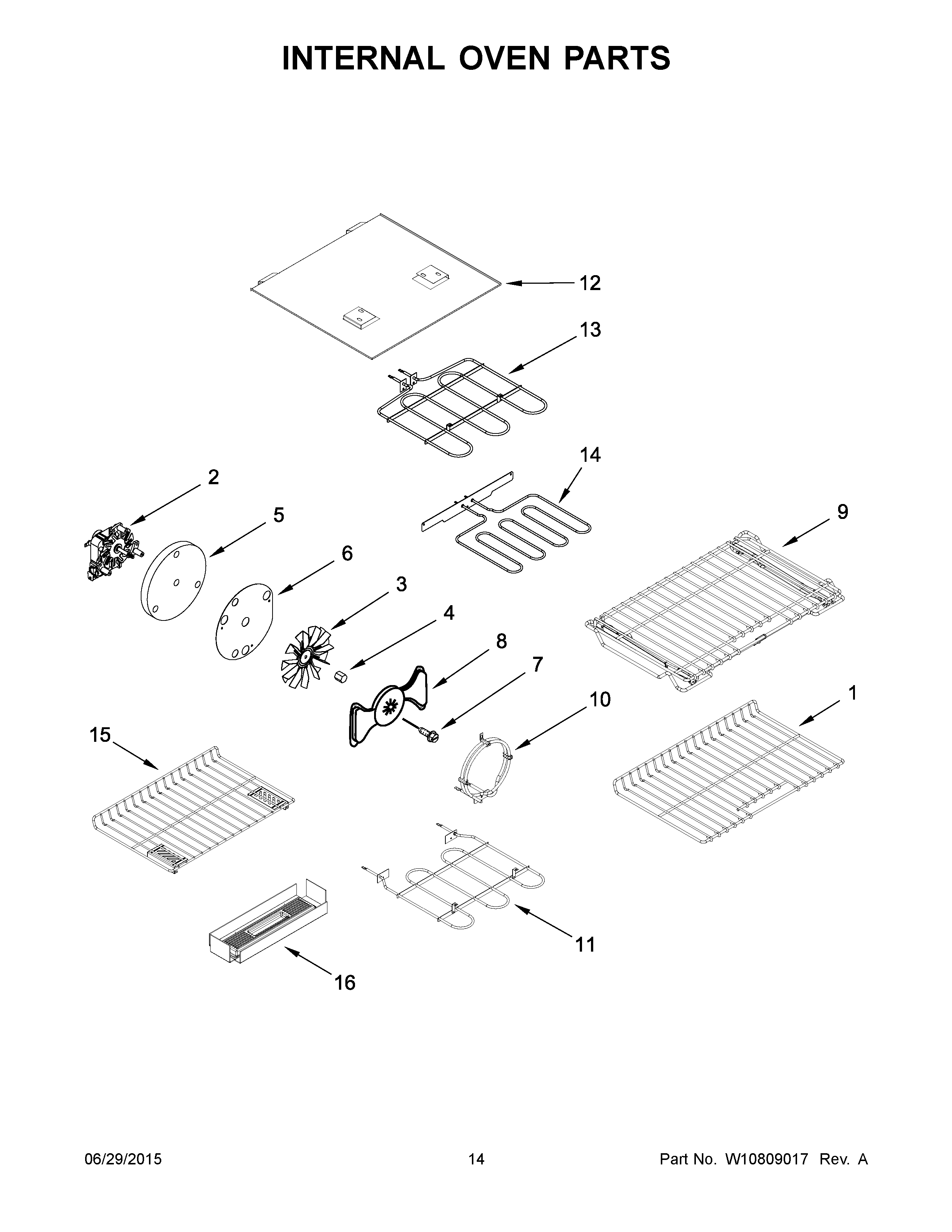

KFDD500ESS01 08 – INTERNAL OVEN PARTS

Products

Position	Product
1	W11550107 Whirlpool Oven Rack
2	W11235883 Whirlpool Fan Motor
3	W10819914 Whirlpool Convection Fan
4	W10794042 Whirlpool Nut
5	W10274268 Whirlpool Insulation
6	W10339476 Whirlpool Bracket Mounting
7	WP4449154 Whirlpool Screw
8	8303962BU Whirlpool Convection Baffle
9	WPW10570870 Whirlpool Oven Rack
10	W10271639 Whirlpool Element
11	W11101534 Whirlpool Range Broil Element
12	W10319762 Whirlpool Heat Shield
13	W10317476 Whirlpool Broil Element
14	W11662148 Whirlpool Bake Element
15	W10685968 Whirlpool Oven Rack
16	W11403917 Whirlpool Reservoir Assembly
