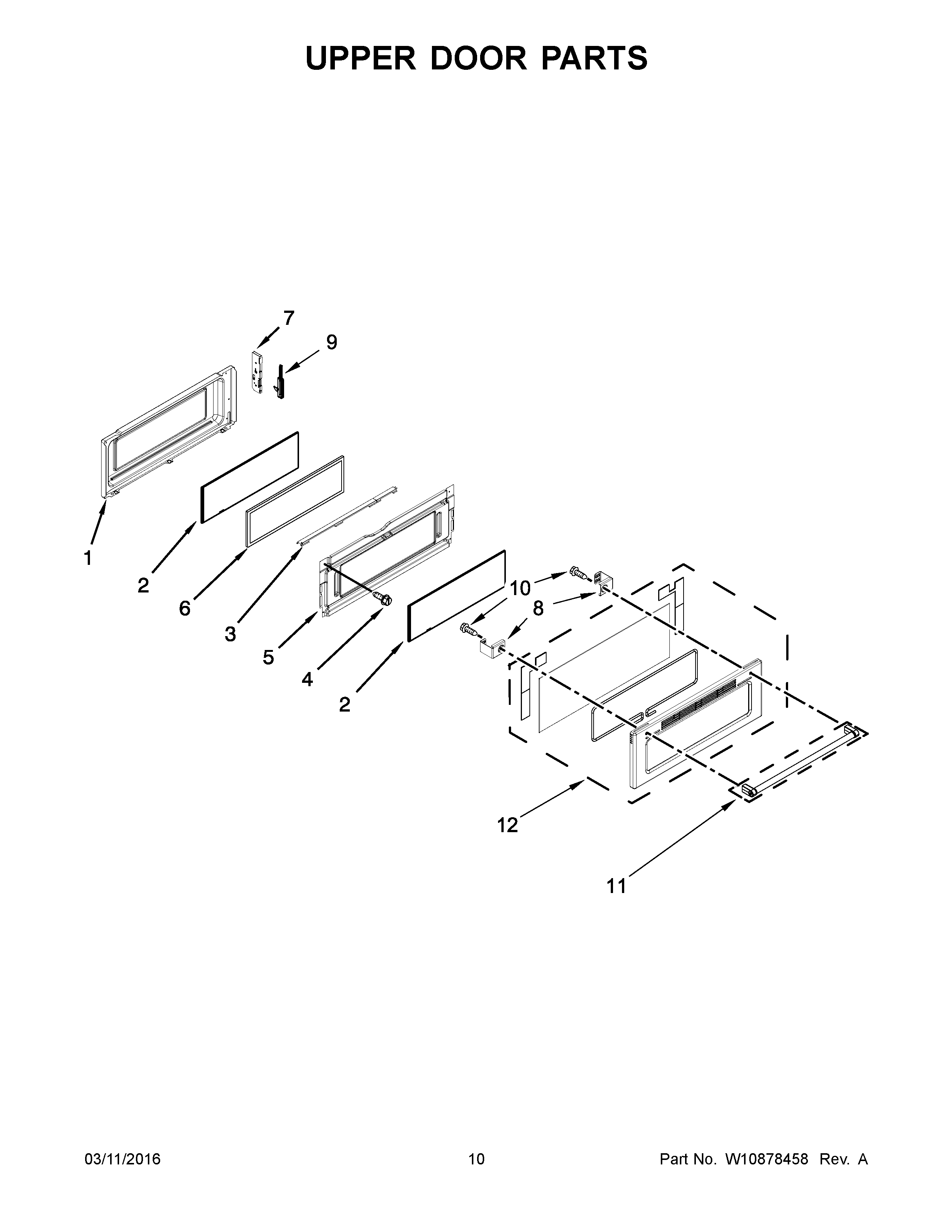

KFDD500ESS02 06 – UPPER DOOR PARTS

KFDD500ESS02 06 – UPPER DOOR PARTS

Written by

in

KFDD500ESS02 06 – UPPER DOOR PARTS

Products

PositionProduct
1W11103615 Whirlpool Door Liner
2W11132120 Whirlpool Glass Door
3WPW10272708 Whirlpool Window Frame
4WPW10292297 Whirlpool Screw
5W10485723 Whirlpool Retainer
6WPW10321271 Whirlpool Insulation Assembly
7W10647259 Whirlpool Hinge Receiver
8W10645182 Whirlpool Mounting Bracket
9AWPW10485732 Whirlpool Door Hinge
9WPW10485733 Whirlpool Door Hinge
10W10831019 Whirlpool Stove Door Screw
11W11305108 Whirlpool Door Handle
12W10777615 Whirlpool Door Glass Assembly
