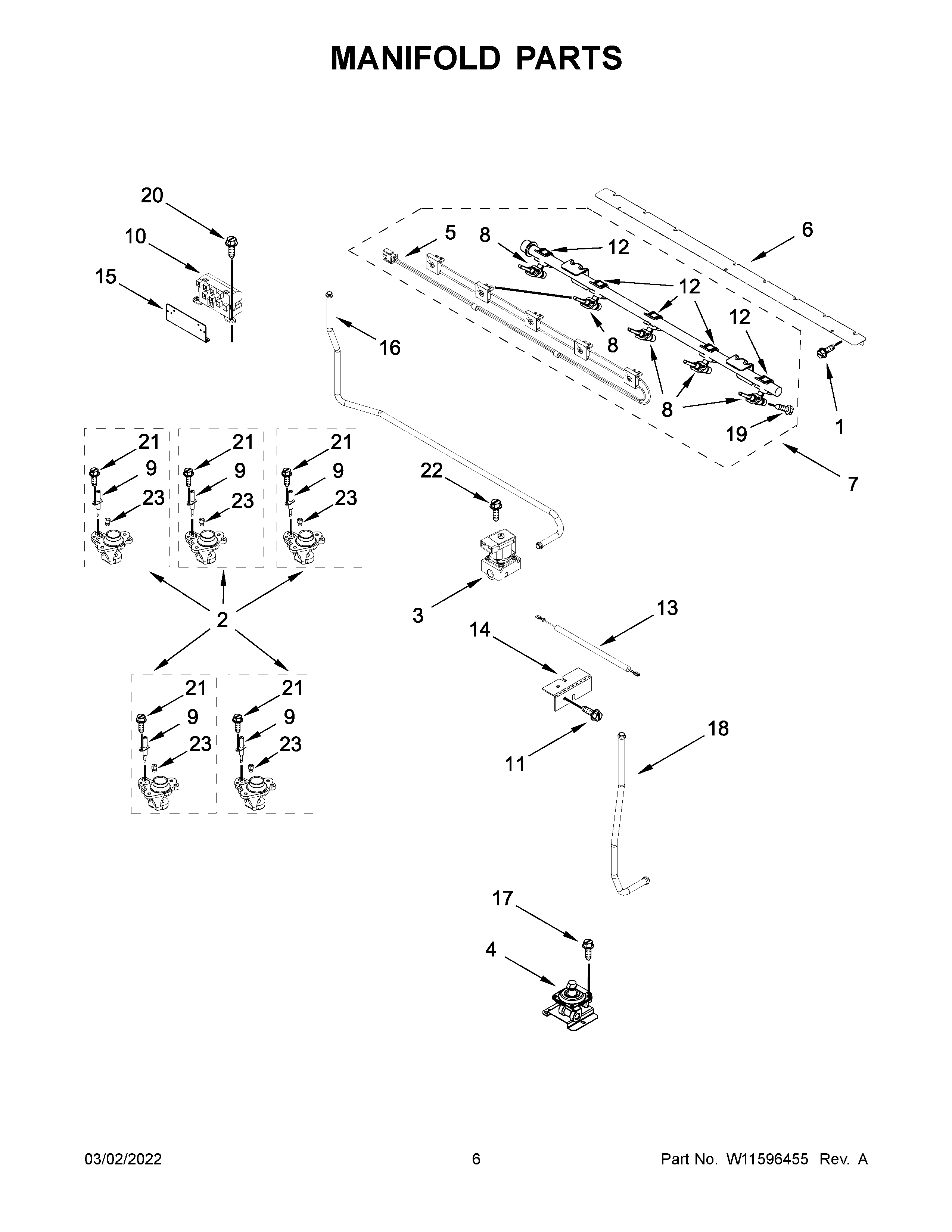

KFDD500ESS05 04 – MANIFOLD PARTS

KFDD500ESS05 04 – MANIFOLD PARTS

Written by

in

KFDD500ESS05 04 – MANIFOLD PARTS

Products

PositionProduct
1SCREW
2BW11685612 Whirlpool Range Orifice Holder
2AW10643269 Whirlpool Orifice Holder
2W11230935 Whirlpool Orifice Holder
2CW10643271 Whirlpool Orifice Holder
2DW10643272 Whirlpool Orifice Holder
3W10911971 Whirlpool Solenoid Valve
4W10582429 Whirlpool Gas Valve
5W11241684 Whirlpool Wire Harness
6WPW10276466 Whirlpool Support Bracket
7W11684563 Whirlpool Range Manifold
8AW10718182 Whirlpool Burner Valve
8BW10718181 Whirlpool Burner Valve
8W11740802 Whirlpool Burner Valve
9W11208293 Whirlpool Surface Igniter
9AW10637673 Whirlpool Surface Igniter
10MODULE, SPARK
11W10217535 Whirlpool Screw
12W10949105 Whirlpool Mounting Bracket
13W10636384 Whirlpool Extension
14W10324366 Whirlpool Shield
15W10319059 Whirlpool Support Bracket
16W10642388 Whirlpool Gas Tubing
17SCREW
18W10524331 Whirlpool Gas Tubing
19W10295997 Whirlpool Screw
20SCREW
21WP8273062 Whirlpool Screw
22WPL 7101P62460
23W11160344 Whirlpool Orifice Spud
23AW11160345 Whirlpool Orifice Spud
23BW11160347 Whirlpool Spud Orifice
23CW11160346 Whirlpool Spud Orifice
