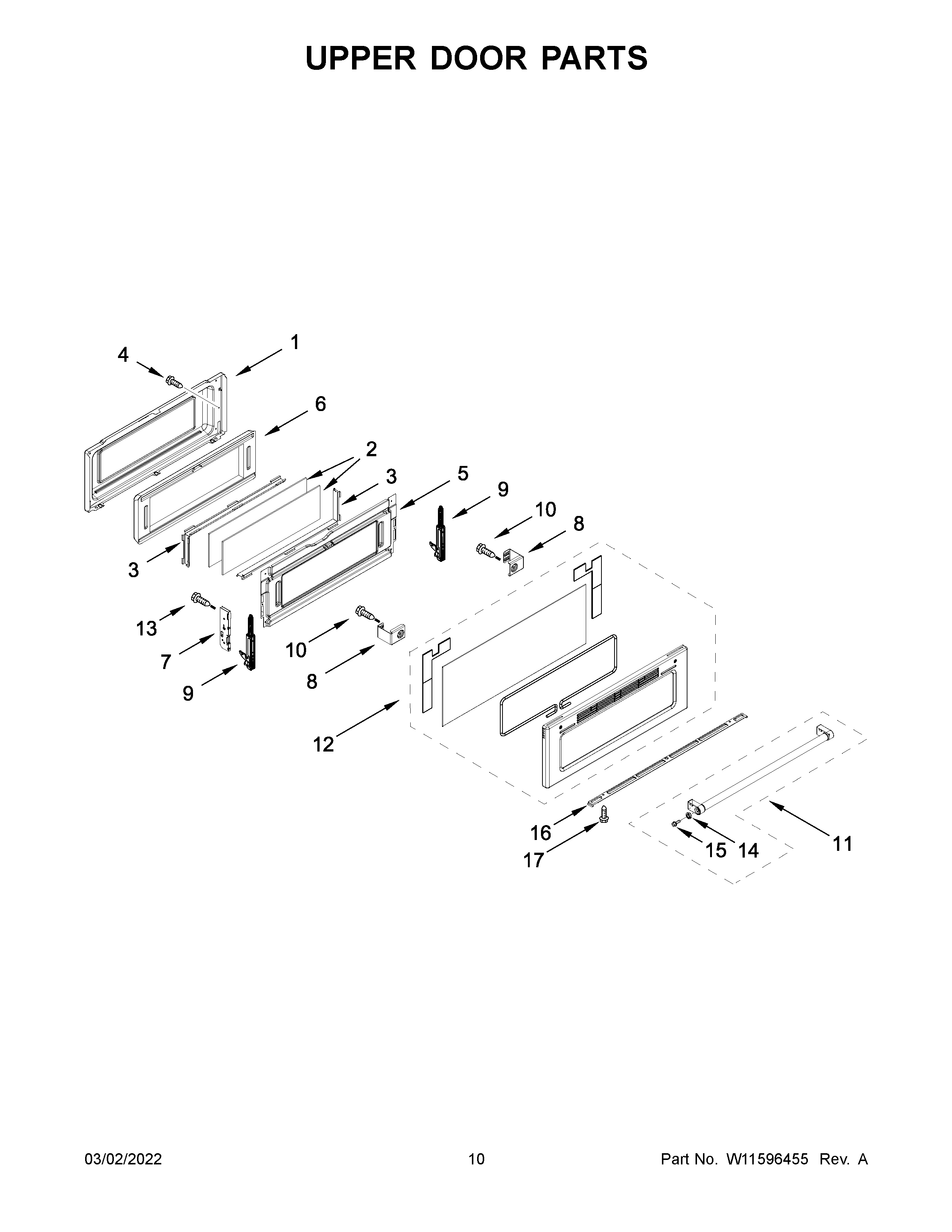

KFDD500ESS05 06 – UPPER DOOR PARTS

Products

Position	Product
1	W11103615 Whirlpool Door Liner
2	W11132120 Whirlpool Glass Door
3	WPW10272708 Whirlpool Window Frame
4	WPW10292297 Whirlpool Screw
5	W10485723 Whirlpool Retainer
6	WPW10321271 Whirlpool Insulation Assembly
7	W10647259 Whirlpool Hinge Receiver
8	W10645182 Whirlpool Mounting Bracket
9A	WPW10485732 Whirlpool Door Hinge
9	WPW10485733 Whirlpool Door Hinge
10	W10831019 Whirlpool Stove Door Screw
11	W11305108 Whirlpool Door Handle
12	W11600202 Whirlpool Door Glass
13	W10777162 Whirlpool Screw
14	W10846207 Whirlpool KA Handle MEDALLIONS-RED
15	W10920281 Whirlpool Screw
16	W11448964 Whirlpool Mounting Bracket
17	W11690596 Whirlpool Screw
