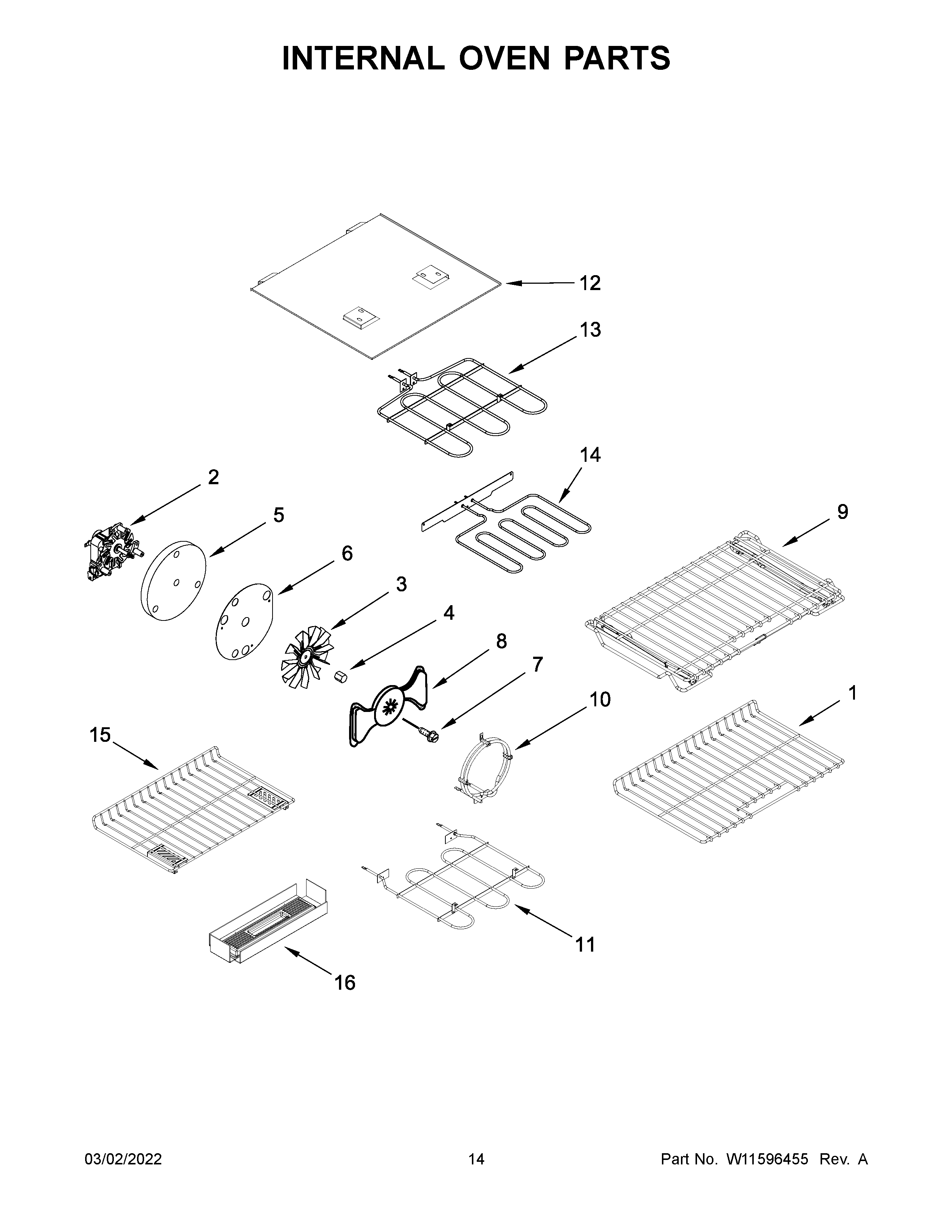

KFDD500ESS05 08 – INTERNAL OVEN PARTS

KFDD500ESS05 08 – INTERNAL OVEN PARTS

Written by

in

KFDD500ESS05 08 – INTERNAL OVEN PARTS

Products

PositionProduct
1W11550107 Whirlpool Oven Rack
2W11235883 Whirlpool Fan Motor
3W10819914 Whirlpool Convection Fan
4W10794042 Whirlpool Nut
5W10274268 Whirlpool Insulation
6W10339476 Whirlpool Bracket Mounting
7W10850807 Whirlpool Screw
88303962BU Whirlpool Convection Baffle
9WPW10570870 Whirlpool Oven Rack
10W10271639 Whirlpool Element
11W11101534 Whirlpool Range Broil Element
12W10319762 Whirlpool Heat Shield
13W10317476 Whirlpool Broil Element
14W11662148 Whirlpool Bake Element
15W10685968 Whirlpool Oven Rack
16W11403917 Whirlpool Reservoir Assembly
