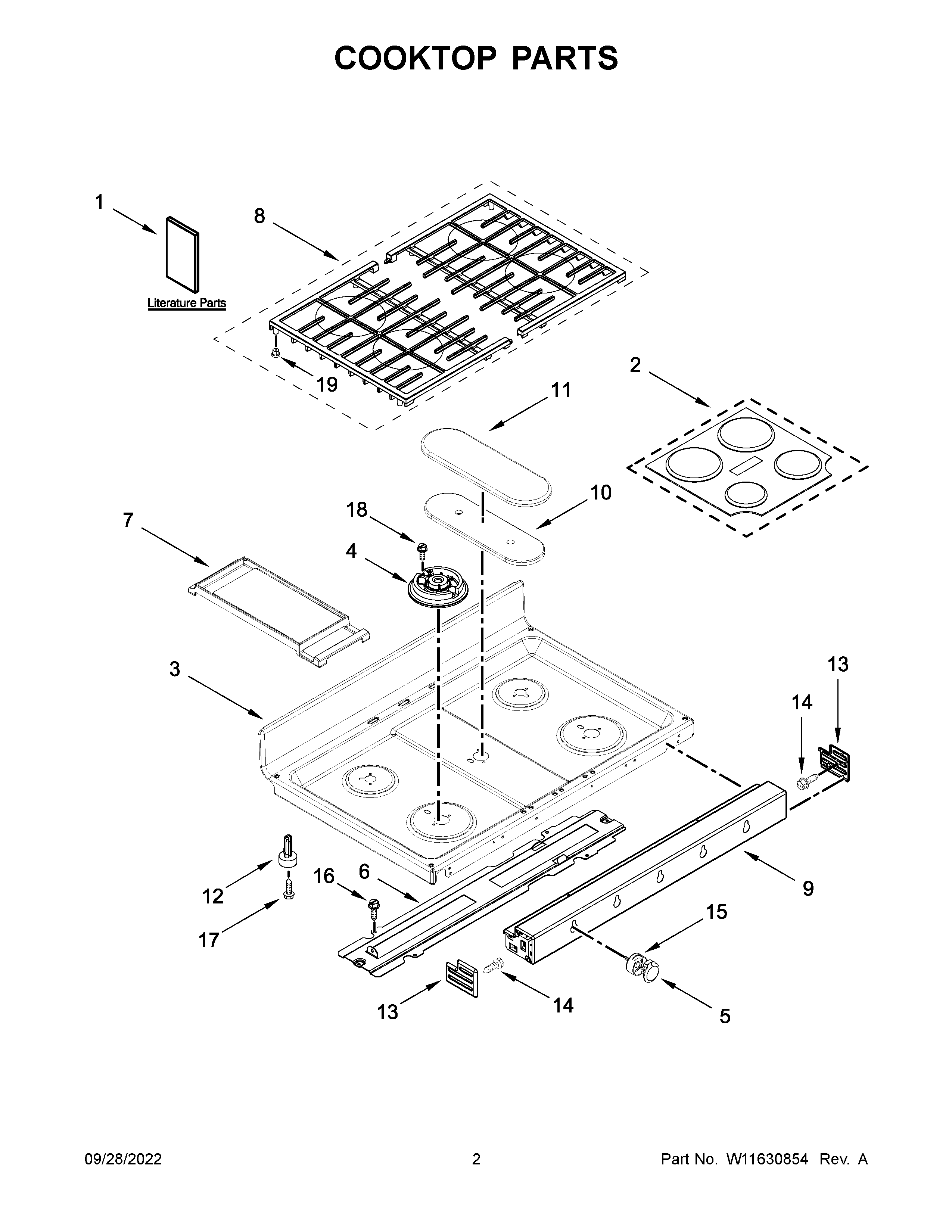

KFDD500ESS10 02 – COOKTOP PARTS

Products

Position	Product
NI	W10745677 Whirlpool Wire Harness
NI	W11674161 Whirlpool Range Orifice Spud
NI	WPL 8019P01360
NI	W10408058 Whirlpool Wire Harness
NI	W11226497 Whirlpool Power Cord
NI	WIRING HARNESS PARTS, CLIP, WIRE
NI	W11172531 Whirlpool Wire Harness
NI	W11172428 Whirlpool Wire Harness
NI	CLAMP, WIRE
NI	CABINET (NOT A SERVICEABLE PART)
NI	Nut
1	OWNER'S MANUAL
1A	QUICK START GUIDE
1B	WIRING DIAGRAM
2	WPW10299236 Whirlpool Burner Cap
3	W10401393 Whirlpool Cooktop
4C	WPW10336094 Whirlpool Burner Assembly Top
4A	WPW10406243 Whirlpool Burner Head Auxiliary 6K
4	WPW10406878 Whirlpool Burner Base (16K)
4B	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
5	W11030413 Whirlpool Knob
6	W10518258 Whirlpool Mounting Bracket
7	W10432544 Whirlpool Range Griddle
8	W11673268 Whirlpool Grate Kit
9	W11228125 Whirlpool Manifold Panel
10	WPW10333445 Whirlpool Burner Base
11	WPW10171140 Whirlpool Burner Cap
12	GLIDE, MAIN TOP
13A	W10772019 Whirlpool Panel End Cap
13	W10772020 Whirlpool Panel Endcap
14	Screw
15	W10814133 Whirlpool Knob Bezel
16	Screw
17	W10491985 Whirlpool Screw
18	WP3368921 Whirlpool Screw
19	W10919249 Whirlpool Burner Grate Foot
