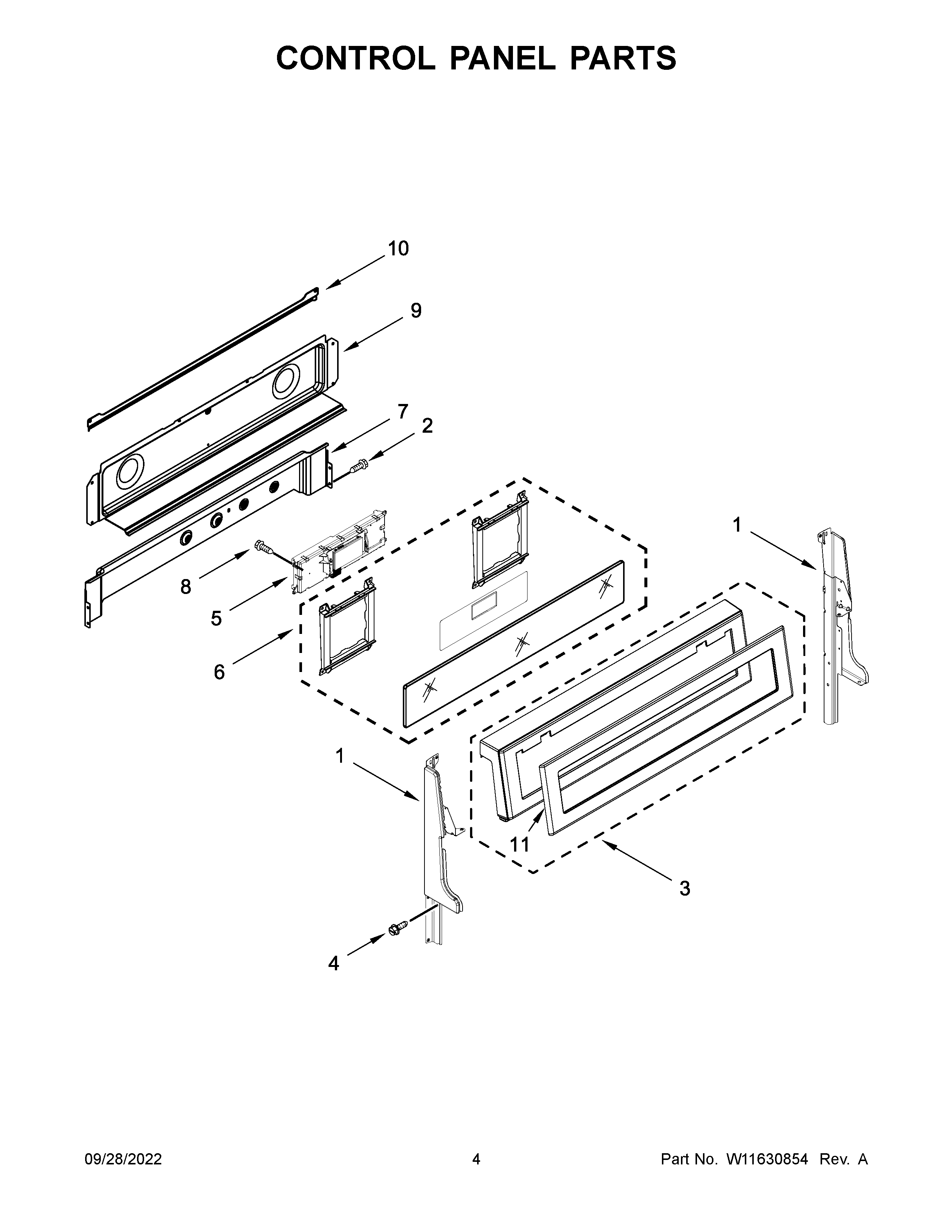

KFDD500ESS10 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W10319109 Whirlpool Endcap Panel
1ASUPPORT, BACK GUARD (RIGHT HAND)
2SCREW
3W11164063 Whirlpool Control Panel
4Screw
5W11598459 Whirlpool Electronic Control Board + Core
6W10692425 Whirlpool Membrane Switch
7W10278697 Whirlpool Vent Shield Assembly
8W11245710 Whirlpool Refrigerator Screw
9W10776098 Whirlpool Rear Cover
11CABINET (NOT A SERVICEABLE PART)
