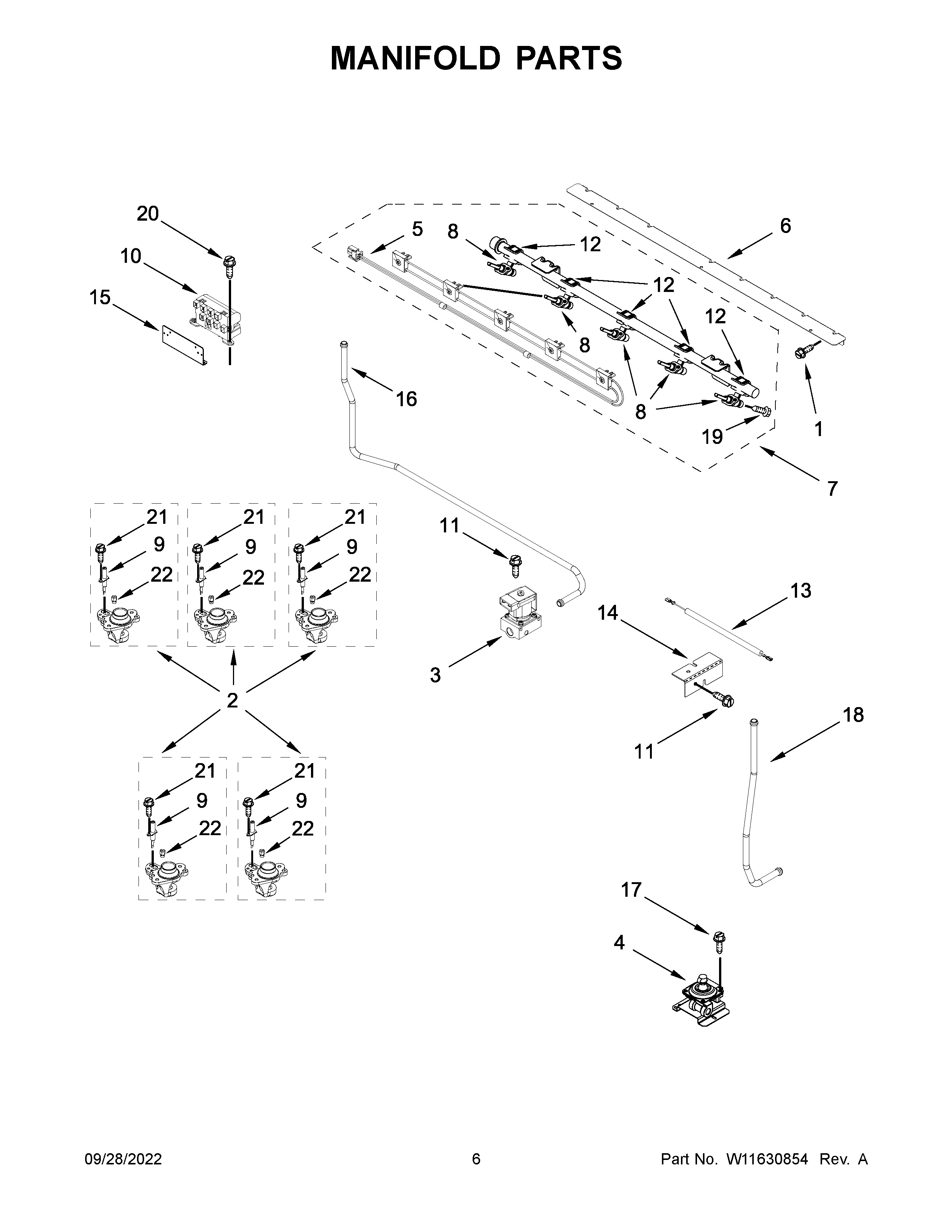

KFDD500ESS10 04 – MANIFOLD PARTS

Products

Position	Product
1	SCREW
2	W11230935 Whirlpool Orifice Holder
2A	W10643269 Whirlpool Orifice Holder
2B	W11685612 Whirlpool Range Orifice Holder
2D	W10643272 Whirlpool Orifice Holder
2C	W10643271 Whirlpool Orifice Holder
3	W10911971 Whirlpool Solenoid Valve
4	W10582429 Whirlpool Gas Valve
5	W11241684 Whirlpool Wire Harness
6	WPW10276466 Whirlpool Support Bracket
7	W11684563 Whirlpool Range Manifold
8B	W10718181 Whirlpool Burner Valve
8	W11740802 Whirlpool Burner Valve
8A	W10718182 Whirlpool Burner Valve
9A	W10637673 Whirlpool Surface Igniter
9	W11208293 Whirlpool Surface Igniter
10	MODULE, SPARK
11	WPL 7101P62460
12	W10949105 Whirlpool Mounting Bracket
13	W10636384 Whirlpool Extension
14	W10324366 Whirlpool Shield
15	W10319059 Whirlpool Support Bracket
16	W10642388 Whirlpool Gas Tubing
17	SCREW
18	W10524331 Whirlpool Gas Tubing
19	W10295997 Whirlpool Screw
20	SCREW
21	WP8273062 Whirlpool Screw
22	W11160344 Whirlpool Orifice Spud
22B	W11160347 Whirlpool Spud Orifice
22C	W11160346 Whirlpool Spud Orifice
22A	W11160345 Whirlpool Orifice Spud
