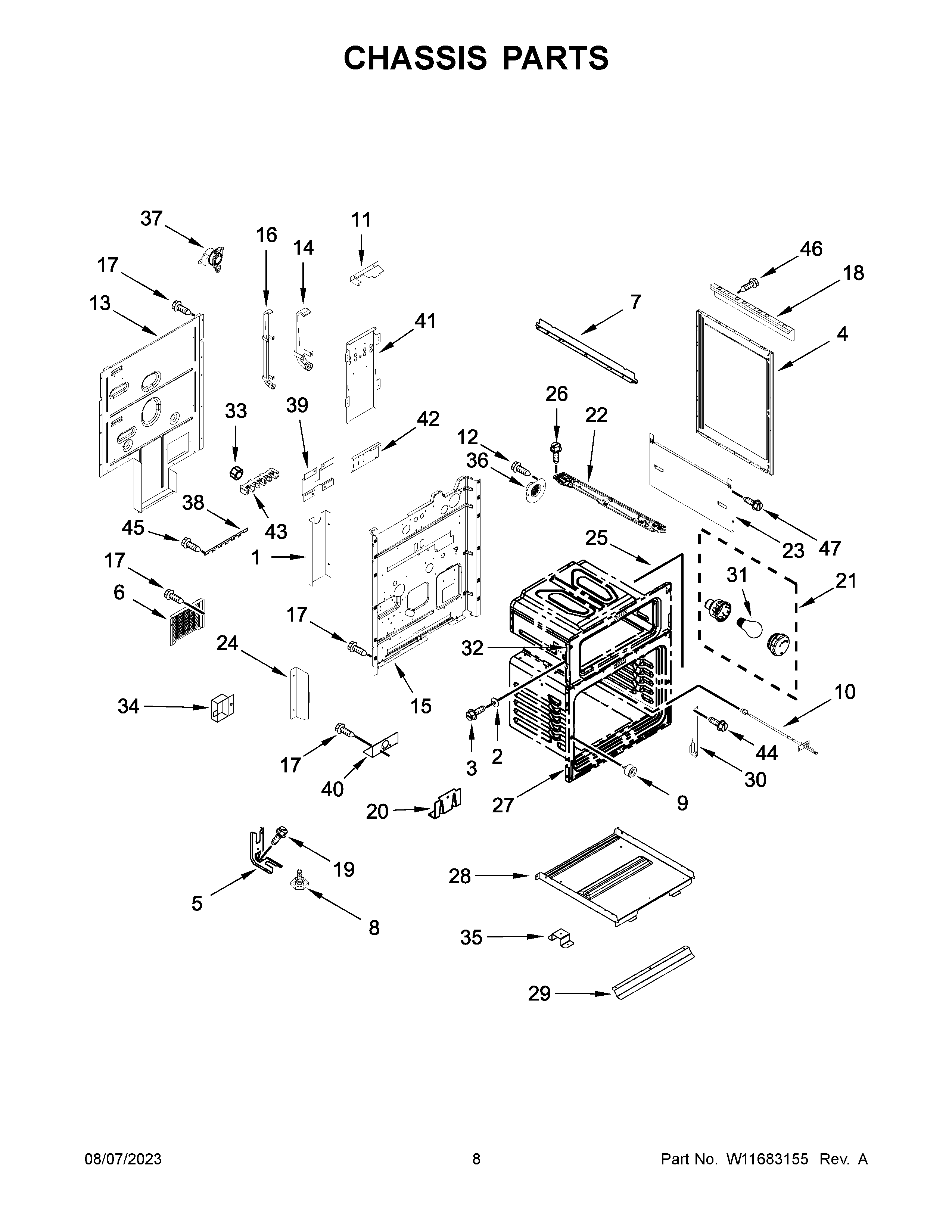

KFDD500ESS11 05 – CHASSIS PARTS

KFDD500ESS11 05 – CHASSIS PARTS

Written by

in

KFDD500ESS11 05 – CHASSIS PARTS

Products

PositionProduct
NIWPW10204079 Whirlpool Insulation
NIWPW10322111 Whirlpool Insulation
NIFOLLOWING PARTS NOT ILLUSTRATED
NIWPW10271637 Whirlpool Insulation
NIW11685361 Whirlpool Insulation
NIINSULATION, WRAPPER
NIINSULATION, HIDDEN BAKE POUCH
1W10332459 Whirlpool Heat Shield
2W11594028 Whirlpool Spacer Panel
3WPW10267456 Whirlpool Screw
4W11594130 Whirlpool Side Panel
5BRACKET, ANTI TIP
6W10312612 Whirlpool Black Cover
7W10357697 Whirlpool Spacer Panel
8W11665456 Whirlpool Range Level Foot
9W10105790 Whirlpool Bumper
10SENSOR, OVEN
11COVER, LOWER WIRE
12SCREW
13WPW10261386 Whirlpool Wire Cover
14W10337391 Whirlpool Vent Tube
15W10668730 Whirlpool Rear Cover
16WPW10323793 Whirlpool Vent Tube
17SCREW
18W10319087 Whirlpool Support Bracket
19SCREW, ANTI-TIP KIT
20SUPPORT, LOWER OVEN
21W11594027 Whirlpool Range Oven Light Socket
22W11166856 Whirlpool Door Latch
23SHIELD-SIDE INSULATION
24W10268559 Whirlpool Cover Wire
25GASKET, OVEN DOOR (UPPER)
25AW11594140 Whirlpool Door Gasket
26SCREW
27FRONT, MAIN (LOWER)
28W10548601 Whirlpool Heat Shield
29W10253470 Whirlpool Retainer Assembly
30W10410463 Whirlpool Cover Assembly
30AW10410461 Whirlpool Cover
31RANGE ONLY 40W 120V APPL BULB
32FRONT, MAIN (UPPER)
33WP3400029 Whirlpool Dishwasher Nut
348285593 Whirlpool Oven Wire Cover
35W10260545 Whirlpool Support Bracket
36W10322408 Whirlpool Extension Tube
37SWITCH, HIGH LIMIT
38SHIELD, POWER CORD
39INSULATOR,HEAT SHIELD
40W10190166 Whirlpool Service Bracket
41W10261388 Whirlpool Mounting Bracket
42W10332449 Whirlpool Heat Shield
43WP8203546 Whirlpool Terminal Block
44WP4449743 Whirlpool Screw
45WP488488 Whirlpool Refrigerator Screw
46SCREW (BLACK)
47W10443110 Whirlpool Screw
