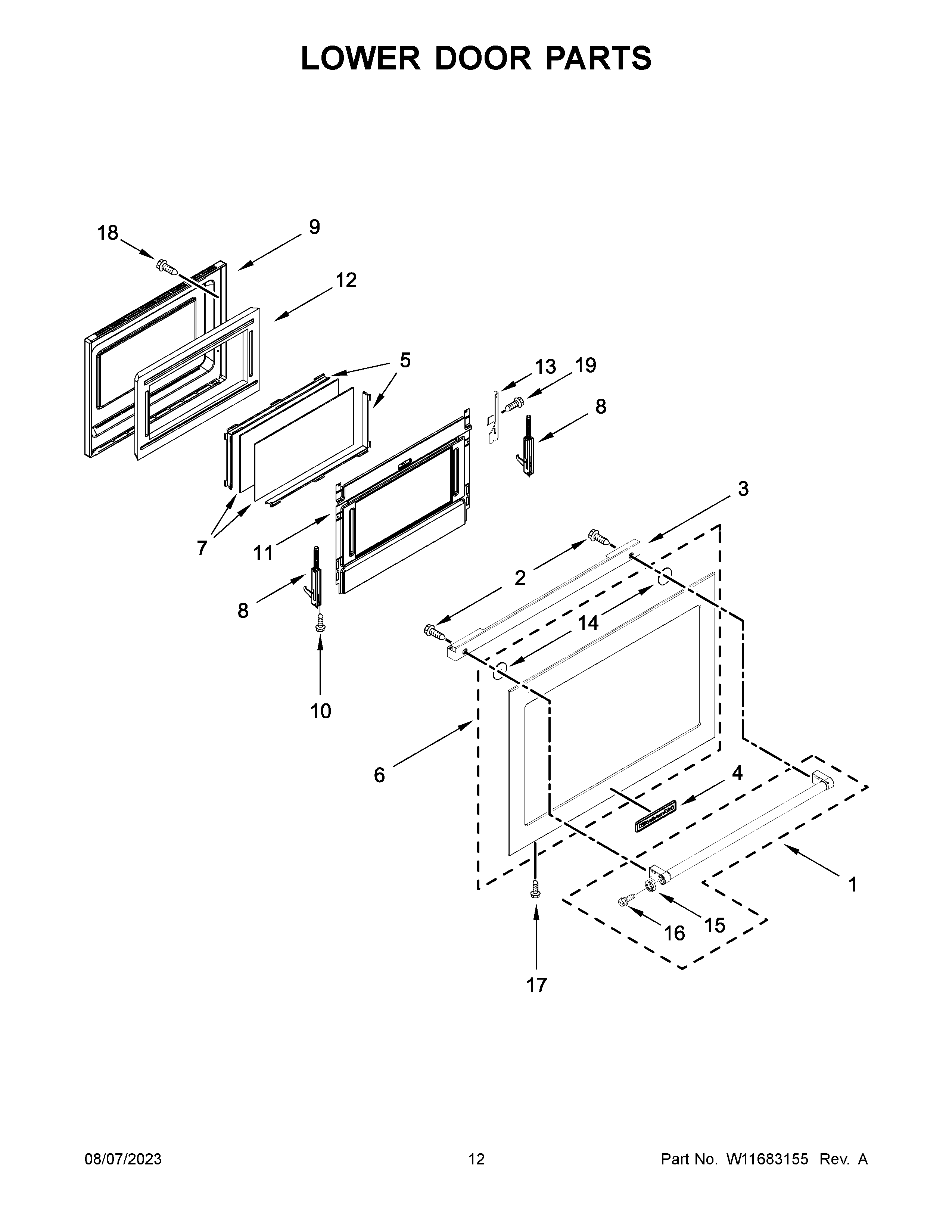

KFDD500ESS11 07 – LOWER DOOR PARTS

Products

Position	Product
1	HNDLE-DOOR
2	W10831019 Whirlpool Stove Door Screw
3	W10575689 Whirlpool Mounting Bracket
4	W10839793 Whirlpool Refrigerator Nameplate
5	WPW10272594 Whirlpool Window Frame
6	ASSEMBLY, DOOR (STAINLESS)
7	WP9757706 Whirlpool Door Inner Glass
8A	WPW10335433 Whirlpool Door Hinge
8	WPW10335434 Whirlpool Door Hinge
9	WPW10292008 Whirlpool Door Liner
10	WPW10292297 Whirlpool Screw
11	W10340464 Whirlpool Retainer
12	INSULATION, DOOR
13	WPW10272329 Whirlpool Hinge Receptacle
13A	WPW10272328 Whirlpool Hinge Receptacle
14	WASHER, FIBER
15	W10846207 Whirlpool KA Handle MEDALLIONS-RED
16	W10920281 Whirlpool Screw
17	W11690596 Whirlpool Screw
18	W11712404 Whirlpool Screw
19	WP4449743 Whirlpool Screw
