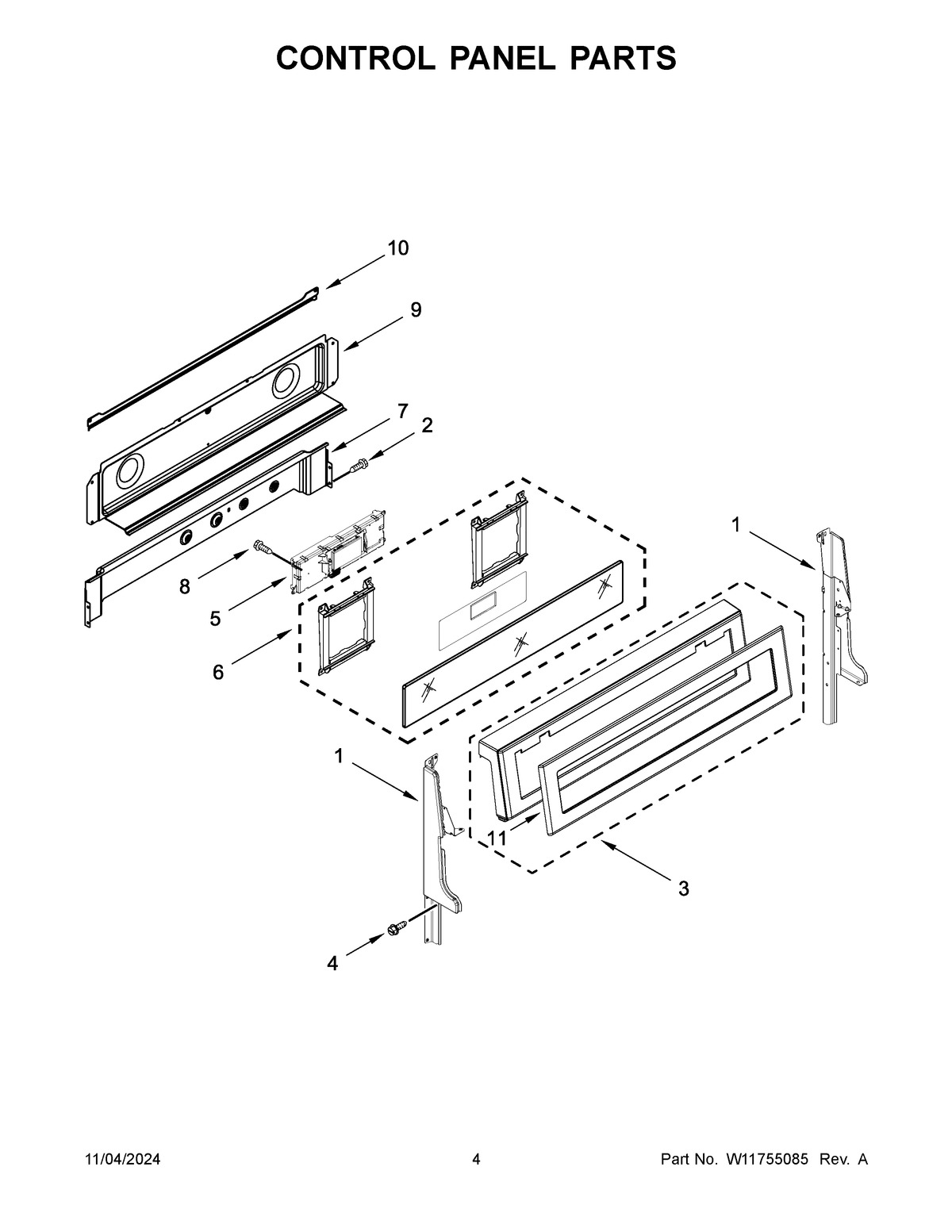

KFDD500ESS12 03 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	W10319109 Whirlpool Endcap Panel
1A	SUPPORT, BACK GUARD (RIGHT HAND)
2	SCREW
3	W11164063 Whirlpool Control Panel
4	Screw
5	W11598459 Whirlpool Electronic Control Board + Core
6	W10692425 Whirlpool Membrane Switch
7	W10278697 Whirlpool Vent Shield Assembly
8	W11245710 Whirlpool Refrigerator Screw
9	W10776098 Whirlpool Rear Cover
11	SKIN, CONTROL PANEL (NOT SERVICED)
