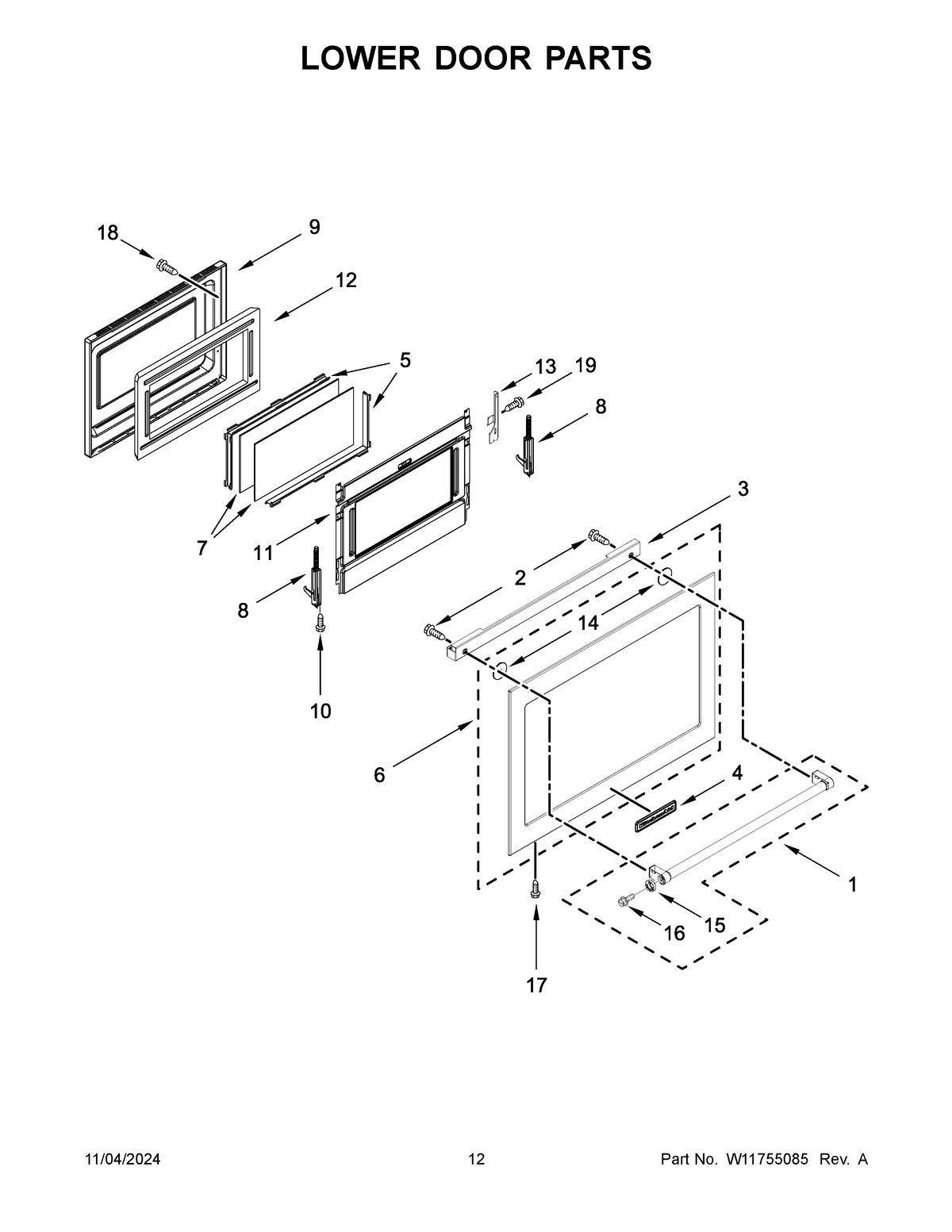

KFDD500ESS12 07 – LOWER DOOR PARTS

Products

PositionProduct
1HNDLE-DOOR
2W10831019 Whirlpool Stove Door Screw
3W10575689 Whirlpool Mounting Bracket
4W10839793 Whirlpool Refrigerator Nameplate
5WPW10272594 Whirlpool Window Frame
6ASSEMBLY, DOOR (STAINLESS)
7WP9757706 Whirlpool Door Inner Glass
8AWPW10335433 Whirlpool Door Hinge
8WPW10335434 Whirlpool Door Hinge
9WPW10292008 Whirlpool Door Liner
10WPW10292297 Whirlpool Screw
11W10340464 Whirlpool Retainer
12INSULATION, DOOR
13WPW10272329 Whirlpool Hinge Receptacle
13AWPW10272328 Whirlpool Hinge Receptacle
14WASHER, FIBER
15W10846207 Whirlpool KA Handle MEDALLIONS-RED
16W10920281 Whirlpool Screw
17W11690596 Whirlpool Screw
18W11712404 Whirlpool Screw
19WP4449743 Whirlpool Screw
