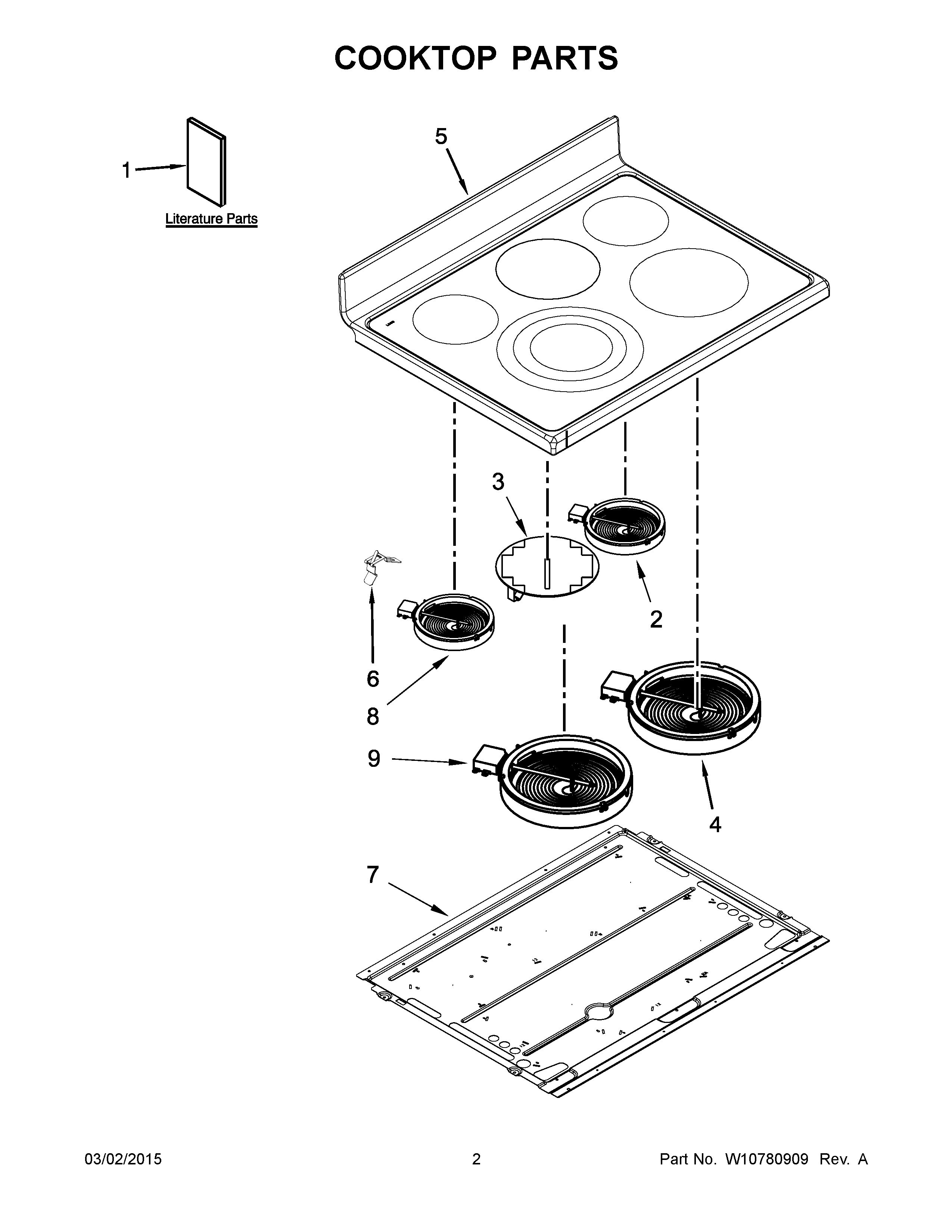

KFED500EBL00 02 – COOKTOP PARTS

KFED500EBL00 02 – COOKTOP PARTS

Written by

in

KFED500EBL00 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIHARNESS, MAIN
NIW11171874 Whirlpool Wire Harness
NIW10406512 Whirlpool Refrigerator Infinite Switch Wire Harness (Left)
NIW10406501 Whirlpool Wire Harness Harness, Infinite Switch (Right)
NIW11157775 Whirlpool Wire Harness
NIWIRING HARNESS PARTS, BLOCK, BARE WIRE ADAPTER
NIW10225701 Whirlpool Sensor Wire Harness
NIWIRING HARNESS PARTS, SCREW, GROUND
NIWPL 8019P01360
1GUIDE, USE & CARE
1AINSTRUCTIONS, INSTALLATION
1BSHEET, TECH
1CSAFER COOKING TIPS (ENGLISH
2ELMNT-SURF
3WP9762851 Whirlpool Surface Element
4WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
5W10789672 Whirlpool Cooktop
5BW10780927 Whirlpool Cooktop
5AW10789673 Whirlpool Cooktop
6WPW10225448 Whirlpool Spring Assembly
7WPW10260946 Whirlpool Panel
8WPW10270604 Whirlpool Surface Element
9W11101459 Whirlpool Surface Element
