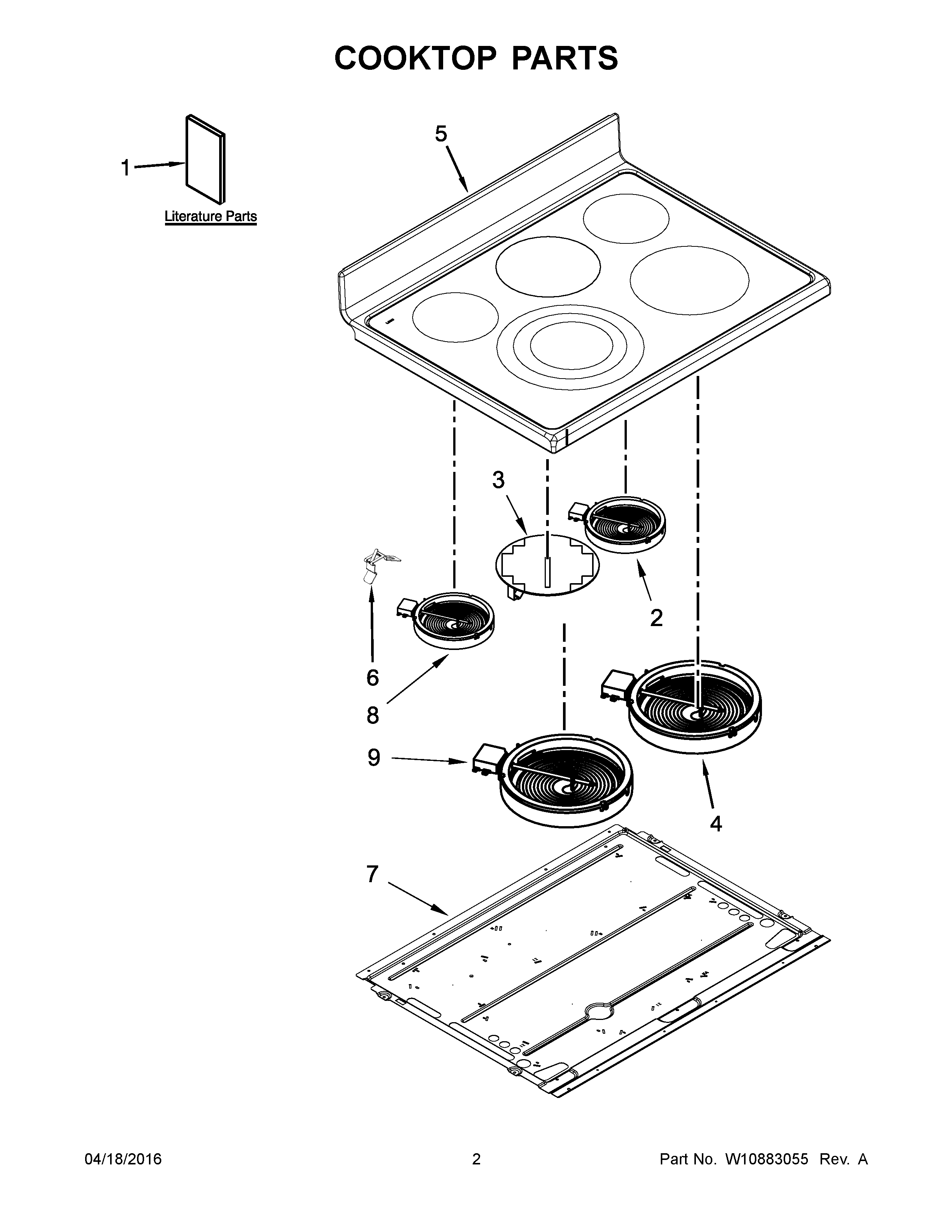

KFED500EBL02 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11171874 Whirlpool Wire Harness
NI	W10406512 Whirlpool Refrigerator Infinite Switch Wire Harness (Left)
NI	W11172427 Whirlpool Wire Harness
NI	W11172531 Whirlpool Wire Harness
NI	W11157775 Whirlpool Wire Harness
NI	WIRING HARNESS PARTS, BLOCK, BARE WIRE ADAPTER
NI	W11171888 Whirlpool Wire Harness
NI	WIRING HARNESS PARTS, SCREW, GROUND
NI	WPL 8019P01360
1C	SAFER COOKING TIPS (ENGLISH
1B	SHEET, TECH
1D	Safer Cooking Tips (French)
1A	INSTRUCTIONS, INSTALLATION
1	GUIDE, USE & CARE
2	ELMNT-SURF
3	WP9762851 Whirlpool Surface Element
4	WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
5B	W10780927 Whirlpool Cooktop
5	W10789672 Whirlpool Cooktop
5A	W10789673 Whirlpool Cooktop
6	WPW10225448 Whirlpool Spring Assembly
7	WPW10260946 Whirlpool Panel
8	WPW10270604 Whirlpool Surface Element
9	W11101459 Whirlpool Surface Element
