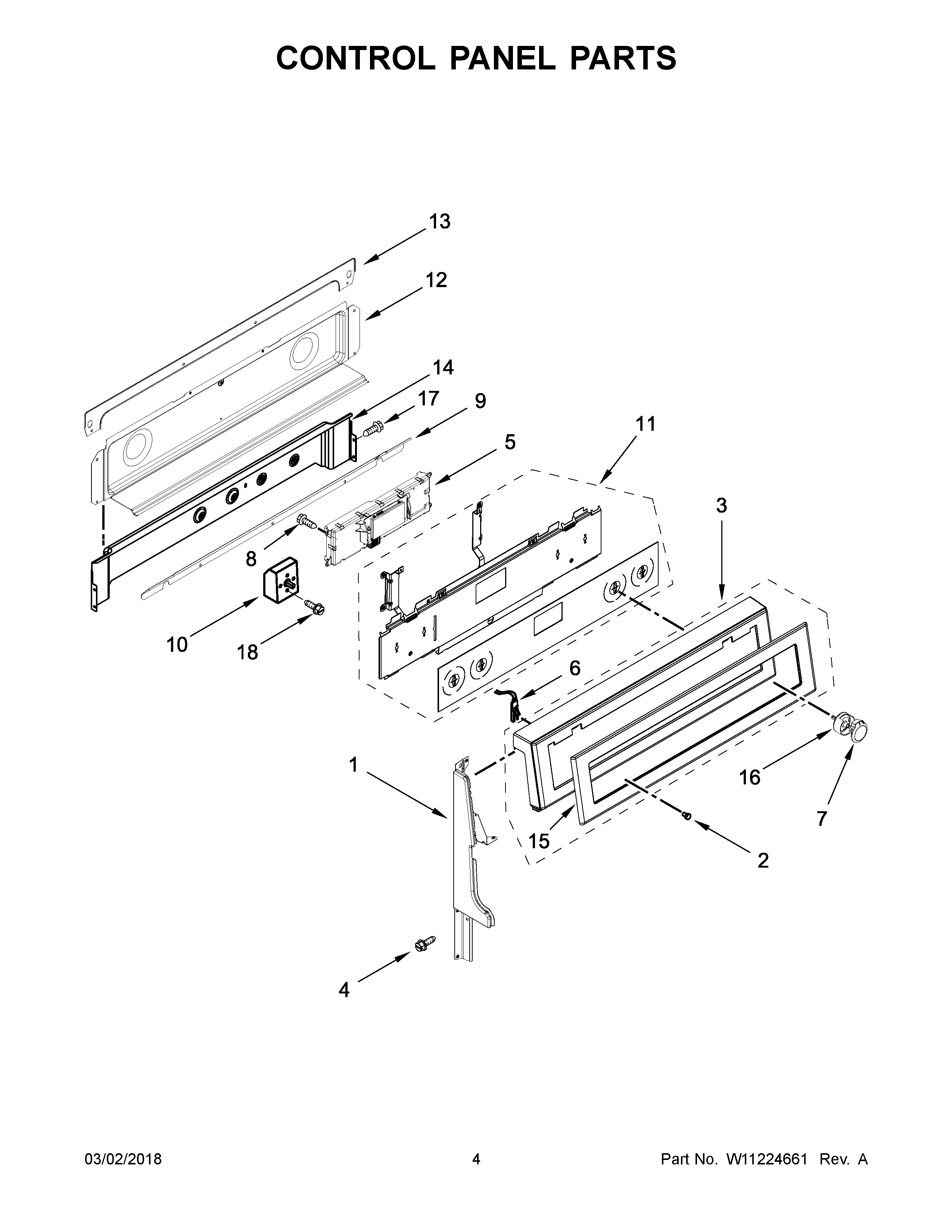

KFED500EBL03 03 – CONTROL PANEL PARTS

KFED500EBL03 03 – CONTROL PANEL PARTS

Written by

in

KFED500EBL03 03 – CONTROL PANEL PARTS

Products

PositionProduct
1BW10319110 Whirlpool Endcap Panel
1CW10319112 Whirlpool Panel Endcap
1ASUPPORT, BACK GUARD (RIGHT HAND)
1W10319109 Whirlpool Endcap Panel
2WP3196068 Whirlpool Light Lens
3W10645846 Whirlpool Control Panel
3BW11164063 Whirlpool Control Panel
3AW10645847 Whirlpool Control Panel
4SCREW (BLACK)
5WPW10778305-includeCORE Whirlpool WPW10778305 Refrigerator Electronic Control Board + Core
6Light, Indicator
7KNOB
8SCREW
10WPW10296657 Whirlpool Infinite Switch (Left Front)
10BWPW10312185 Whirlpool Infinite Switch
10AWPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
10CSWITCH, INFINITE (RIGHT REAR)
11AW10645824 Whirlpool Dishwasher Control Panel
11W10692155 Whirlpool Control Panel
12W10776098 Whirlpool Rear Cover
13WPW10292689 Whirlpool Wire Cover
14W10278697 Whirlpool Vent Shield Assembly
15CABINET (NOT A SERVICEABLE PART)
16W11368920 Whirlpool Knob Bezel
17W11245710 Whirlpool Refrigerator Screw
18W10674068 Whirlpool Screw
