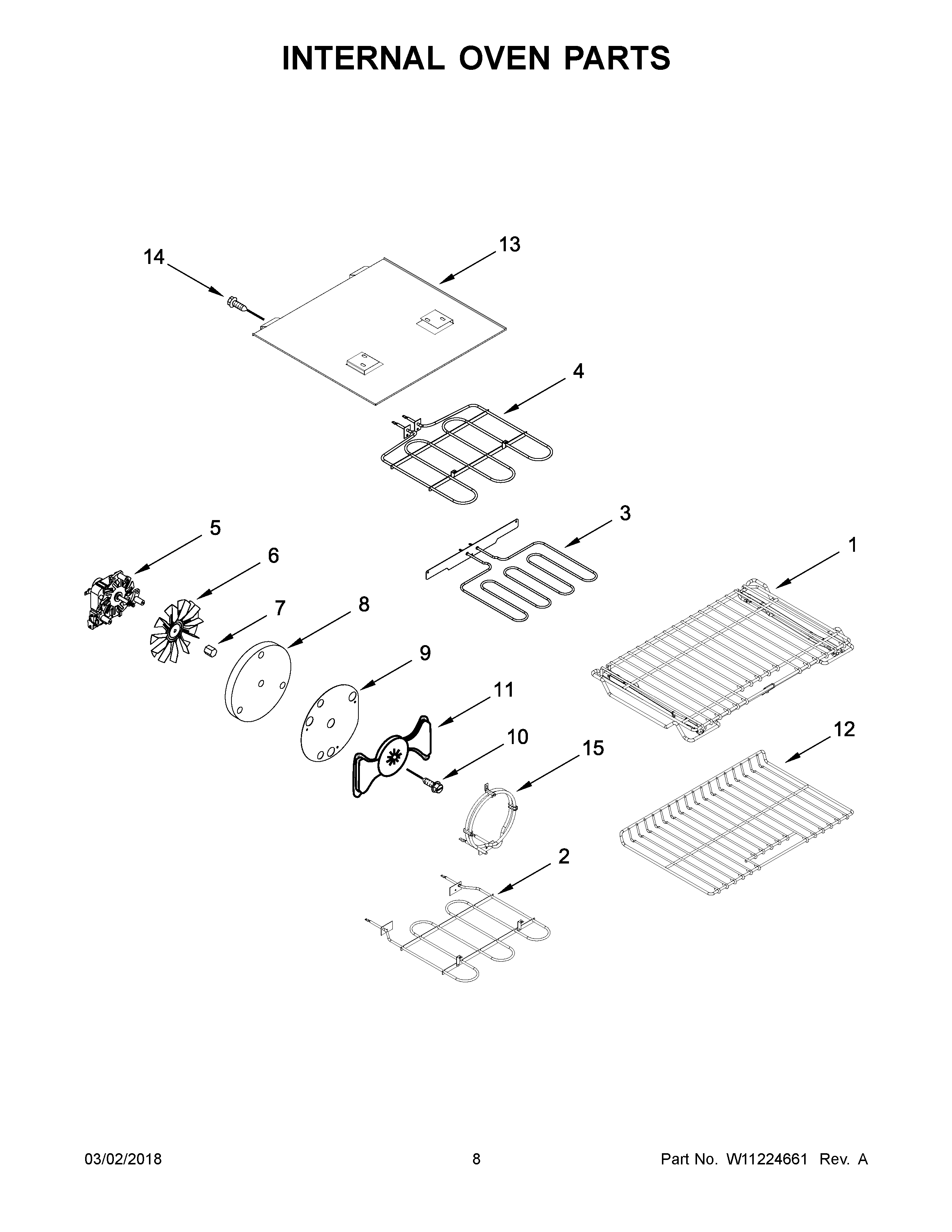

KFED500EBL03 05 – INTERNAL OVEN PARTS

KFED500EBL03 05 – INTERNAL OVEN PARTS

Written by

in

KFED500EBL03 05 – INTERNAL OVEN PARTS

Products

PositionProduct
1WPW10570870 Whirlpool Oven Rack
2W11101534 Whirlpool Range Broil Element
3W11662148 Whirlpool Bake Element
4W10317476 Whirlpool Broil Element
5W11235883 Whirlpool Fan Motor
6W10819914 Whirlpool Convection Fan
7W10794042 Whirlpool Nut
8W10274268 Whirlpool Insulation
9W10339476 Whirlpool Bracket Mounting
10W10850807 Whirlpool Screw
118303962BU Whirlpool Convection Baffle
12W11550107 Whirlpool Oven Rack
13W10319762 Whirlpool Heat Shield
14SCREW
15W10271639 Whirlpool Element
