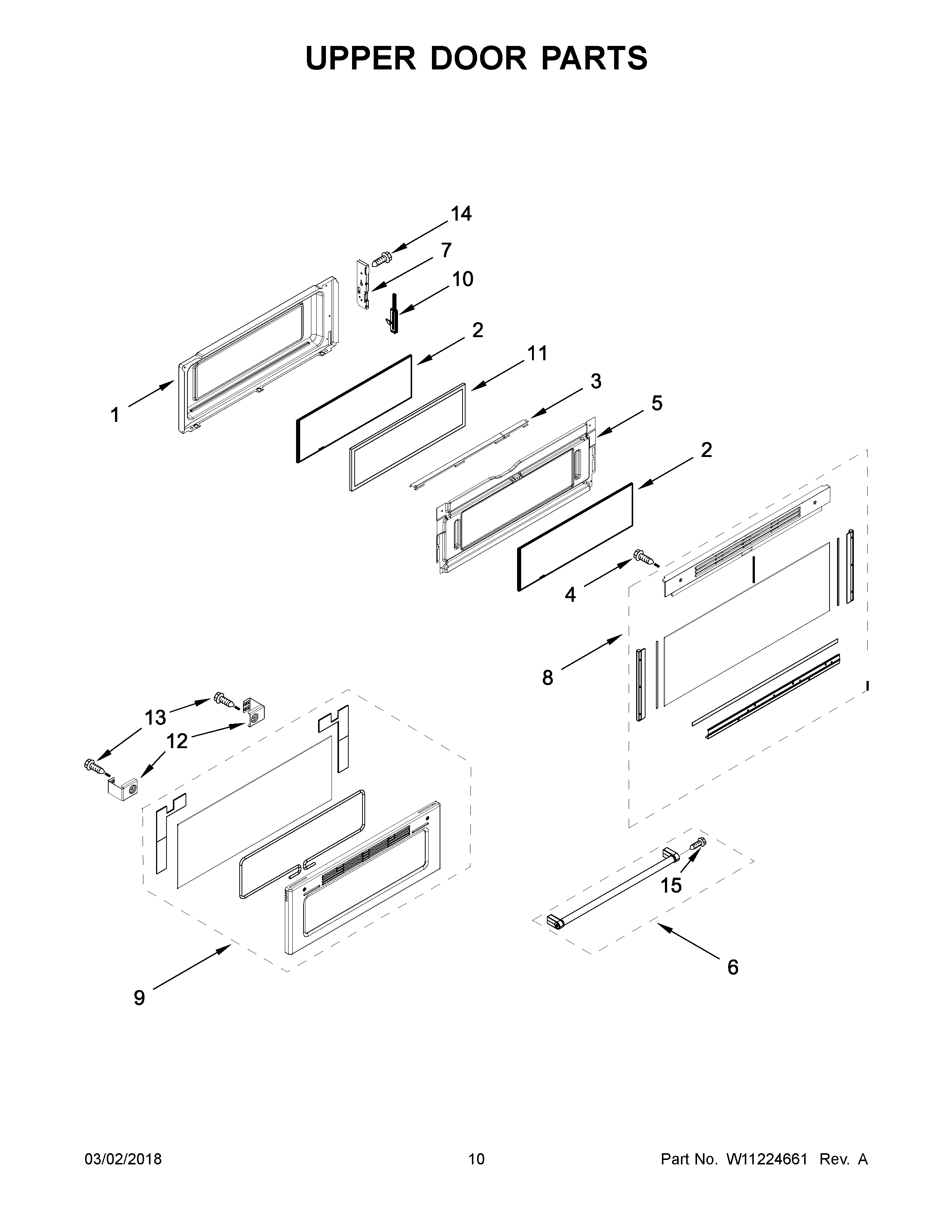

KFED500EBL03 06 – UPPER DOOR PARTS

Products

Position	Product
1	W11103615 Whirlpool Door Liner
2	W11132120 Whirlpool Glass Door
3	WPW10272708 Whirlpool Window Frame
4	W11690596 Whirlpool Screw
5	W10485723 Whirlpool Retainer
6	W10674700 Whirlpool Door Handle
6A	W10674699 Whirlpool Door Handle
6B	W11305108 Whirlpool Door Handle
7	W10647259 Whirlpool Hinge Receiver
8A	W10789063 Whirlpool Door Glass
8	W10789064 Whirlpool Door Glass
9	W10777615 Whirlpool Door Glass Assembly
10	WPW10485733 Whirlpool Door Hinge
10A	WPW10485732 Whirlpool Door Hinge
11	WPW10321271 Whirlpool Insulation Assembly
12	W10645182 Whirlpool Mounting Bracket
13	W10831019 Whirlpool Stove Door Screw
14	W10777162 Whirlpool Screw
15	W10920281 Whirlpool Screw
