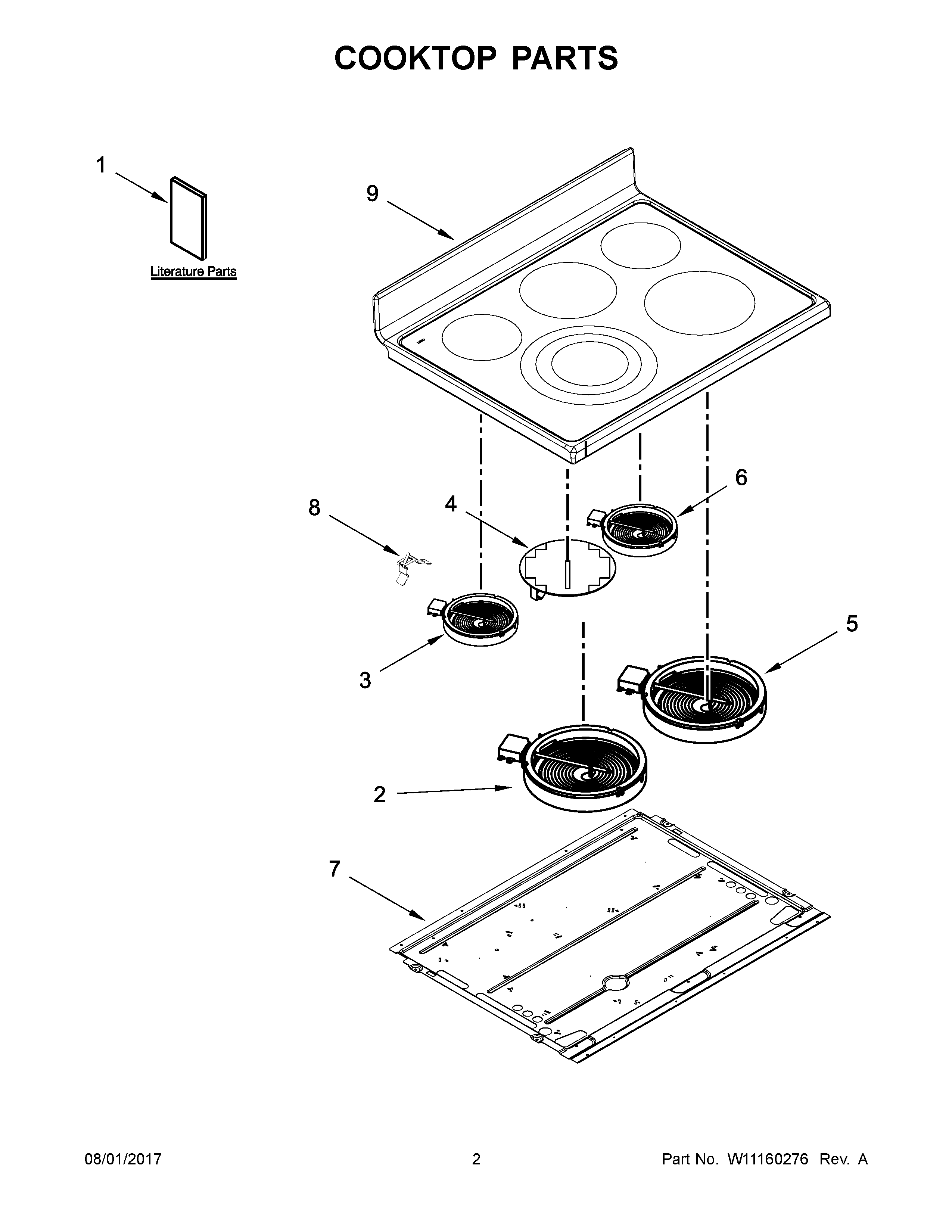

KFED500EBS00 02 – COOKTOP PARTS

KFED500EBS00 02 – COOKTOP PARTS

Written by

in

KFED500EBS00 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11171874 Whirlpool Wire Harness
NIW10406512 Whirlpool Refrigerator Infinite Switch Wire Harness (Left)
NIW11172428 Whirlpool Wire Harness
NIW11172427 Whirlpool Wire Harness
NIW11172531 Whirlpool Wire Harness
NIWIRING HARNESS PARTS, BLOCK, BARE WIRE ADAPTER
NIWIRING HARNESS PARTS, SCREW, GROUND
NIW11171888 Whirlpool Wire Harness
NIWPL 8019P01360
1BSHEET, TECH
1CSAFER COOKING TIPS (ENGLISH
1DSafer Cooking Tips (French)
1AINSTRUCTIONS, INSTALLATION
1GUIDE, USE & CARE
2W11101459 Whirlpool Surface Element
3WPW10270604 Whirlpool Surface Element
4W11041453 Whirlpool Surface Element
5WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
6ELMNT-SURF
7WPW10260946 Whirlpool Panel
8WPW10225448 Whirlpool Spring Assembly
9W10789672 Whirlpool Cooktop
