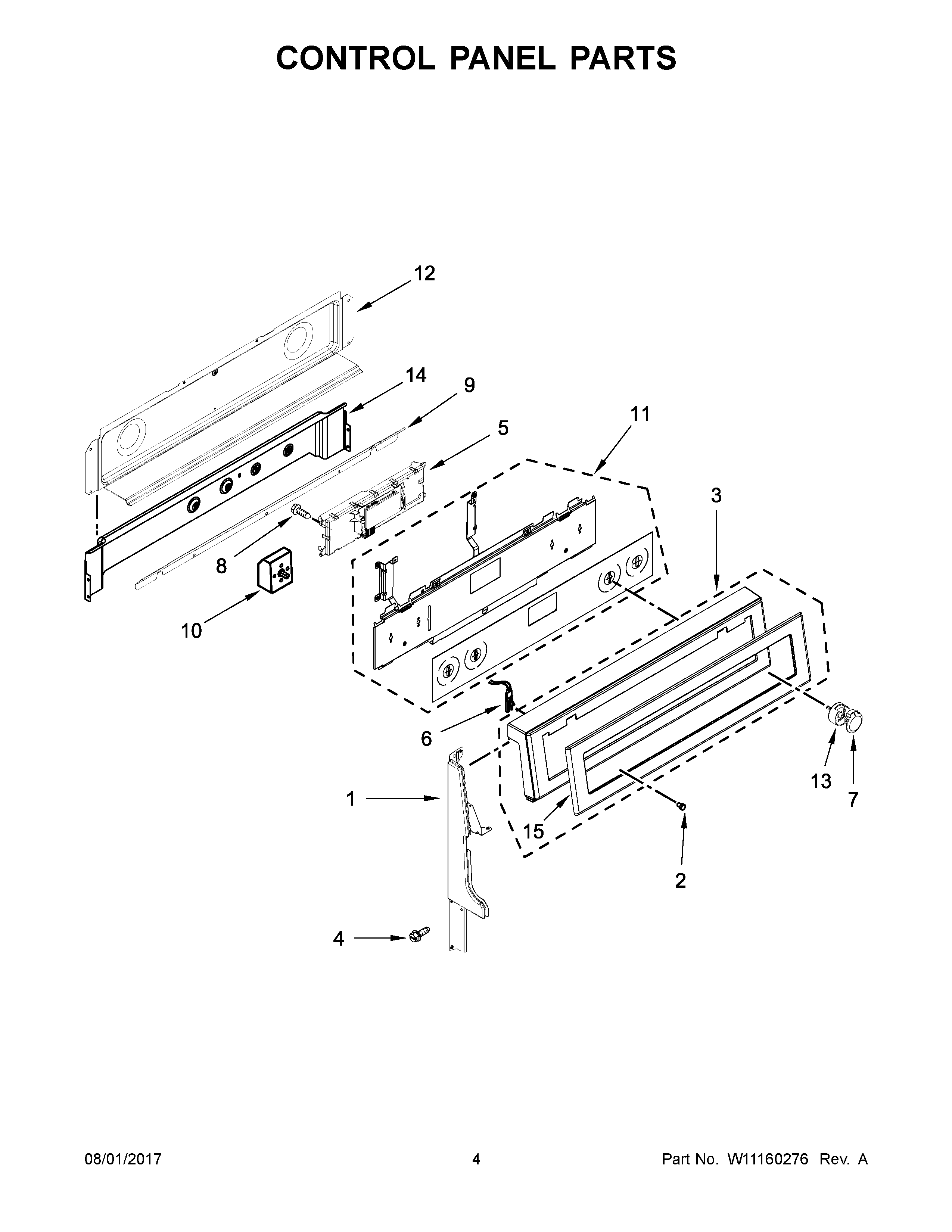

KFED500EBS00 03 – CONTROL PANEL PARTS

KFED500EBS00 03 – CONTROL PANEL PARTS

Written by

in

KFED500EBS00 03 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11156486-includeCORE Whirlpool W11156486 Washer Electronic Control Board + Core
1ASUPPORT, BACK GUARD (RIGHT HAND)
1W10319109 Whirlpool Endcap Panel
2WP3196068 Whirlpool Light Lens
3W11084228 Whirlpool Control Panel
4SCREW (BLACK)
6Light, Indicator
7KNOB
8SCREW
10WPW10296657 Whirlpool Infinite Switch (Left Front)
10CSWITCH, INFINITE (RIGHT REAR)
10BWPW10441696 Infinite Switch (Right) Front)
10AWPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
11W10692155 Whirlpool Control Panel
12W10776098 Whirlpool Rear Cover
13W11368920 Whirlpool Knob Bezel
14W10278697 Whirlpool Vent Shield Assembly
15CABINET (NOT A SERVICEABLE PART)
