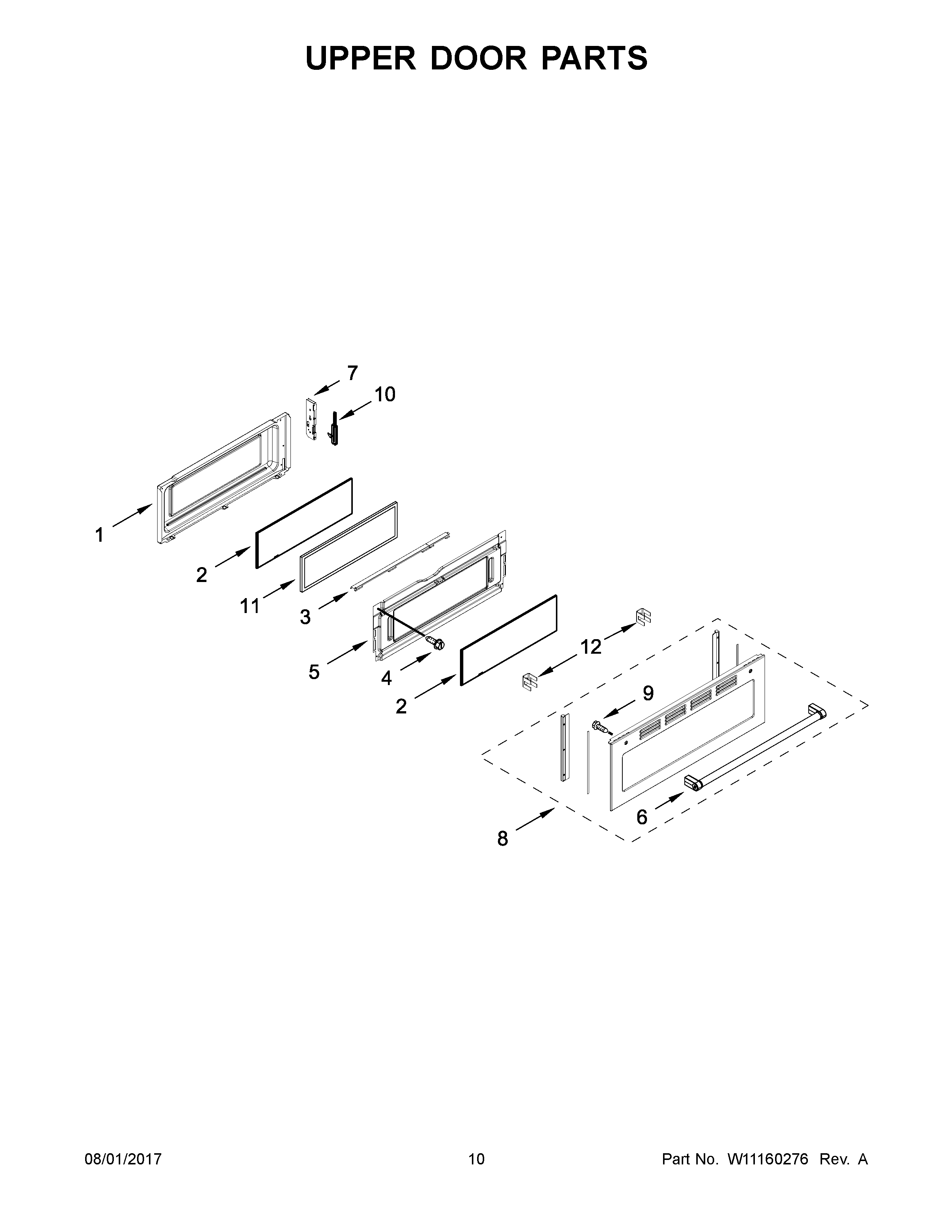

KFED500EBS00 06 – UPPER DOOR PARTS

KFED500EBS00 06 – UPPER DOOR PARTS

Written by

in

KFED500EBS00 06 – UPPER DOOR PARTS

Products

PositionProduct
1W11051040 Whirlpool Door Liner
2W11132120 Whirlpool Glass Door
3WPW10272708 Whirlpool Window Frame
4WPW10292297 Whirlpool Screw
5W10485723 Whirlpool Retainer
6W10674700 Whirlpool Door Handle
7W10647259 Whirlpool Hinge Receiver
8W11156495 Whirlpool Door Glass
9W10831019 Whirlpool Stove Door Screw
10AWPW10485732 Whirlpool Door Hinge
10WPW10485733 Whirlpool Door Hinge
11WPW10321271 Whirlpool Insulation Assembly
12W10575917 Whirlpool Spacer
