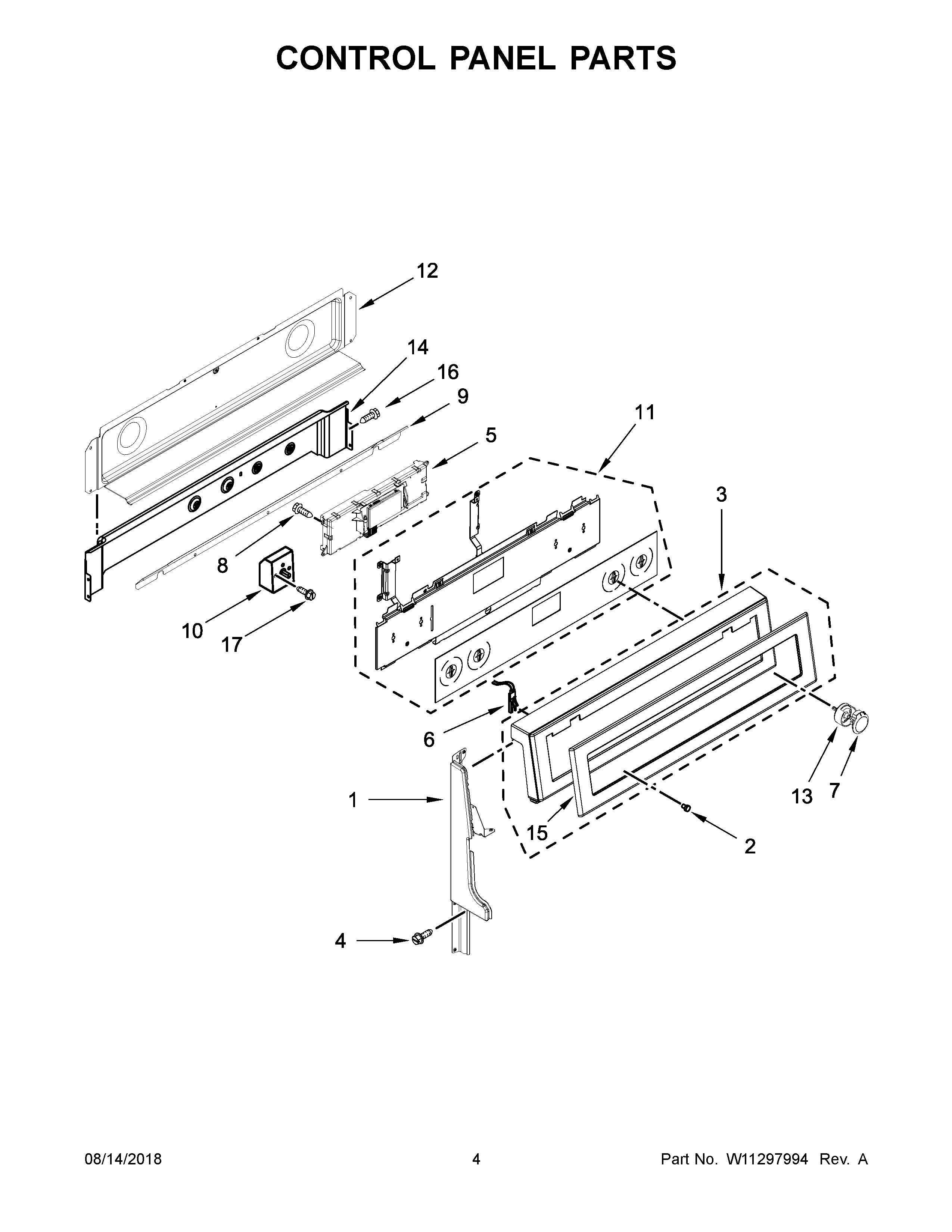

KFED500EBS03 03 – CONTROL PANEL PARTS

Products

PositionProduct
1ASUPPORT, BACK GUARD (RIGHT HAND)
1W10319109 Whirlpool Endcap Panel
2WP3196068 Whirlpool Light Lens
3W11084228 Whirlpool Control Panel
4SCREW (BLACK)
5W11156486-includeCORE Whirlpool W11156486 Washer Electronic Control Board + Core
6Light, Indicator
7KNOB
8SCREW
10CSWITCH, INFINITE (RIGHT REAR)
10AWPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
10WPW10296657 Whirlpool Infinite Switch (Left Front)
10BWPW10312185 Whirlpool Infinite Switch
11W10692155 Whirlpool Control Panel
12W10776098 Whirlpool Rear Cover
13W11368920 Whirlpool Knob Bezel
14W10278697 Whirlpool Vent Shield Assembly
15CABINET (NOT A SERVICEABLE PART)
16W11245710 Whirlpool Refrigerator Screw
17W10674068 Whirlpool Screw
