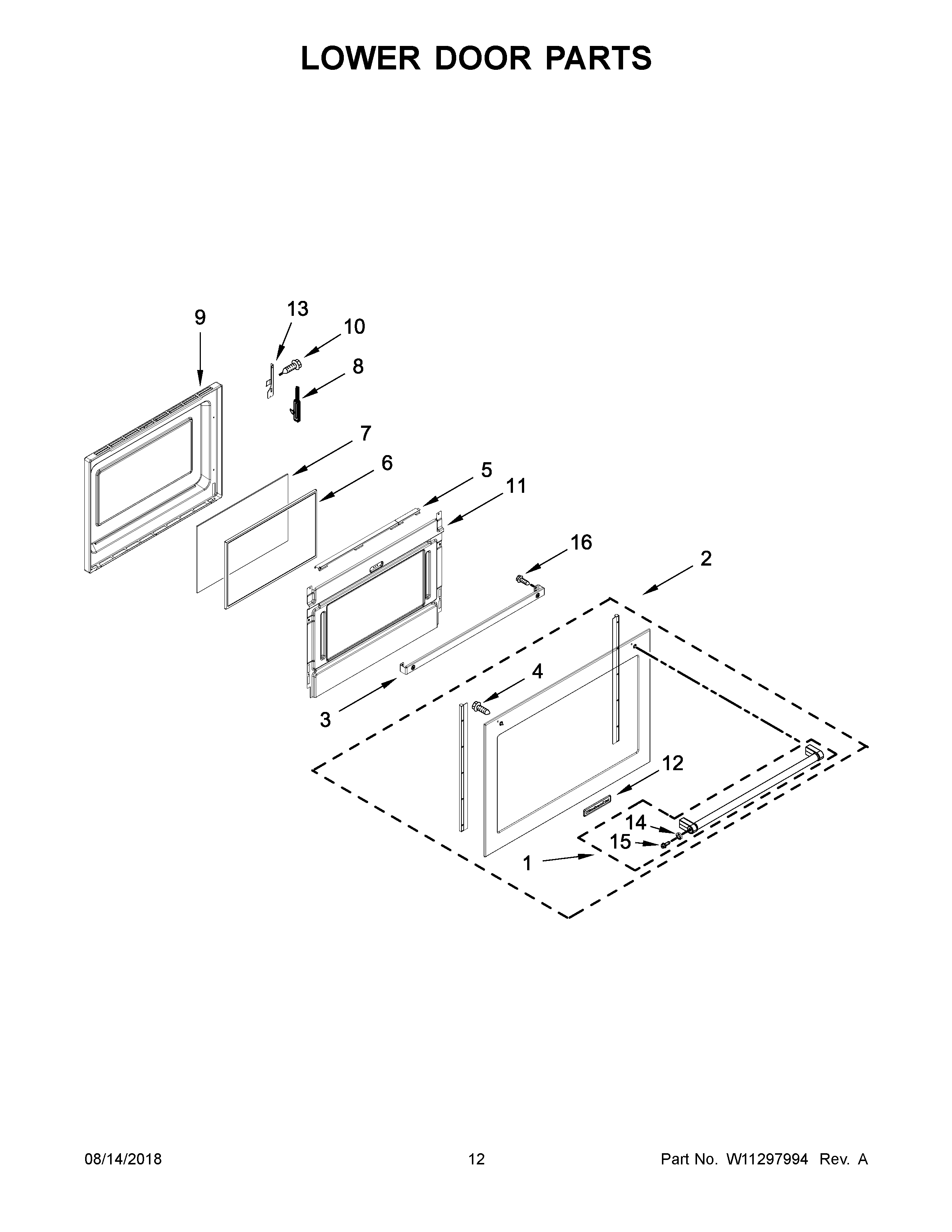

KFED500EBS03 07 – LOWER DOOR PARTS

Products

Position	Product
1	W10674700 Whirlpool Door Handle
2	W11156497 Whirlpool Door Glass
3	W10575689 Whirlpool Mounting Bracket
4	W10831019 Whirlpool Stove Door Screw
5	WPW10272594 Whirlpool Window Frame
6	INSULATION, DOOR
7	WP9757706 Whirlpool Door Inner Glass
8A	WPW10335433 Whirlpool Door Hinge
8	WPW10335434 Whirlpool Door Hinge
9	WPW10272698 Whirlpool Dishwasher Door Liner
10	Screw
11	W10340464 Whirlpool Retainer
12	W10839793 Whirlpool Refrigerator Nameplate
13	WPW10272329 Whirlpool Hinge Receptacle
13A	WPW10272328 Whirlpool Hinge Receptacle
14	W10846207 Whirlpool KA Handle MEDALLIONS-RED
15	W10920281 Whirlpool Screw
16	W11690596 Whirlpool Screw
